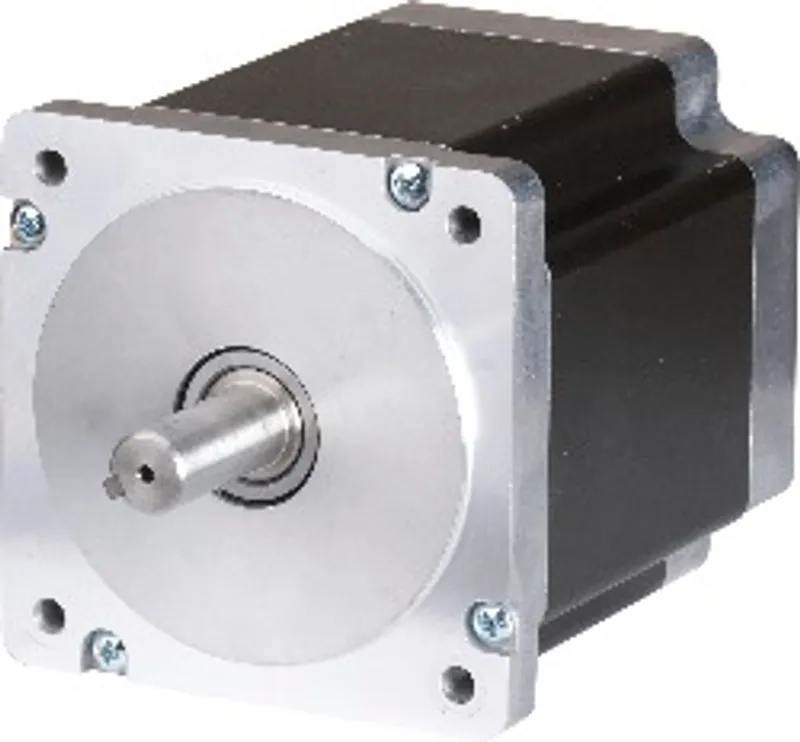

B&R 80MPH4.500S000-01
2-phase hybrid stepper motor, 87.1 mm flange, length 98 mm
- MPN
- 80MPH4.500S000-01
- Category
- Stepper motors without encoder
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPH4.500S000-01?
2-phase hybrid stepper motor, 87.1 mm flange, length 98 mm, 5 A serial / 10 A parallel, 9.5 Nm holding torque, 6.3 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 87.1 mm, length 98 mm |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cURus E136406; Incomplete rotating machines and rotating machine parts - Component |
Specific motor data
| Wiring – Serial | true |
| Wiring – Parallel | true |
| Current – Series wiring | 5 A |
| Current – Parallel wiring | 10 A |
| Resistance/Phase – Series wiring | 0.9 Ω |
| Resistance/Phase – Parallel wiring | 0.2 Ω |
| Inductance/Phase – Series wiring | 5.6 mH |
| Inductance/Phase – Parallel wiring | 1.4 mH |
| Stall torque | 6.3 Nm |
| Holding torque | 9.5 Nm |
| Detent torque | <320 mNm |
| Rotor inertia | Approx. 2.61 kgcm 2 |
General motor data
| Protection class | IP40 |
| Stepping angle | 1.8° |
| Max. surface temperature | 100°C |
| Average period of operation between failures | 20,000 hours |
| Cable length | 300 mm |
| Cable cross section | 22 AWG, UL 3266 |
| Shaft type | With key |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 1776 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Max. radial load | 290 N (note: Measured in the middle of the shaft) |
| Max. axial load | 225 N |
| Weight | 3.0 kg |
| Length | 98 mm |
Accessories
Optional accessories (1)
| 80XMPHXRE.W1-10 | Accessories — IP expansion and wiring clamp for stepper motors in the 80MPH series, IP65, 10 units per package |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
80MPH4.500S000-01: frequently asked questions
When can 80MPH4.500S000-01 be shipped?
80MPH4.500S000-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80MPH4.500S000-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80MPH4.500S000-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80MPH4.500S000-01, subject to availability and destination.
