Digital output modules Parts
Compare Digital output modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | HW functional status | Color code for module-specific color-coded label | Current consumption, max. | Short-circuit protection — Response threshold, typ. |
|---|---|---|---|---|---|
| 6ES7132-6BH01-0BA0 | DQ 16x24VDC/0.5 ST | from FS21 | CC00 | 30 mA; without load | 1 A; 0.7 to 1.3 A |

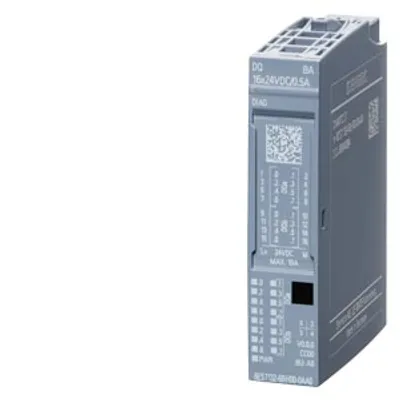

| 6ES7132-6BH00-2AA0 | DQ 16x24VDC/0.5A BA | From FS03 | CC00 | 55 mA; without load | 1.4 A; 0.7 to 1.9 A |

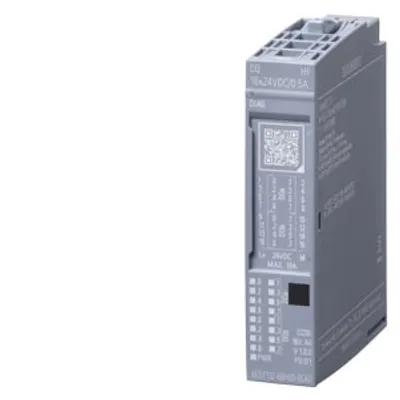

| 6ES7132-6BH00-0CA0 | DQ 16x24VDC/0.5A HF | 01 | CC00 | 20 mA; without load | 0.7 to 1.3 A |
| 6ES7132-6BH00-0AA0 | DQ 16x24VDC/0.5A BA | From FS03 | CC00 | 55 mA; without load | 1.4 A; 0.7 to 1.9 A |

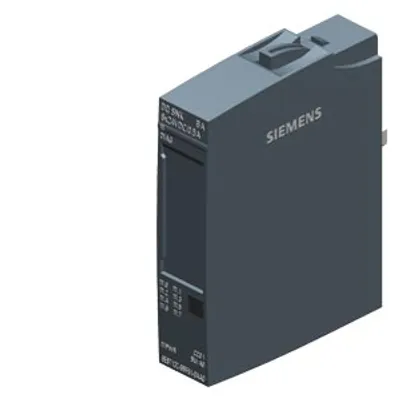

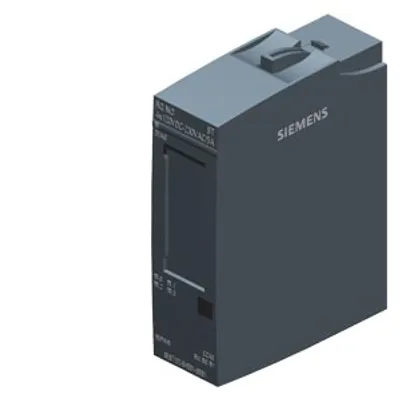

| 6ES7132-6BF61-0AA0 | DQ 8x24VDC/0,5A SNK BA | From FS02 | CC01 | 30 mA | 1.5 A |
| 6ES7132-6HD01-2BB1 | RQ 4x120 VDC ... 230 VAC/5 A NO ST | From FS02 | CC40 | — | — |

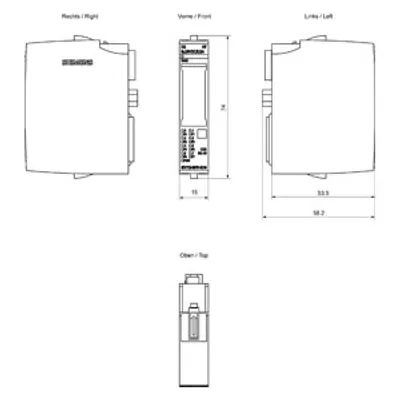

| 6ES7132-6BF01-2CA0 | DQ 8x24VDC/0,5A HF | 01 | CC02 | 20 mA; without load | 0.7 to 1.3 A |
| 6ES7132-6BF01-2BA0 | DQ 8x24VDC/0.5A ST | from FS21 | CC02 | 20 mA; without load | 1 A; 0.7 to 1.3 A |
| 6ES7132-6BF01-0AA0 | DQ 8x24VDC/0.5A BA | From FS02 | CC02 | 45 mA; without load | 1 A |

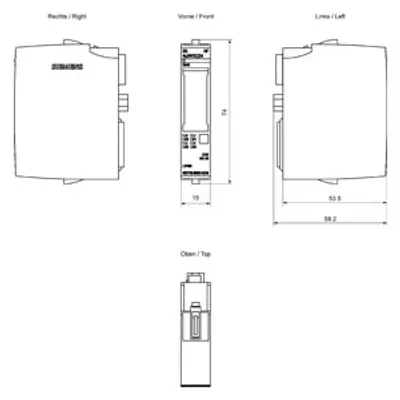

| 6ES7132-6BD21-2BA0 | DQ 4x24VDC/2A ST | 01 | CC02 | 20 mA; without load | 2.8 to 5.2 A |

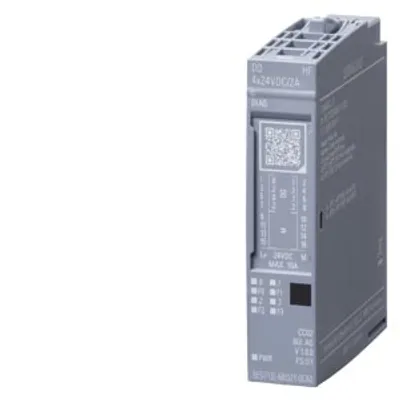

| 6ES7132-6BD21-0CA0 | DQ 4x24VDC/2A HF | 01 | CC02 | 20 mA; without load | 2.8 to 5.2 A |

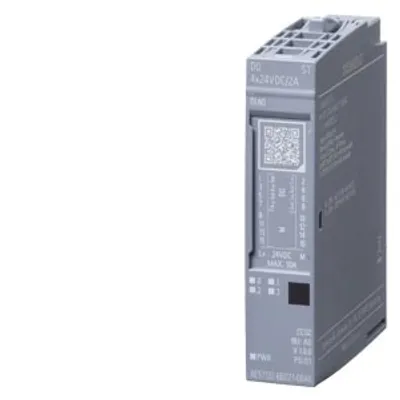

| 6ES7132-6BD21-0BA0 | DQ 4x24VDC/2A ST | 01 | CC02 | 20 mA; without load | 2.8 to 5.2 A |

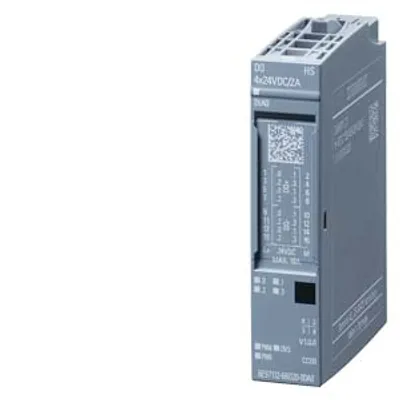

| 6ES7132-6BD20-0DA0 | DQ 4x24 V DC/2 A HS | From FS05 | CC00 | 50 mA; without load | 6 A |
Common to all listed parts
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Operating mode — DQ | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Automatic encoding | Yes |
| Automatic encoding — Mechanical coding element | Yes |
| Digital outputs, parameterizable | Yes |
