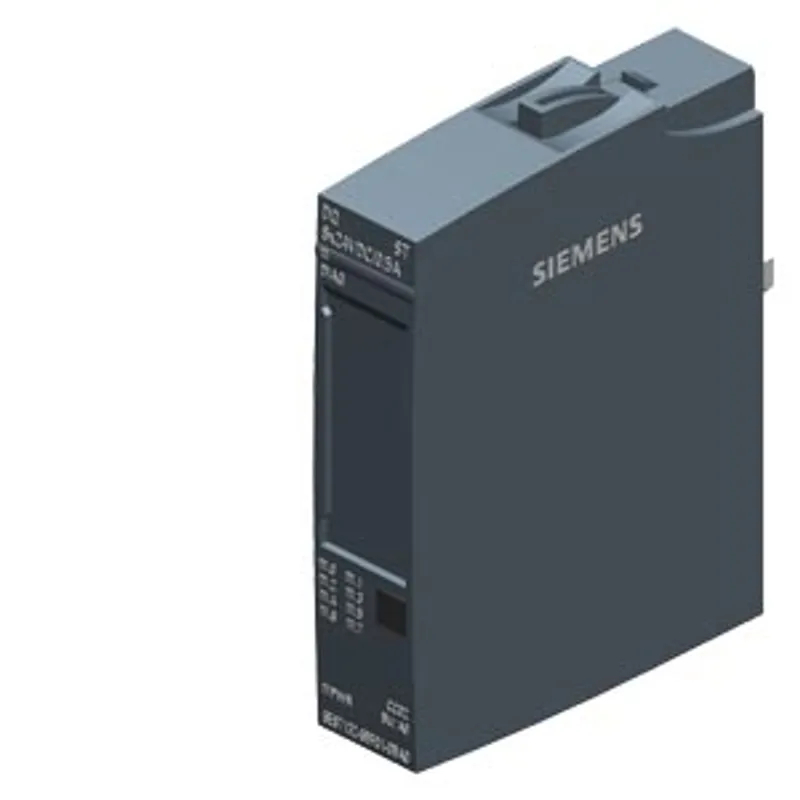

Siemens 6ES7132-6BF01-2BA0

SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A Standard, Source output

MPN: 6ES7132-6BF01-2BA0
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7132-6BF01-2BA0?

SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A Standard, Source output (PNP,P-switching) Packing unit: 10 pieces, fits to BU-type A0, Colour Code CC02, aubstitute value output, module diagnostics for: short-circuit to L+ and ground, wire break, supply voltage

Specifications

General information

Product type designation	DQ 8x24VDC/0.5A ST
HW functional status	from FS21
Firmware version	V0.0
Firmware version — FW update possible	No
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC02
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 TIA V14 with HSP0222 / integrated as of TIA V15
Engineering with — STEP 7 configurable/integrated from version	V5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1
Engineering with — PCS 7 configurable/integrated from version	V8.1 SP1
Engineering with — PROFIBUS from GSD version/GSD revision	One GSD file each, Revision 3 and 5 and higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Operating mode — MSO	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

20 mA; without load

Output voltage

Rated value (DC)

24 V

Power loss

Power loss, typ.

1 W

Address area

Address space per module — Address space per module, max.

1 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A
Selection of BaseUnit for connection variants — 1-wire connection	BU type A0
Selection of BaseUnit for connection variants — 2-wire connection	BU type A0
Selection of BaseUnit for connection variants — 3-wire connection	BU type A0 with AUX terminals or potential distributor module
Selection of BaseUnit for connection variants — 4-wire connection	BU type A0 + Potential distributor module

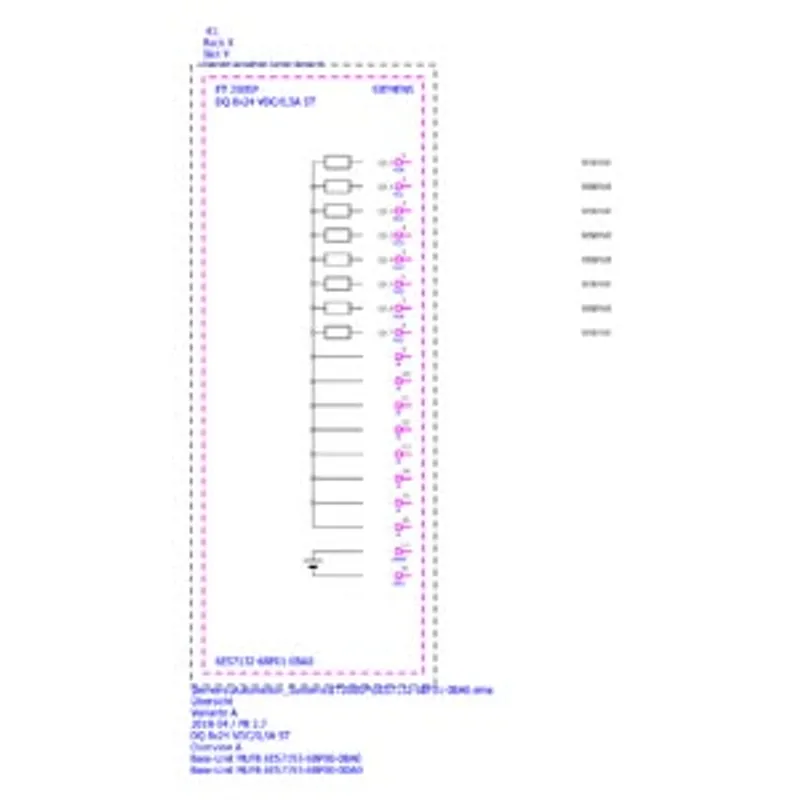

Digital outputs

Type of digital output	Source output (PNP, current-sourcing)
Number of digital outputs	8
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
output type acc. to IEC 61131, type 0.5	Yes
Short-circuit protection	Yes; Electronic
Short-circuit protection — Response threshold, typ.	1 A; 0.7 to 1.3 A
Open-circuit detection	Yes
Limitation of inductive shutdown voltage to	Typ. L+ (-50 V)
Controlling a digital input	Yes
Switching capacity of the outputs — with resistive load, max.	0.5 A
Switching capacity of the outputs — with inductive load, max.	0.5 A
Switching capacity of the outputs — on lamp load, max.	5 W
Load resistance range — lower limit	48 Ω
Load resistance range — upper limit	12 kΩ
Output current — for signal "1" rated value	0.5 A
Output current — for signal "1" permissible range, max.	0.5 A
Output current — for signal "0" residual current, max.	0.1 mA
Output delay with resistive load — "0" to "1", max.	50 µs; at rated load
Output delay with resistive load — "1" to "0", max.	100 µs; at rated load
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads"
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs — Current per channel, max.	0.5 A
Total current of the outputs — Current per module, max.	4 A
Total current of the outputs (per module) — horizontal installation — up to 60 °C, max.	4 A
Total current of the outputs (per module) — vertical installation — up to 50 °C, max.	4 A
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes; module-wise
Diagnoses — Short-circuit to ground	Yes; module-wise
Diagnoses — Short-circuit to L+	Yes; module-wise
Diagnoses — Group error	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green PWR LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green PWR LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Suitable for safety-related tripping of standard modules	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	20.4 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.16 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	17.5 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.221 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C; < 0 °C as of FS02
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C; < 0 °C as of FS02
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

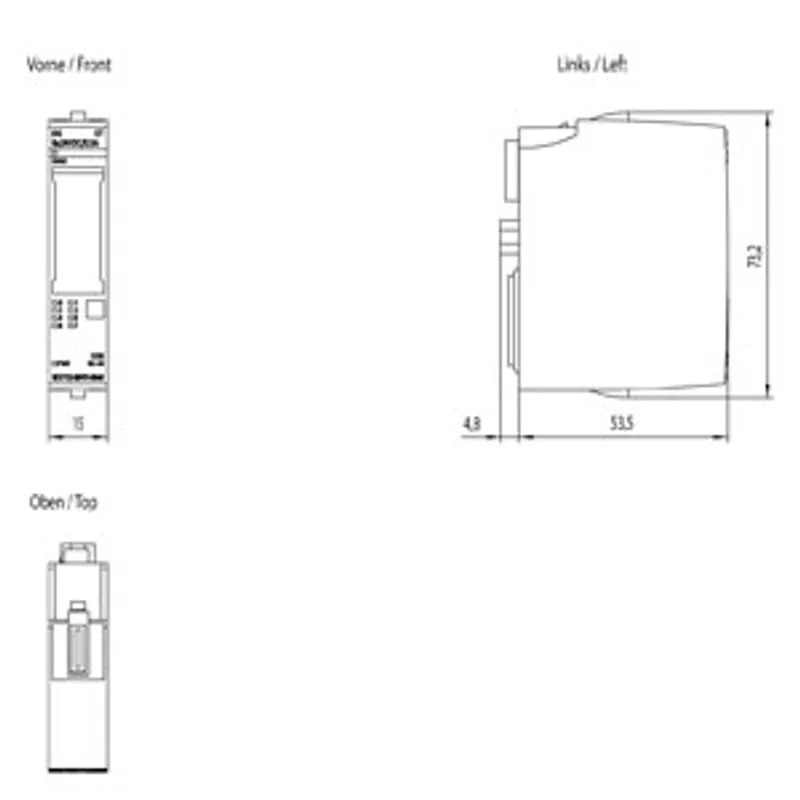

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

30 g
