Siemens 6ES7132-6BF61-0AA0

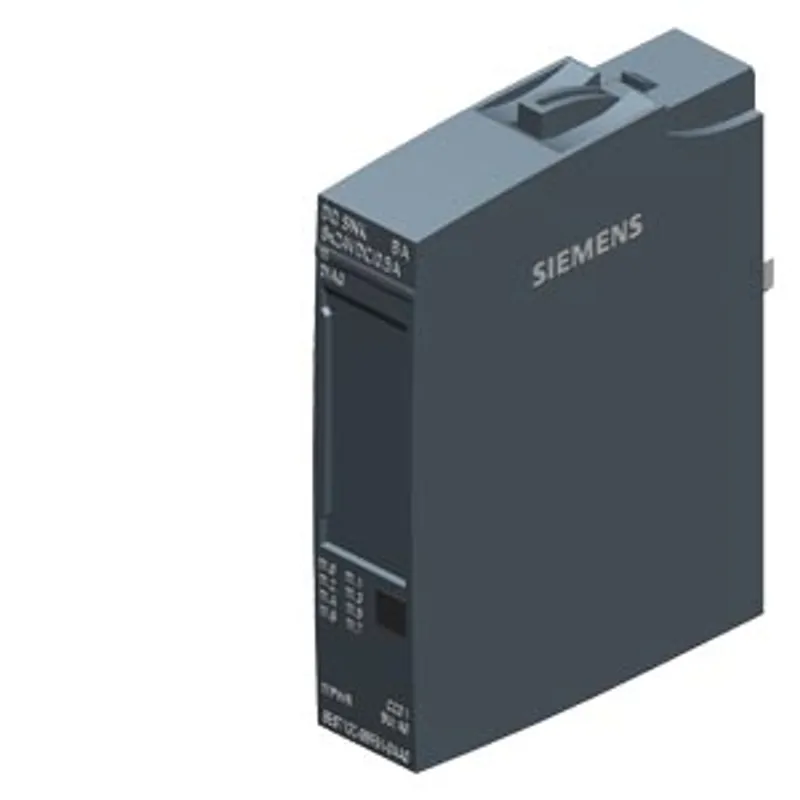

SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A Sink Basic, Sink output (NPN, M-switching)
- MPN
- 6ES7132-6BF61-0AA0
- Category
- Digital output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7132-6BF61-0AA0?
SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A Sink Basic, Sink output (NPN, M-switching), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, substitute value output, module diagnostics for: supply voltage
Specifications
General information
| Product type designation | DQ 8x24VDC/0,5A SNK BA |
| HW functional status | From FS02 |
| Firmware version | V0.0 |
| Firmware version — FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V14 |
| Engineering with — STEP 7 configurable/integrated from version | V5.5 SP3 |
| Engineering with — PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode — DQ | Yes |
| Operating mode — DQ with energy-saving function | No |
| Operating mode — PWM | No |
| Operating mode — Oversampling | No |
| Operating mode — MSO | No |
| Redundancy — Redundancy capability | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 30 mA |
| Current consumption, max. | 30 mA |
Output voltage
| Rated value (DC) | 24 V |
Power loss
| Power loss, typ. | 1.5 W |
Address area
| Address space per module — Outputs | 1 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Mechanical coding element | Yes |
| Automatic encoding — Type of mechanical coding element | type B |

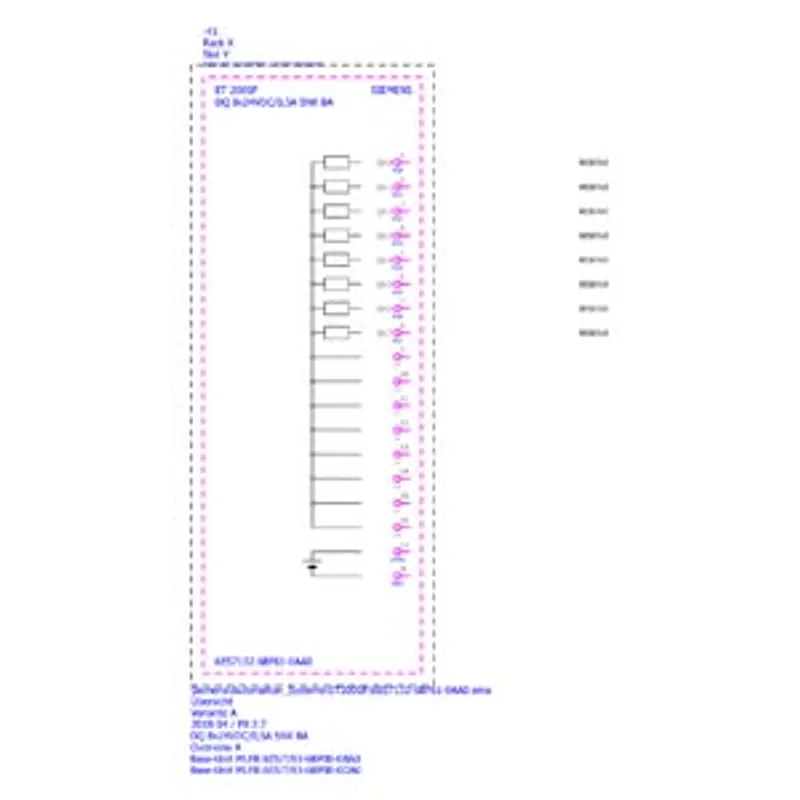

Digital outputs
| Type of digital output | Sink output (NPN) |
| Number of digital outputs | 8 |
| Current-sinking | Yes |
| Current-sourcing | No |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| Short-circuit protection — Response threshold, typ. | 1.5 A |
| Limitation of inductive shutdown voltage to | Typ. 47 V |
| Controlling a digital input | Yes |
| Switching capacity of the outputs — with resistive load, max. | 0.5 A |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Load resistance range — lower limit | 48 Ω |
| Load resistance range — upper limit | 3 400 Ω |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "1" permissible range, max. | 0.5 A |
| Output current — for signal "0" residual current, max. | 5 µA |
| Output delay with resistive load — "0" to "1", max. | 300 µs |
| Output delay with resistive load — "1" to "0", max. | 600 µs |
| Parallel switching of two outputs — for uprating | No |
| Parallel switching of two outputs — for redundant control of a load | Yes |
| Switching frequency — with resistive load, max. | 100 Hz |
| Switching frequency — with inductive load, max. | 0.5 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per channel, max. | 0.5 A |
| Total current of the outputs — Current per module, max. | 4 A |
| Total current of the outputs (per module) — horizontal installation — up to 60 °C, max. | 4 A |
| Total current of the outputs (per module) — vertical installation — up to 50 °C, max. | 4 A |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | No |
| Diagnoses — Short-circuit | No |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | No |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions | No |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 20.4 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 3.16 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 17.5 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.221 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -25 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -25 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity — dew point, min. | -60 °C; suitable for dry room applications |
Dimensions

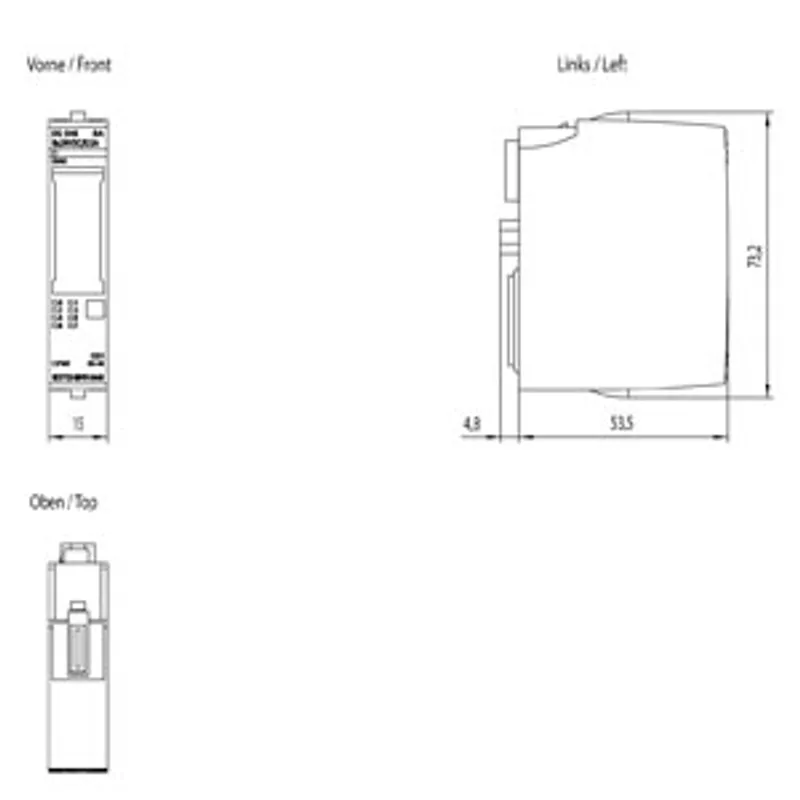

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 30 g |
