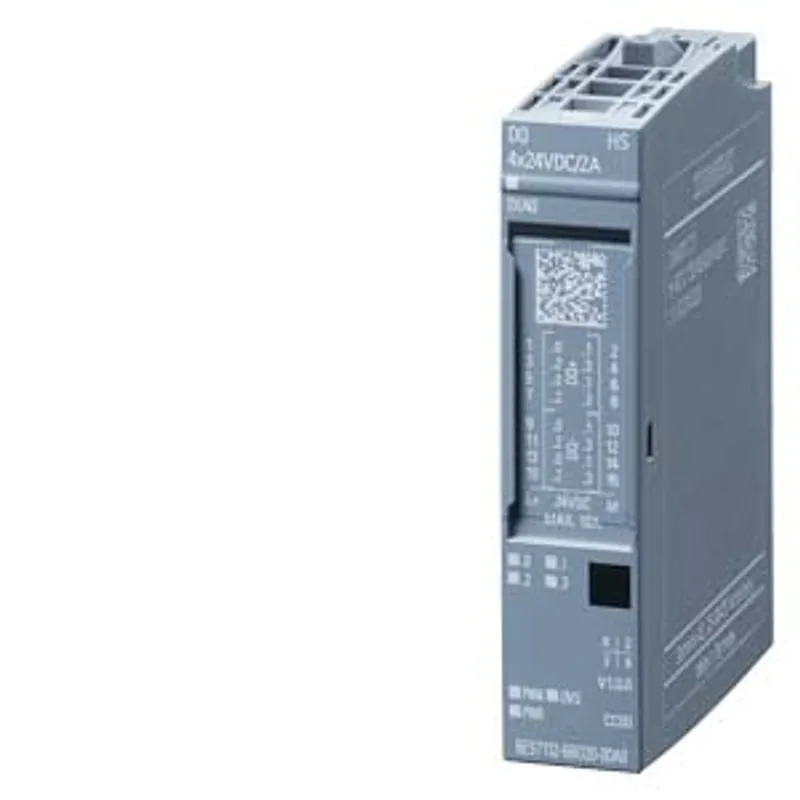

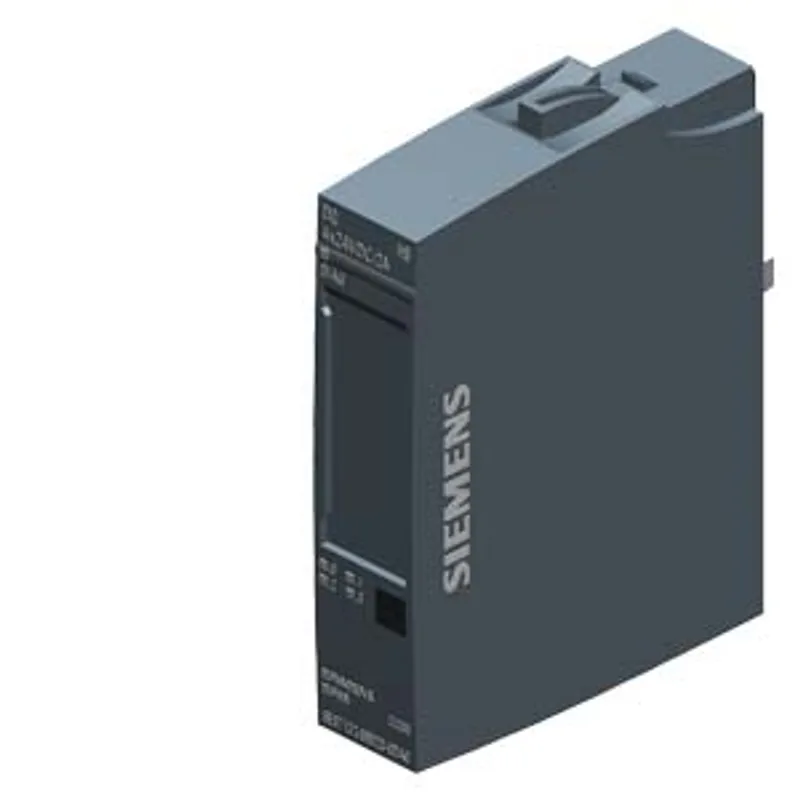

SIMATIC ET 200SP, digital output module, DQ 4x 24 V DC/2A High Speed

MPN: 6ES7132-6BD20-0DA0
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7132-6BD20-0DA0?

SIMATIC ET 200SP, digital output module, DQ 4x 24 V DC/2A High Speed, Pack quantity: 1 unit suitable for BU type A0, Color code CC00, 3 alternative operating modes: DQ, Oversampling, PWM Module diagnostics

Specifications

General information

Product type designation	DQ 4x24 V DC/2 A HS
HW functional status	From FS05
Firmware version — FW update possible	Yes
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	Yes; Operating modes DQ and OVS only
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 V15.1 or higher
Engineering with — STEP 7 configurable/integrated from version	via GSD as of V5.6 HF4
Engineering with — PROFIBUS from GSD version/GSD revision	One GSD file each, Revision 3 and 5 and higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.33
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	Yes; Valve control
Operating mode — PWM	Yes
Operating mode — Cam control (switching at comparison values)	Yes; Via MtM (module-to-module communication)
Operating mode — Oversampling	Yes
Operating mode — MSO	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

50 mA; without load

Output voltage

Rated value (DC)

24 V

Power loss

Power loss, typ.

2.5 W; at 24 V, 25 °C, DQ mode, 2 A per channel

Address area

Address space per module — Inputs	1 byte; Max. 14 bytes in the cam control operating mode
Address space per module — Outputs	1 byte; Max. 16 bytes in the oversampling operating mode

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A

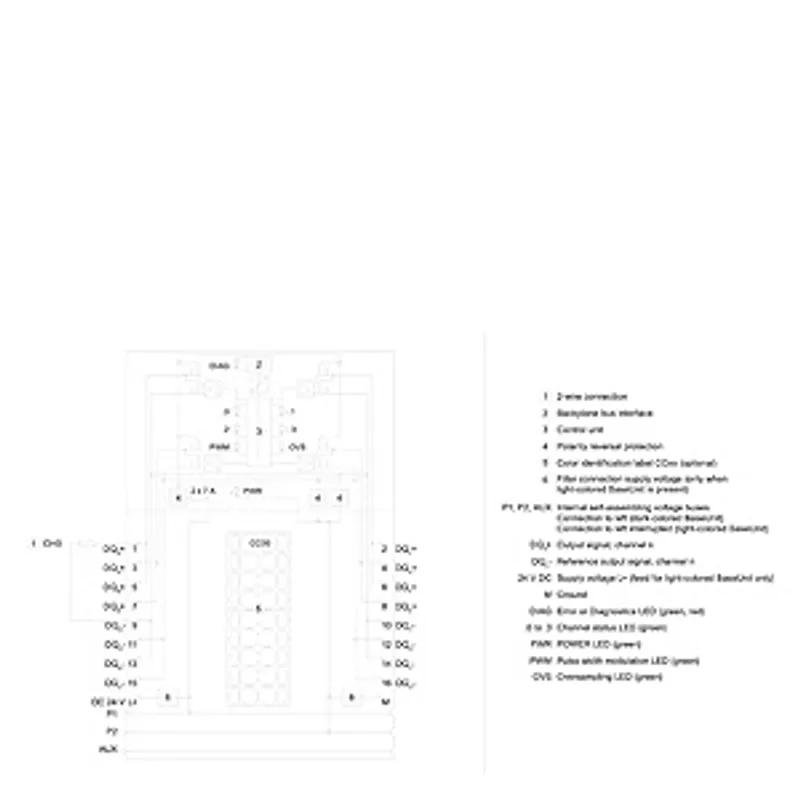

Selection of BaseUnit for connection variants — 2-wire connection	BU type A0
Selection of BaseUnit for connection variants — 3-wire connection	BU type A0 with AUX terminals or potential distributor module
Selection of BaseUnit for connection variants — 4-wire connection	BU type A0 + Potential distributor module

Digital outputs

Type of digital output	Source output (PNP, current-sourcing)
Number of digital outputs	4
Current-sinking	No
Current-sourcing	Yes; Push-pull output
Digital outputs, parameterizable	Yes
Short-circuit protection	Yes
Short-circuit protection — Response threshold, typ.	6 A
Limitation of inductive shutdown voltage to	M (-1 V)
Controlling a digital input	No
Digital output functions, parameterizable — Switching tripped by comparison values	Yes
Digital output functions, parameterizable — Switching tripped by comparison values — Number of cam tracks, max.	4
Digital output functions, parameterizable — Switching tripped by comparison values — Number of cams per module, max.	16
Digital output functions, parameterizable — Switching tripped by comparison values — Number of cams per track, max.	16
Digital output functions, parameterizable — Switching tripped by comparison values — Supported axis types	Linear axes and rotary axes with modulo function
Digital output functions, parameterizable — Switching tripped by comparison values — Hysteresis	Yes
Digital output functions, parameterizable — Switching tripped by comparison values — Pulsed cam output	Yes
Digital output functions, parameterizable — Switching tripped by comparison values — Range of values for comparison values, max.	-2,147,483,648 to 2,147,483,647 (user-specific within this range)
Digital output functions, parameterizable — Freely usable digital output	Yes
Digital output functions, parameterizable — PWM output	Yes
Digital output functions, parameterizable — PWM output — Number, max.	4
Digital output functions, parameterizable — PWM output — Cycle duration, parameterizable	Yes; 0 ms, 0.2 ms, 0.4 ms, 0.93 ms, 1.33 ms, 4.27 ms, 10.67 ms, 21.33 ms, 34.13 ms, 59.73 ms
Digital output functions, parameterizable — PWM output — Resolution of the duty cycle	0.1 %
Digital output functions, parameterizable — Digital output with oversampling	Yes
Digital output functions, parameterizable — Digital output with oversampling — Number, max.	4
Digital output functions, parameterizable — Digital output with oversampling — Values per cycle, max.	32
Digital output functions, parameterizable — Digital output with oversampling — Resolution, min.	100 µs
Switching capacity of the outputs — with resistive load, max.	2 A
Switching capacity of the outputs — on lamp load, max.	10 W
Load resistance range — lower limit	12 Ω
Load resistance range — upper limit	3 400 Ω
Output current — for signal "1" rated value	2 A
Output current — for signal "0" residual current, max.	0.1 mA
Output delay with resistive load — "0" to "1", max.	1 µs
Output delay with resistive load — "1" to "0", max.	1 µs
Parallel switching of two outputs — for uprating	No
Switching frequency — with resistive load, max.	5 kHz
Switching frequency — with inductive load, max.	5 kHz
Switching frequency — on lamp load, max.	5 kHz
Total current of the outputs — Current per channel, max.	2 A
Total current of the outputs — Current per module, max.	8 A
Total current of the outputs (per module) — horizontal installation — up to 30 °C, max.	8 A; DQ mode
Total current of the outputs (per module) — horizontal installation — up to 40 °C, max.	6.9 A; DQ mode
Total current of the outputs (per module) — horizontal installation — up to 50 °C, max.	4.7 A; DQ mode
Total current of the outputs (per module) — horizontal installation — up to 60 °C, max.	2.5 A; DQ mode
Total current of the outputs (per module) — vertical installation — up to 30 °C, max.	7.2 A; DQ mode
Total current of the outputs (per module) — vertical installation — up to 40 °C, max.	5.6 A; DQ mode
Total current of the outputs (per module) — vertical installation — up to 50 °C, max.	4 A; DQ mode
Cable length — shielded, max.	50 m
Cable length — unshielded, max.	50 m

Isochronous mode

Execution and activation time (TCO), min.	40 µs
Bus cycle time (TDP), min.	125 µs
Jitter, max.	1 µs

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	No
Diagnoses — Short-circuit	Yes; module-wise
Diagnoses — Group error	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Suitable for safety-related tripping of standard modules	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	29.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.98 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	25.6 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.245 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

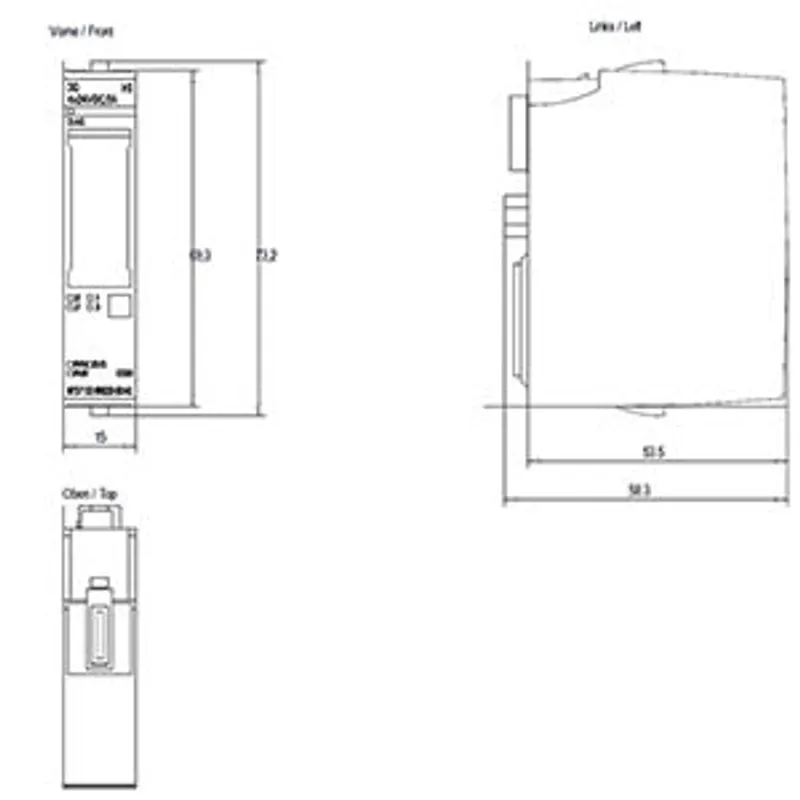

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

31 g
