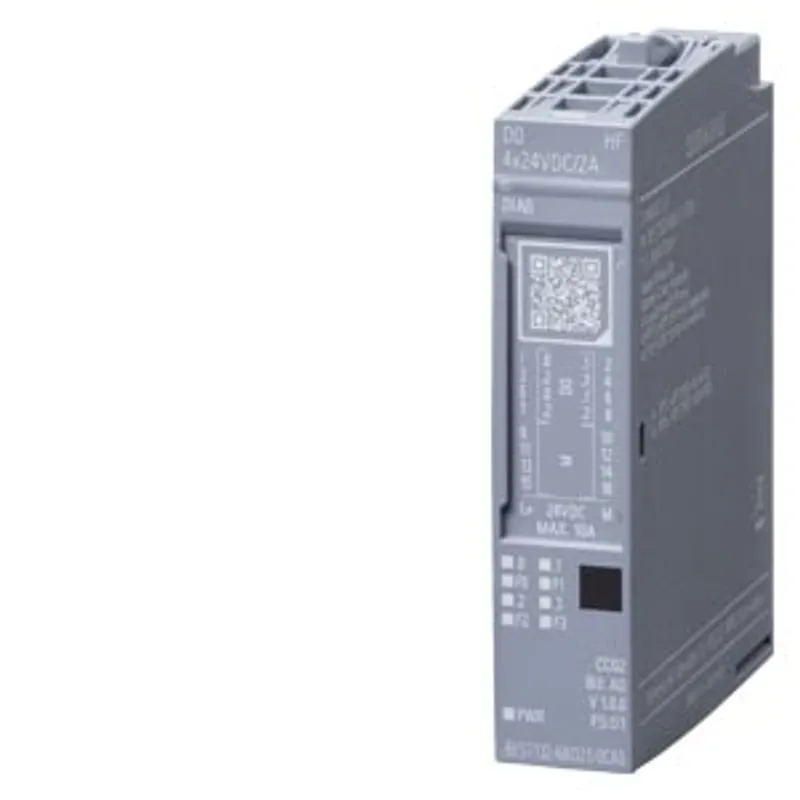

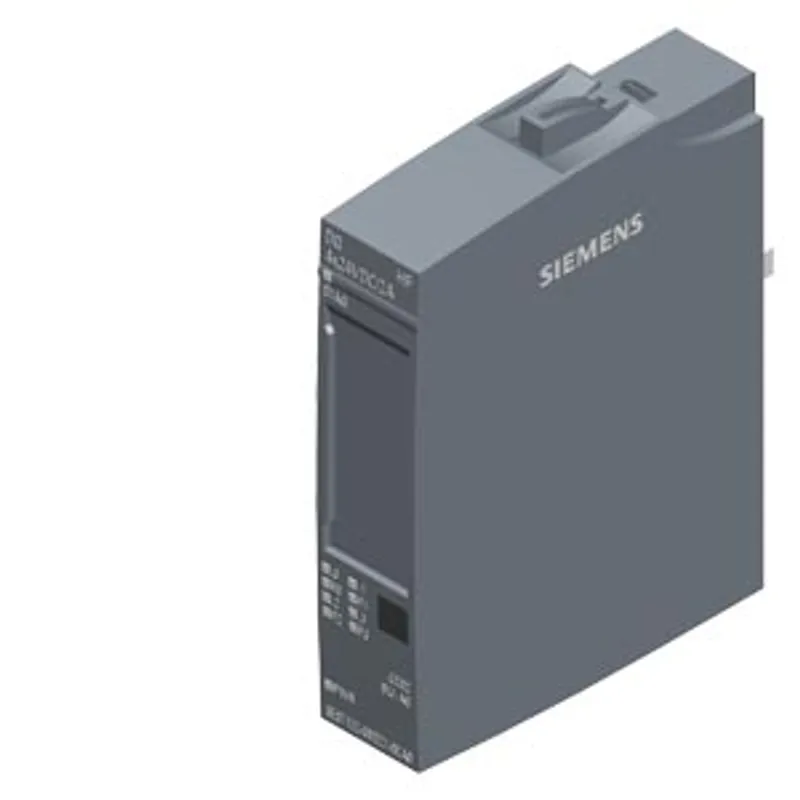

Siemens 6ES7132-6BD21-0CA0

SIMATIC ET 200SP, digital output module, DQ 4x24 V DC/2 A high feature, source output

MPN: 6ES7132-6BD21-0CA0
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

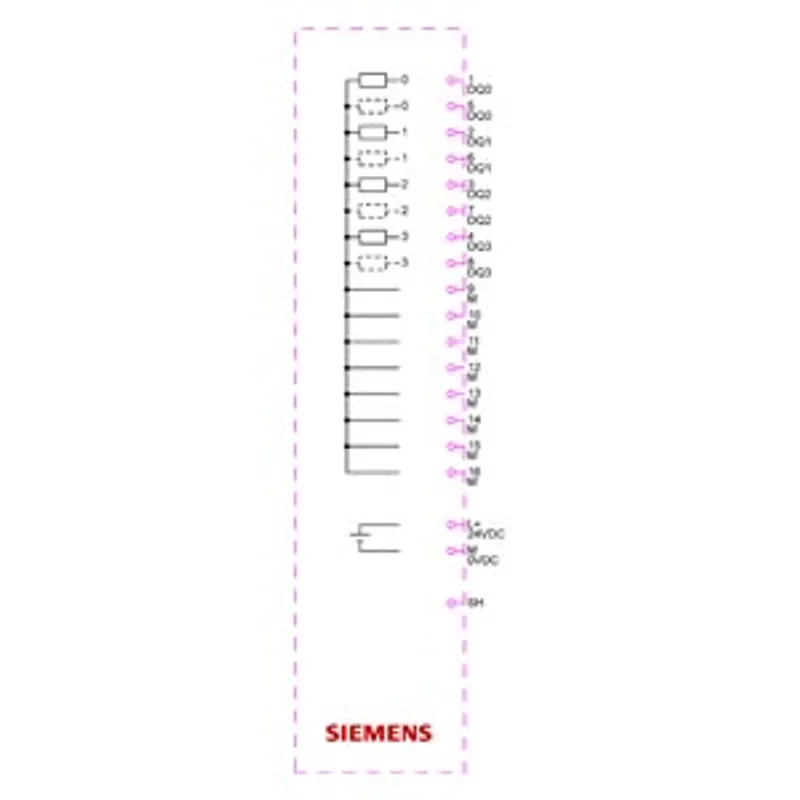

What is the Siemens 6ES7132-6BD21-0CA0?

SIMATIC ET 200SP, digital output module, DQ 4x24 V DC/2 A high feature, source output (PNP,sourcing output) packing unit: 1 unit, suitable for BU type A0, color code CC02, channel diagnostics for: short-circuit and wire break, supply voltage, channel fault LED

Specifications

General information

Product type designation	DQ 4x24VDC/2A HF
HW functional status	01
Firmware version	V1.0
Firmware version — FW update possible	Yes
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC02
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	Yes; 250 µs
Engineering with — STEP 7 TIA Portal configurable/integrated from version	as of TIA Portal V19 with HSP0426 / integrated as of TIA Portal V20
Engineering with — STEP 7 configurable/integrated from version	as of STEP 7 V5.5 SP3 with HSP0230 V11.0 / integrated as of STEP 7 V5.7 SP3
Engineering with — PROFIBUS from GSD version/GSD revision	GSD Revision 5
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.43
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Operating mode — MSO	Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

20 mA; without load

Output voltage

Rated value (DC)

24 V

Power loss

Power loss, typ.

1 W

Address area

Address space per module — Address space per module, max.

4 byte; 2 channels per submodule + QI information

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A
Submodules — Number of configurable submodules, max.	2
Selection of BaseUnit for connection variants — 1-wire connection	BU type A0
Selection of BaseUnit for connection variants — 2-wire connection	BU type A0
Selection of BaseUnit for connection variants — 3-wire connection	BU type A0 with AUX terminals or potential distributor module

Digital outputs

Type of digital output	Source output (PNP, current-sourcing)
Number of digital outputs	4
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
output type acc. to IEC 61131, type 2	Yes
Short-circuit protection	Yes; Electronic
Short-circuit protection — Response threshold, typ.	2.8 to 5.2 A
Open-circuit detection	Yes
Limitation of inductive shutdown voltage to	Typ. L+ (-50 V)
Controlling a digital input	Yes
Switching capacity of the outputs — with resistive load, max.	2 A
Switching capacity of the outputs — with inductive load, max.	2 A
Switching capacity of the outputs — on lamp load, max.	10 W
Load resistance range — lower limit	12 Ω
Load resistance range — upper limit	3 400 Ω
Output current — for signal "1" rated value	2 A
Output current — for signal "1" permissible range, max.	2 A
Output current — for signal "0" residual current, max.	0.1 mA
Output delay with resistive load — "0" to "1", typ.	50 µs
Output delay with resistive load — "1" to "0", typ.	100 µs
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads"
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs — Current per channel, max.	2 A
Total current of the outputs — Current per module, max.	8 A; see Equipment Manual "Derating curve"
Total current of the outputs (per module) — horizontal installation — up to 30 °C, max.	8 A
Total current of the outputs (per module) — horizontal installation — up to 40 °C, max.	8 A
Total current of the outputs (per module) — horizontal installation — up to 50 °C, max.	6 A
Total current of the outputs (per module) — horizontal installation — up to 60 °C, max.	4 A
Total current of the outputs (per module) — vertical installation — up to 30 °C, max.	8 A
Total current of the outputs (per module) — vertical installation — up to 40 °C, max.	6 A
Total current of the outputs (per module) — vertical installation — up to 50 °C, max.	4 A
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Isochronous mode

Execution and activation time (TCO), min.	75 µs
Bus cycle time (TDP), min.	500 µs
Jitter, max.	8 µs

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring the supply voltage — parameterizable	Yes
Diagnoses — Wire break	Yes; channel by channel
Diagnoses — Short-circuit to ground	Yes; channel by channel
Diagnoses — Short-circuit to L+	Yes; channel by channel
Diagnoses — Group error	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	Yes; red LED
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Suitable for safety-related tripping of standard modules	Yes; see FAQ Entry ID: 39198632
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	29.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.98 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	25.6 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.245 kg
Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1	PL d
Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1	Cat. 3
Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061	SIL 2
Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

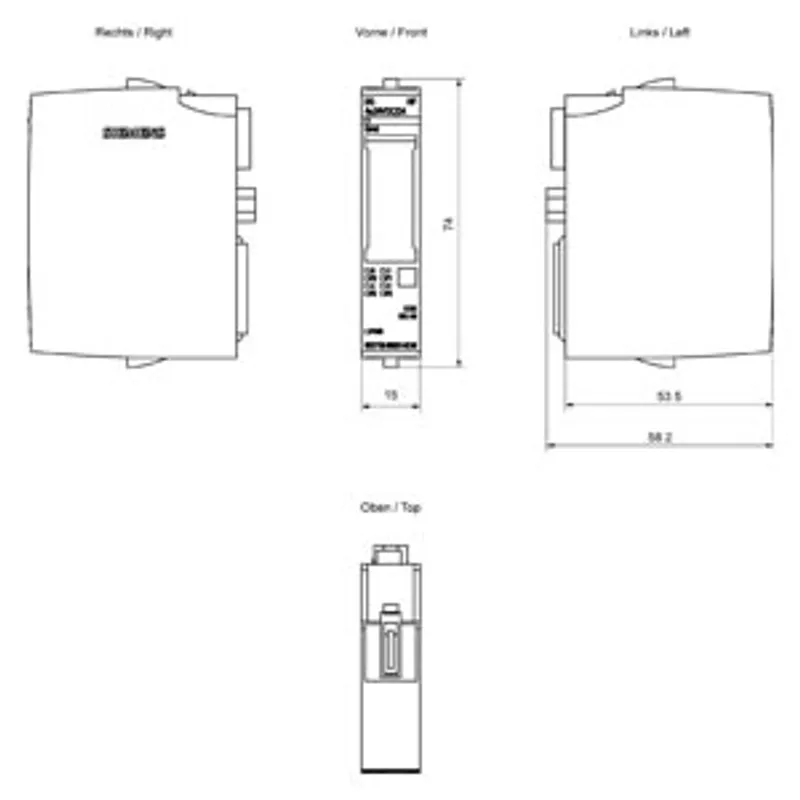

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

30 g
