Siemens 6ES7132-6HD01-2BB1

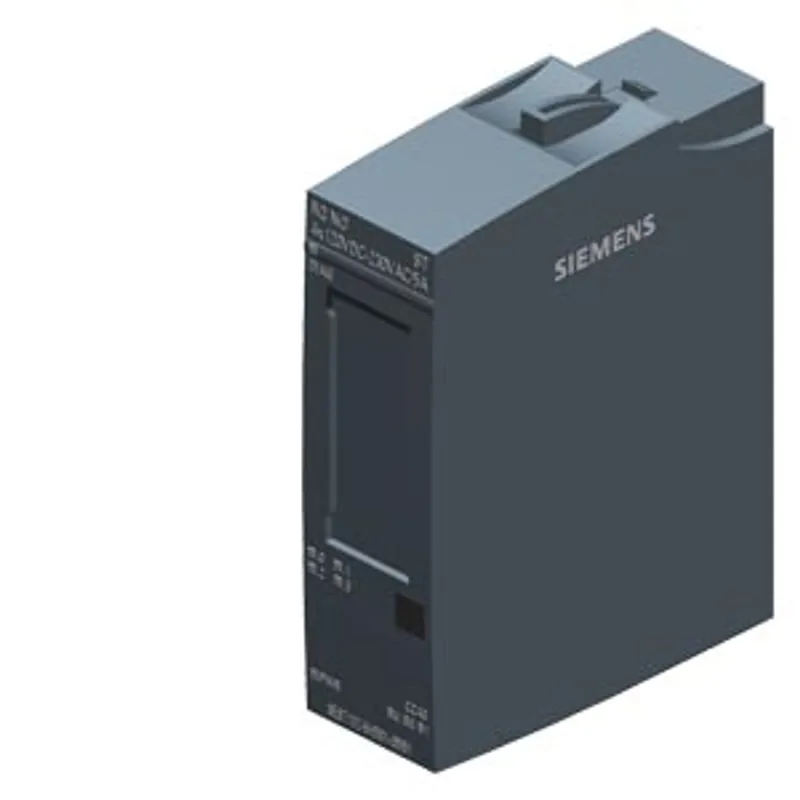

SIMATIC ET 200SP, Relay module, RQ NO 4x 120V DC..230VAC/5A ST. 4 normally open contacts, isolated contacts

MPN: 6ES7132-6HD01-2BB1
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

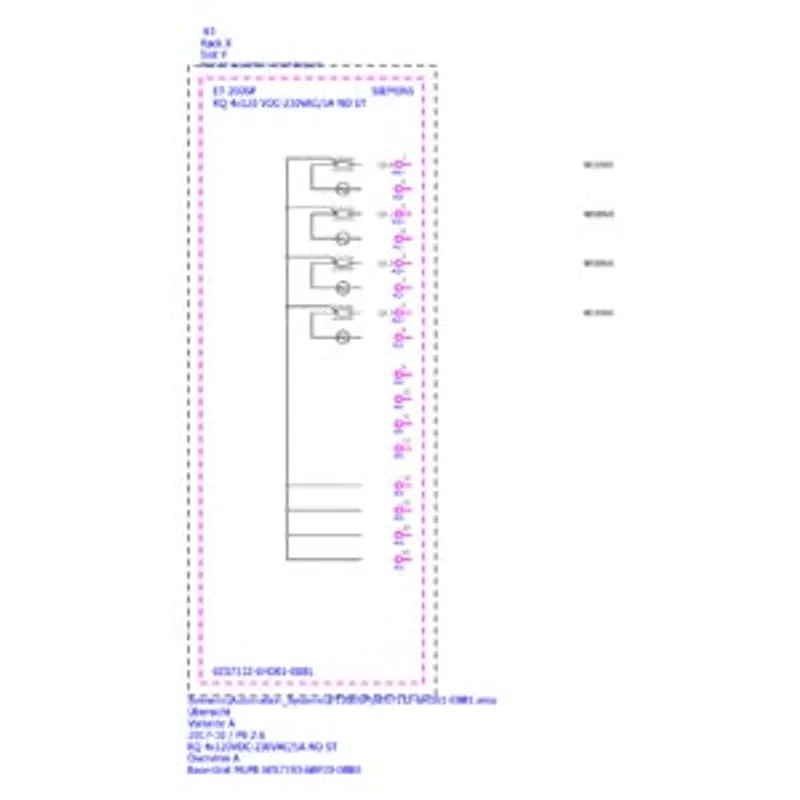

What is the Siemens 6ES7132-6HD01-2BB1?

SIMATIC ET 200SP, Relay module, RQ NO 4x 120V DC..230VAC/5A ST. 4 normally open contacts, isolated contacts, packing unit: 10 pieces, fits to BU-type B0 and B1, Colour Code CC40, substitute value output, module diagnostics for: supply voltage

Specifications

General information

Product type designation	RQ 4x120 VDC ... 230 VAC/5 A NO ST
HW functional status	From FS02
Firmware version	V0.0
Firmware version — FW update possible	No
usable BaseUnits	BU type B0, B1
Color code for module-specific color-coded label	CC40
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V14
Engineering with — STEP 7 configurable/integrated from version	V5.5 SP3
Engineering with — PCS 7 configurable/integrated from version	V8.1 SP1
Engineering with — PROFIBUS from GSD version/GSD revision	One GSD file each, Revision 3 and 5 and higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Operating mode — MSO	No
Redundancy — Redundancy capability	Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)

55 mA; without load

Output voltage

Rated value (AC)

230 V

Power loss

Power loss, typ.

1.5 W

Address area

Address space per module — Inputs	+ 1 byte for QI information
Address space per module — Outputs	1 byte

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	type C
Selection of BaseUnit for connection variants — 2-wire connection	BU type B1
Selection of BaseUnit for connection variants — 3-wire connection	BU type B0

Digital outputs

Type of digital output	Relays
Number of digital outputs	4
Current-sinking	Yes
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	No
Parallel switching of two outputs — for logic links	Yes
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	2 Hz
Switching frequency — with inductive load, max.	0.5 Hz
Switching frequency — on lamp load, max.	2 Hz
Total current of the outputs — Current per channel, max.	5 A
Total current of the outputs — Current per module, max.	20 A
Total current of the outputs (per module) — horizontal installation — up to 50 °C, max.	20 A
Total current of the outputs (per module) — horizontal installation — up to 60 °C, max.	16 A
Total current of the outputs (per module) — vertical installation — up to 40 °C, max.	20 A
Total current of the outputs (per module) — vertical installation — up to 50 °C, max.	16 A
Relay outputs — Number of relay outputs	4
Relay outputs — Rated supply voltage of relay coil L+ (DC)	24 V
Relay outputs — Current consumption of relays (coil current of all relays), max.	40 mA
Relay outputs — external protection for relay outputs	Yes, with 6A
Relay outputs — Number of operating cycles, max.	7 000 000; see additional description in the manual
Relay outputs — Switching capacity of contacts — with inductive load, max.	2 A; see additional description in the manual
Relay outputs — Switching capacity of contacts — with resistive load, max.	5 A; see additional description in the manual
Relay outputs — Switching capacity of contacts — Thermal continuous current, max.	5 A; Max. 1 385 VA, 150 W
Relay outputs — Switching capacity of contacts — Switching current, min.	100 mA; 5 V DC
Relay outputs — Switching capacity of contacts — Rated switching voltage (DC)	24 V DC to 120 V DC
Relay outputs — Switching capacity of contacts — Rated switching voltage (AC)	24V AC to 230V AC
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	200 m

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	No
Diagnoses — Short-circuit	No
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	Yes
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	Yes

Permissible potential difference

between channels and backplane bus/supply voltage

240 V AC

Isolation

Isolation tested with	2 500 V DC (type test)
tested with — between channels and backplane bus/supply voltage	2 500 V DC
tested with — between backplane bus and supply voltage	707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	25.5 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.54 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	22.1 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.137 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m; On request: Installation altitudes greater than 2 000 m

Dimensions

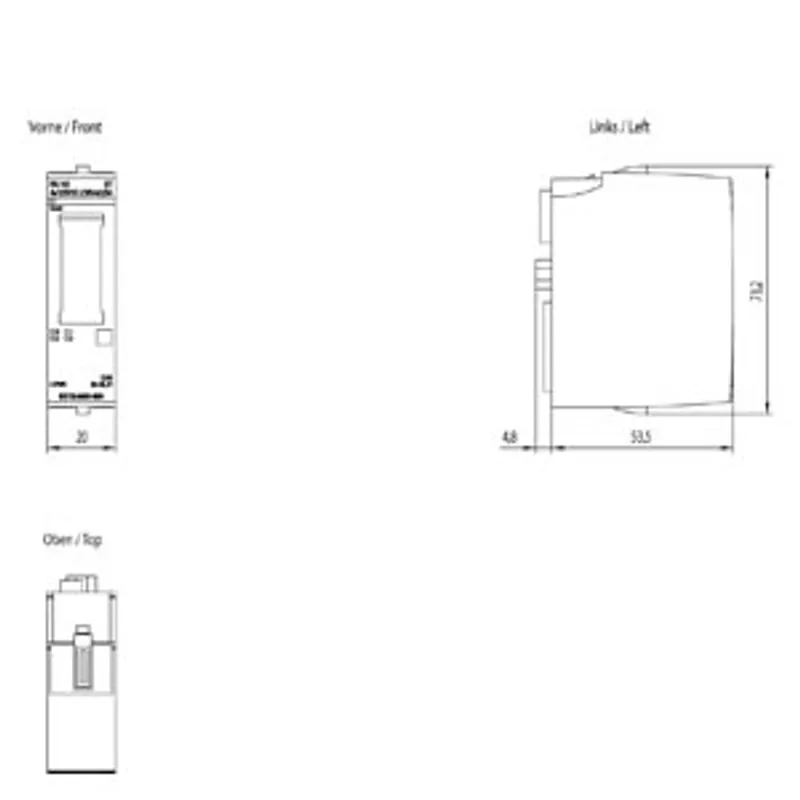

Width	20 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

40 g
