Mitsubishi MELSEC iQ-F Series – Input/Output Module Parts
Available on requestFX5-C16EX/DS Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-C16EX/DS · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFX5-C32EX/D Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-C32EX/D · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFX5-C16EX/D Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-C16EX/D · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFX5-16EX/ES Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-16EX/ES · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFX5-8EX/ES Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-8EX/ES · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

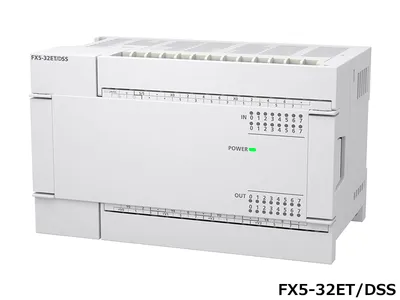

Available on requestFX5-32ET/DSS Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ET/DSS · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

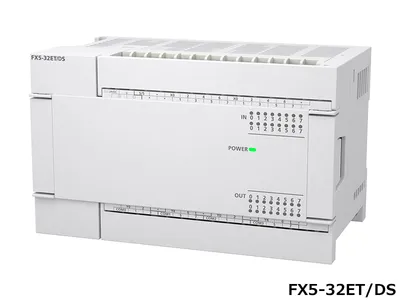

Available on requestFX5-32ET/DS Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ET/DS · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

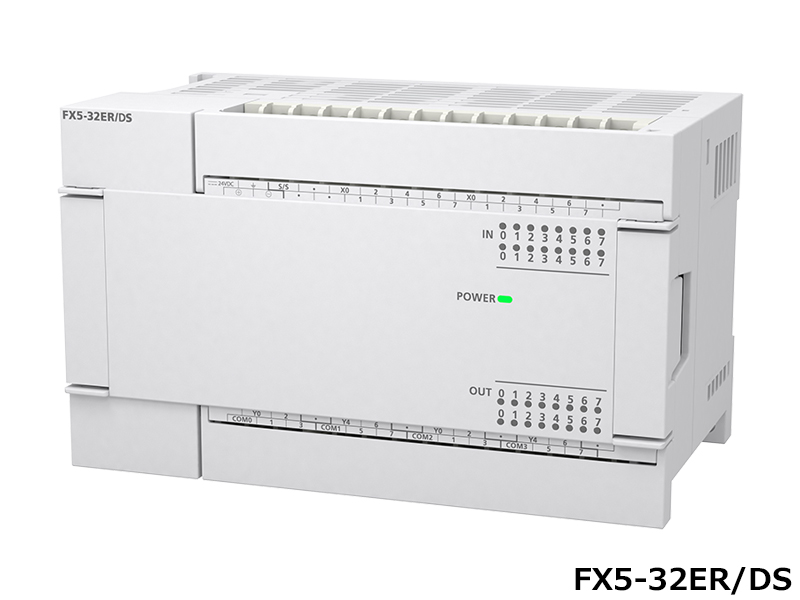

Available on requestFX5-32ER/DS Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ER/DS · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

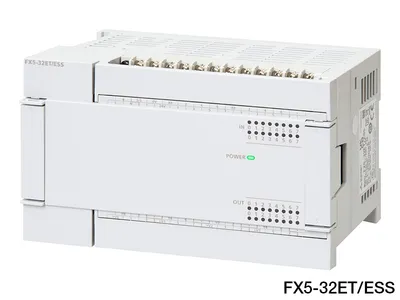

Available on requestFX5-32ET/ESS Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ET/ESS · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

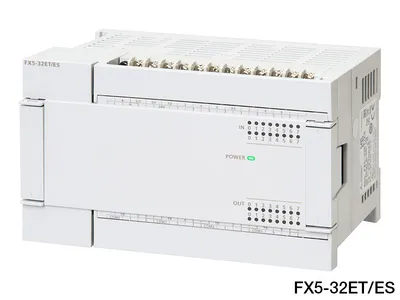

Available on requestFX5-32ET/ES Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ET/ES · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

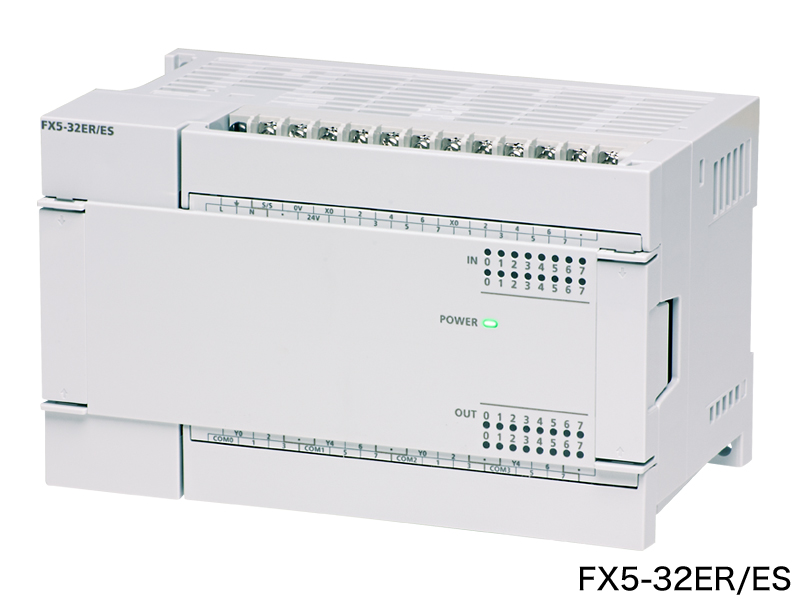

Available on requestFX5-32ER/ES Mitsubishi MELSEC iQ-F Series Input/Output ModuleMPN: FX5-32ER/ES · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteCompare Mitsubishi MELSEC iQ-F Series – Input/Output Module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass (weight) | No. of input points | Input connection type | Input type |
|---|---|---|---|---|
| FX5-C16EX/DS | Approx. 0.1 kg | 16 points | Connector | Sink/source |
| FX5-C32EX/D | Approx. 0.15 kg | 32 points | Connector | Sink |
| FX5-C16EX/D | Approx. 0.1 kg | 16 points | Connector | Sink |
| FX5-16EX/ES | Approx. 0.25 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-8EX/ES | Approx. 0.2 kg | 8 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ET/DSS | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ET/DS | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ER/DS | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ET/ESS | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ET/ES | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
| FX5-32ER/ES | Approx. 0.65 kg | 16 points | Screw terminal block (M3 screws) | Sink/source |
Common to all listed parts
| Series | MELSEC iQ-F Series |
| Category | Input/Output Module |
| Input signal voltage | 24 V DC +20%, -15% |
| Input signal current | 4.0 mA/24 V DC |
| Input impedance | 5.6 kΩ |
| Input sensitivity current: ON | 3.0 mA or more |
| Input sensitivity current: OFF | 1.5 mA or less |
| Input response time | ON: 50 μs or less OFF: 150 μs or less |
