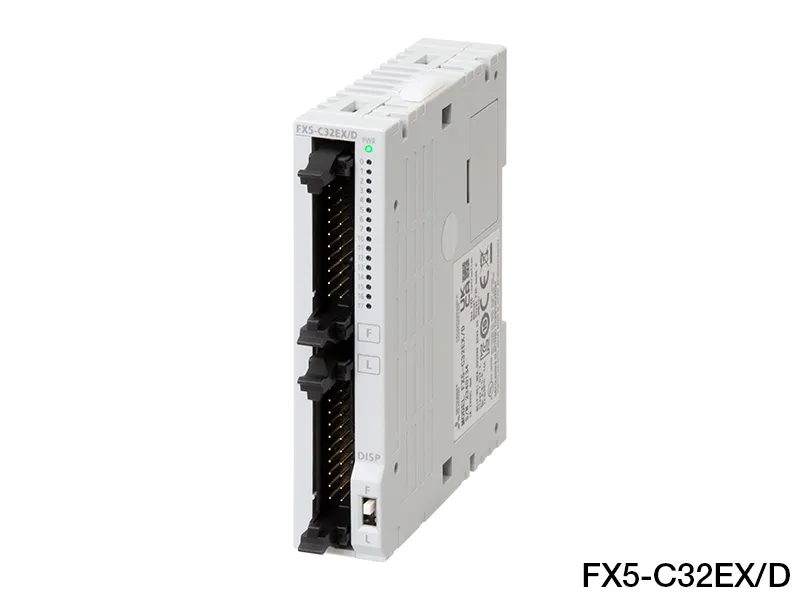

FX5-C32EX/D Mitsubishi MELSEC iQ-F Series Input/Output Module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-F Series – Input/Output Module |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FX5-C32EX/D be shipped?
FX5-C32EX/D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX5-C32EX/D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX5-C32EX/D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-C32EX/D, subject to availability and destination.
The Mitsubishi Electric FX5-C32EX/D is a input/Output Module in the MELSEC iQ-F Series. Connector type Input: 32 points 24 V DC Sink. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-F Series |
| Category | Input/Output Module |
| Outline | Connector type Input: 32 points 24 V DC Sink |
Specifications
| Applicable CPU module | FX5UJ CPU module*1 FX5U CPU module*2 FX5UC CPU module *1 Connection with FX5UJ CPU module requires FX5-CNV-IF. *2 Connection with FX5U CPU module requires FX5-CNV-IF. |
| Mass (weight) | Approx. 0.15 kg |
Power supply specifications
| Rated voltage | 24 V DC (supplied from 24 V DC service power supply or external power supply) 5 V DC (supplied from PLC) |
| Current consumption (5 V DC) | 120 mA |
| Current consumption (24 V DC) | 130 mA |
Input specifications
| No. of input points | 32 points |
| Input connection type | Connector |
| Input type | Sink |
| Input signal voltage | 24 V DC +20%, -15% |
| Input signal current | 4.0 mA/24 V DC |
| Input impedance | 5.6 kΩ |
| Input sensitivity current: ON | 3.0 mA or more |
| Input sensitivity current: OFF | 1.5 mA or less |
| Input response time | ON: 50 μs or less OFF: 150 μs or less |
| Input signal format (Input sensor form) | No-voltage contact input Sink: NPN open collector transistor |
| Input circuit insulation | Photo-coupler insulation |
| Indication of input operation | LED is lit when input is on F/L of DISP switch is used to change between lower and higher numbers. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q) | PDF · 7.58MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestFX5-C32ET/D Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32ET/DS-TS Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32ET/DSS Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32ET/DSS-TS Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32EX/DS Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32EX/DS-TS Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32EYT/D Mitsubishi MELSEC iQ-F Series Input/Output Module
Available on requestFX5-C32EYT/D-TS Mitsubishi MELSEC iQ-F Series Input/Output Module
