RCCBs Parts
























Compare RCCBs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | let-through current permissible | value range of the supply voltage at AC | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|

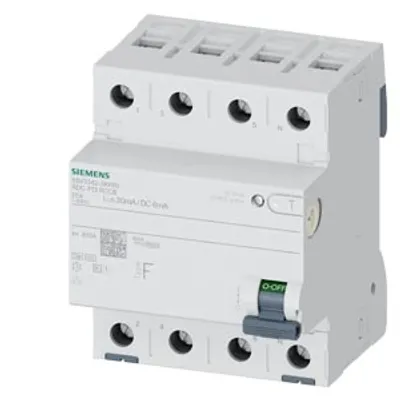

| 5SV3342-3KK60 | 6 200 A | 70-440 V | 1.2 W | 3.6 W | 449 g |

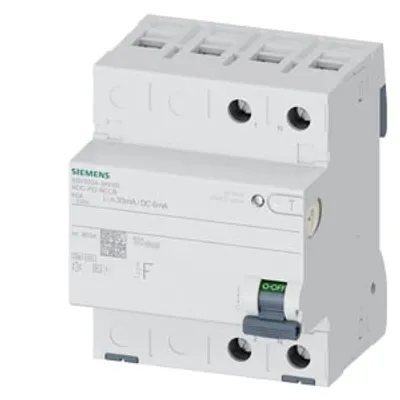

| 5SV3324-3KK60 | 7 500 A | 70-250 V | 2.5 W | 5 W | 379 g |
| 5SV3322-3KK60 | 7 500 A | 70-250 V | 1.2 W | 2.4 W | 378 g |

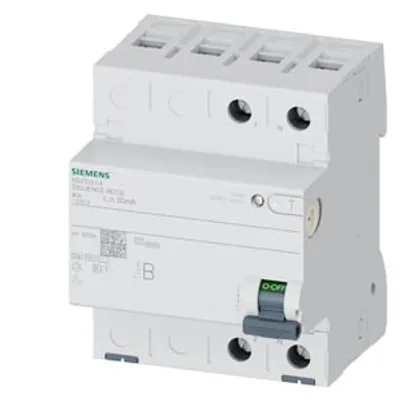

| 5SV3321-4 | 7 500 A | 70-250 V | 0.5 W | 1 W | 373 g |
| 5SV3317-6KL | 7 100 A | 230 V | 5.6 W | 11.2 W | 223 g |

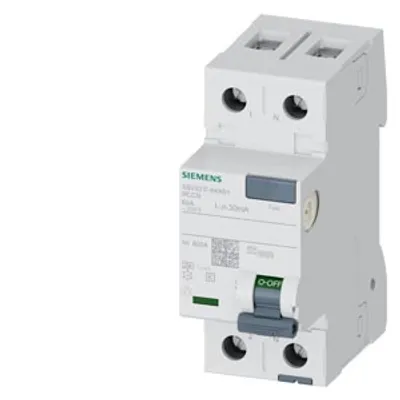

| 5SV3317-6KK01 | 7 100 A | 230 V | 5.6 W | 11.2 W | 225 g |
| 5SV4448-0 | 6 400 A | 230/400 V | 7 W | 20 W | 372 g |
| 5SV4447-0 | 7 100 A | 230/400 V | 4.1 W | 12.3 W | 338 g |

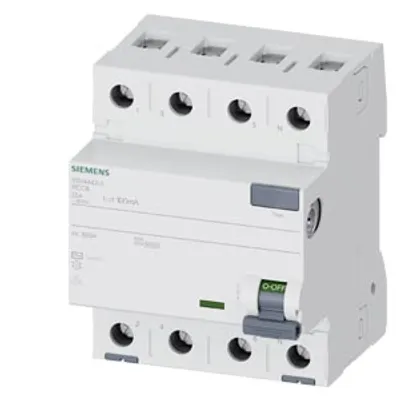

| 5SV4442-0 | 5 200 A | 230/400 V | 0.7 W | 2.1 W | 303 g |
| 5SV3645-8 | 6 400 A | 230/400 V | 10.5 W | 28 W | 380 g |
| 5SV3645-6KK01 | 6 400 A | 230/400 V | 10.5 W | 28 W | 371 g |
| 5SV3644-4 | 6 200 A | 70-440 V | 2.5 W | 7.5 W | 448 g |

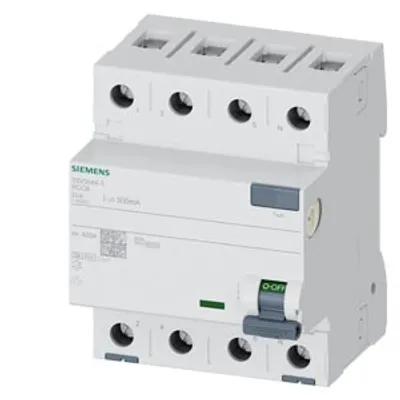

| 5SV3644-3 | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 375 g |
| 5SV3642-8 | 5 200 A | 230/400 V | 0.8 W | 2.4 W | 377 g |

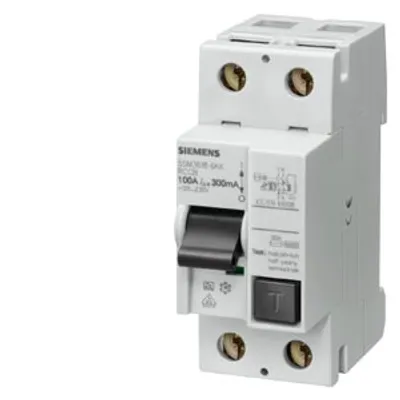

| 5SM3615-6KK | — | 230 V | — | — | 245 g |
| 5SM3415-6KK | — | 230 V | — | — | 274 g |
| 5SV4346-0LA01 | 7 100 A | 400 V | 3.9 W | 11.7 W | 388 g |

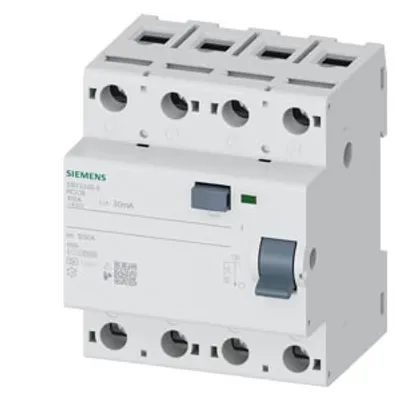

| 5SV3348-6 | 6 400 A | 230/400 V | 7 W | 20 W | 377 g |

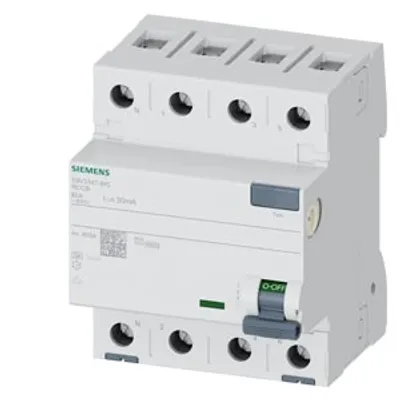

| 5SV3347-6KL | 7 100 A | 400 V | 4.1 W | 12.3 W | 372 g |
| 5SV3312-6KL | 5 200 A | 230 V | 1 W | 2 W | 187 g |
| 5SV3312-6KK13 | 5 200 A | 24 -125 V | 1 W | 2 W | 191 g |

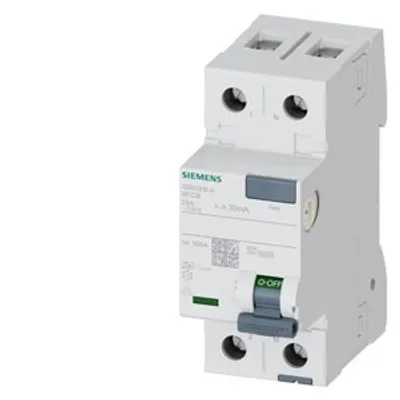

| 5SV3312-6 | 5 200 A | 230 V | 1 W | 2 W | 187 g |

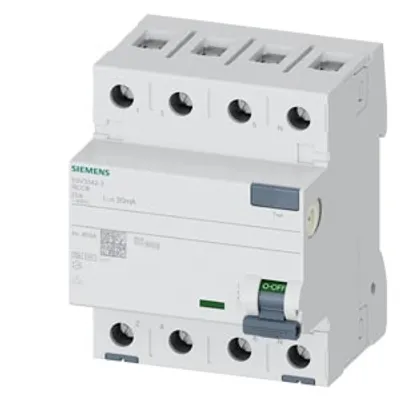

| 5SV3342-3 | 5 200 A | 400 V | 0.8 W | 2.4 W | 375 g |
| 5SV3327-4KK60 | 7 000 A | 70-250 V | 7.5 W | 15 W | 447 g |
Common to all listed parts
| product designation | Residual current operated circuit breaker |
| size of installation devices according to DIN 43880 | 1 |
| short-circuit current rating | 10 kA |
| degree of pollution | 2 |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| RAL color number | 7 035 |
| RAL color number (similar) | 7 035 |
| product feature silicon-free | Yes |
