RCCBs Parts














Compare RCCBs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | tripping fault current rated value | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|
| 5SV4316-0 | Instantaneous | 30 mA | 5.3 W | 10.6 W | 211 g |
| 5SV4311-0 | Instantaneous | 30 mA | 0.4 W | 0.8 W | 186 g |

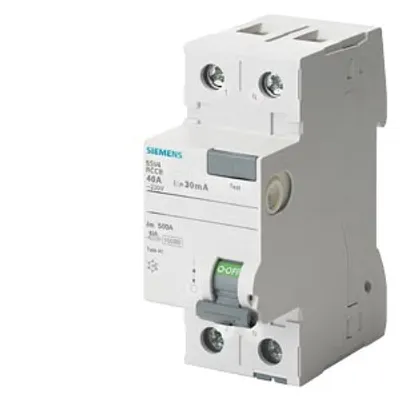

| 5SV4112-0 | Instantaneous | 10 mA | 0.7 W | 1.4 W | 198.5 g |

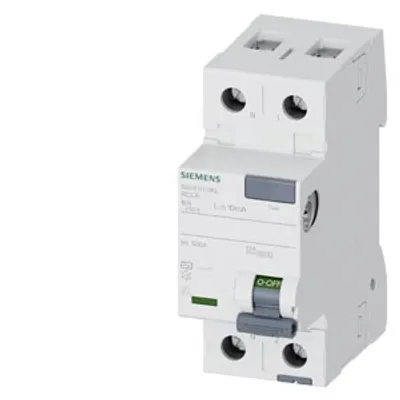

| 5SV4111-0KL | Instantaneous | 10 mA | 0.7 W | 1.4 W | 197 g |

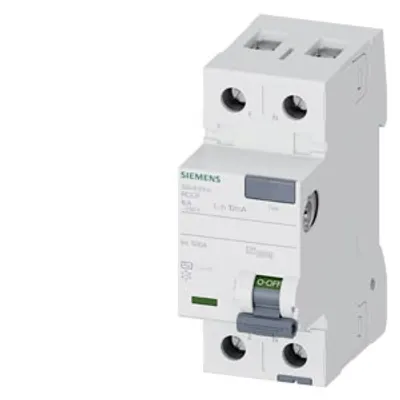

| 5SV4111-0 | Instantaneous | 10 mA | 0.7 W | 1.4 W | 198 g |

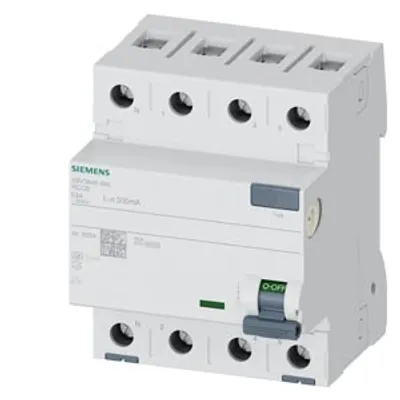

| 5SV3646-6KL | Instantaneous | 300 mA | 3.9 W | 11.7 W | 336 g |

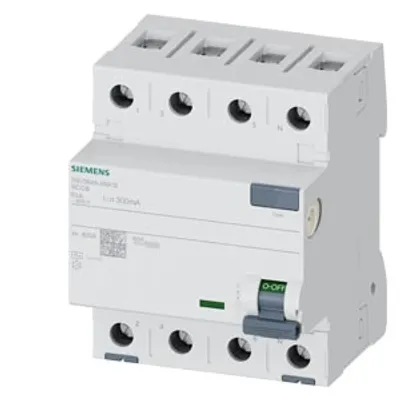

| 5SV3646-6KK12 | Instantaneous | 300 mA | 4 W | 12 W | 336 g |
| 5SV3646-6KK01 | Short-time delayed | 300 mA | 3.9 W | 11.7 W | 376 g |

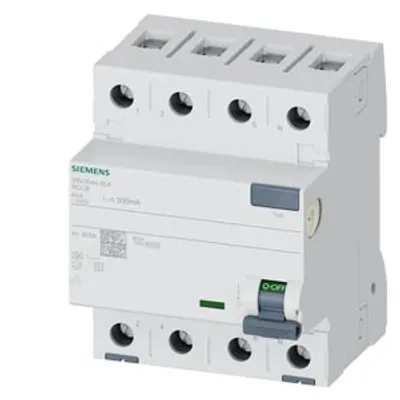

| 5SV3644-8LA | Selective | 300 mA | 1.8 W | 5.4 W | 376 g |
| 5SV3644-8 | Selective | 300 mA | 1.8 W | 5.4 W | 376 g |
| 5SV3644-6KK12 | Instantaneous | 300 mA | 1.9 W | 5.7 W | 336 g |

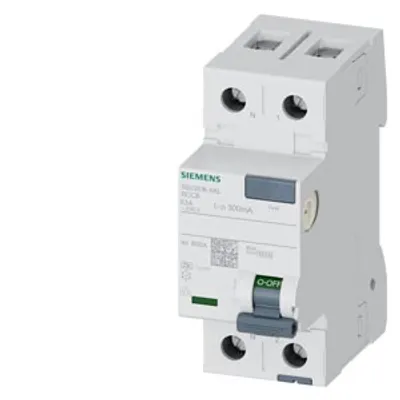

| 5SV3616-6KL | Instantaneous | 300 mA | 2.7 W | 5.4 W | 194 g |
| 5SV3446-8LA | Selective | 100 mA | 3.9 W | 11.7 W | 377 g |
| 5SV3446-8 | Selective | 100 mA | 3.9 W | 11.7 W | 378 g |
Common to all listed parts
| product designation | Residual current operated circuit breaker |
| size of installation devices according to DIN 43880 | 1 |
| mechanical service life (operating cycles) typical | 10 000 |
| short-circuit current rating | 10 kA |
| degree of pollution | 2 |
| insulation voltage (Ui) rated value | 2 000 V |
| value range of the supply voltage frequency | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
