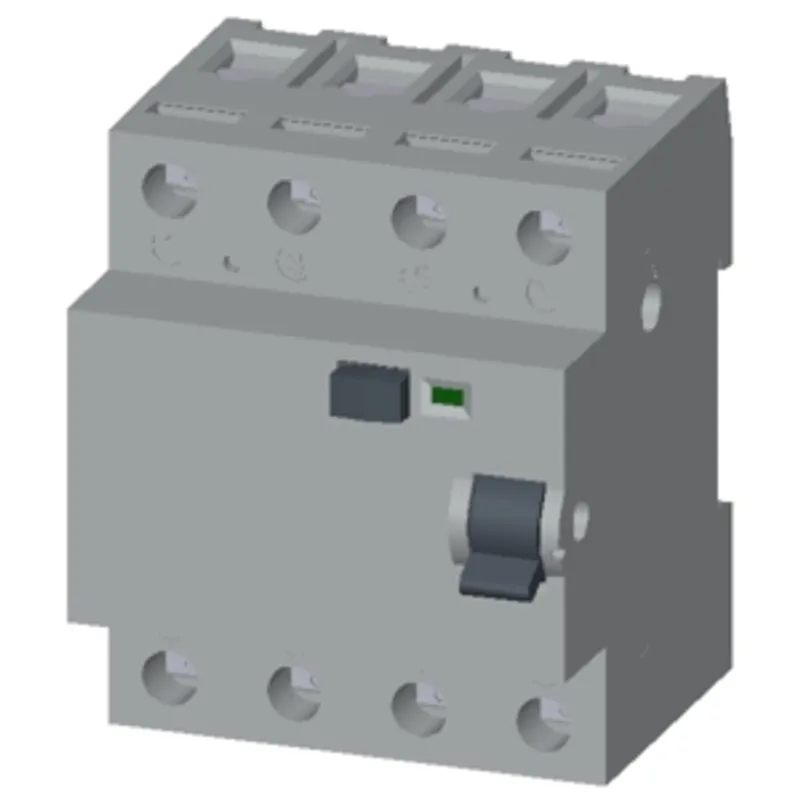

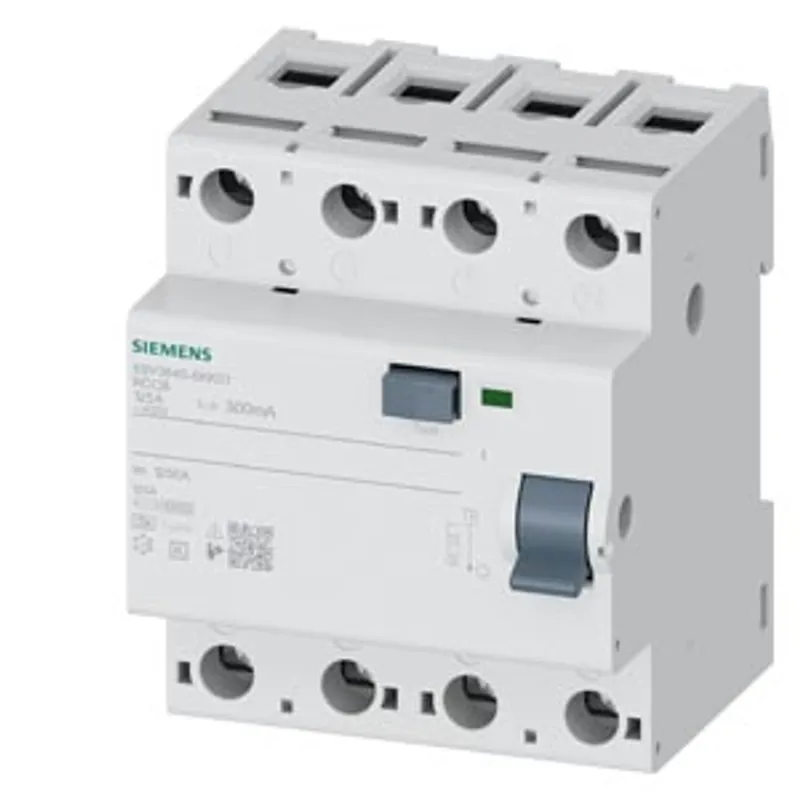

Siemens 5SV3645-6KK01

Residual current operated circuit breaker, 4-pole, type A, In: 125 A, 300 mA, Un AC: 400 V short-time delayed

MPN
5SV3645-6KK01
Category
RCCBs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV3645-6KK01?

Residual current operated circuit breaker, 4-pole, type A, In: 125 A, 300 mA, Un AC: 400 V short-time delayed

Specifications

Model

product brand nameSENTRON
product designationResidual current operated circuit breaker
design of the productShort-time delayed
product type designation5SV3

General technical data

number of poles4
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical5 000
short-circuit current of series fuse maximum permissible125 A
short-circuit current rating10 kA
switching function short-term delayedYes
degree of pollution2
insulation voltage (Ui) rated value2 000 V
tripping fault current rated value300 mA
let-through current permissible6 400 A
I2t value permissible60 000 A²·s

Supply voltage

supply voltage for testing equipment minimum195 V
value range of the supply voltage frequency50 Hz
value range of the operating frequency50 Hz
value range of the supply voltage at AC230/400 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value1.25 kA
switching capacity current — according to IEC 61008-1 rated value1.25 kA
grid spacing60 mm

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole10.5 W
power loss [W] — maximum28 W

Appearance

RAL color number7 035
RAL color number (similar)7 035

Product details

product feature silicon-freeYes
product extension installable supplementary devicesNo

Connections

connectable conductor cross-section solid — minimum1 mm²
connectable conductor cross-section solid — maximum50 mm²
connectable conductor cross-section stranded — minimum1 mm²
connectable conductor cross-section stranded — maximum50 mm²
tightening torque with screw-type terminals — minimum3 N·m
tightening torque with screw-type terminals — maximum3.5 N·m
position of power supply cordtop or bottom

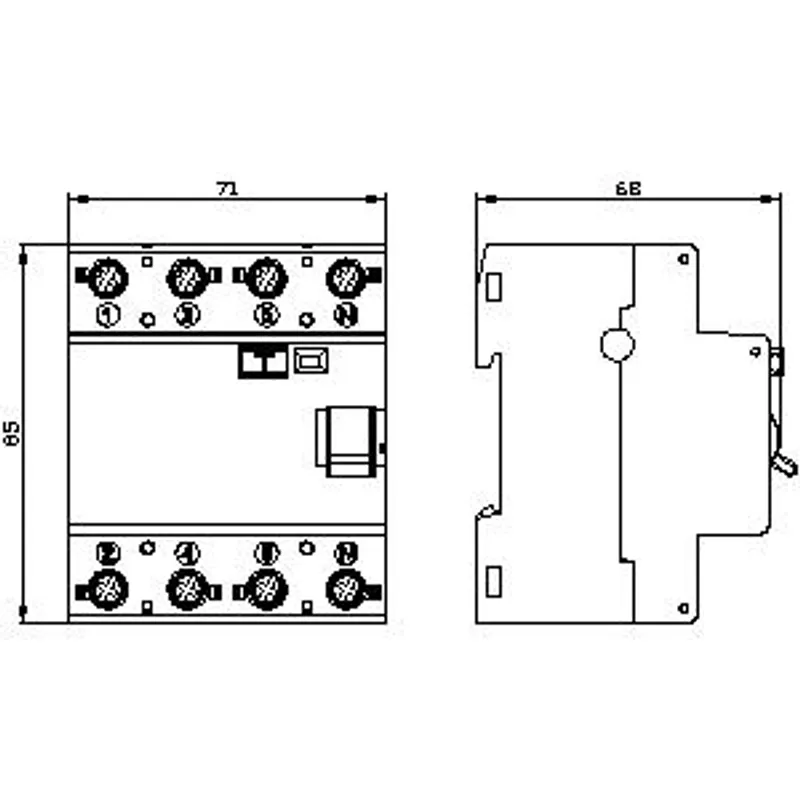

Mechanical Design

height85 mm
width71 mm
depth73 mm
installation depth70 mm
number of modular width units4
fastening methodDIN rail
mounting positionany
Net Weight371 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum40 °C
ambient temperature during storage minimum-35 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV3645-6KK01: frequently asked questions

When can 5SV3645-6KK01 be shipped?

5SV3645-6KK01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV3645-6KK01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV3645-6KK01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV3645-6KK01, subject to availability and destination.
