RCCBs Parts
























Compare RCCBs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | let-through current permissible | value range of the supply voltage at AC | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|
| 5SV4444-0LA | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 364 g |

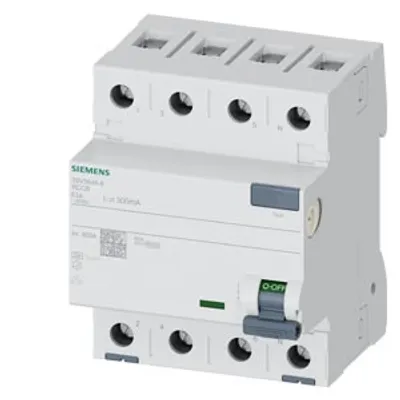

| 5SV3646-6 | 7 100 A | 230/400 V | 3.9 W | 11.7 W | 336 g |
| 5SV3644-7 | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 377 g |

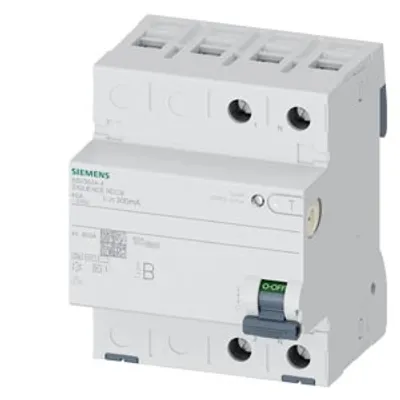

| 5SV3624-4 | 7 500 A | 70-250 V | 2.5 W | 5 W | 377 g |
| 5SV3622-4 | 7 500 A | 70-250 V | 1.2 W | 2.4 W | 379 g |
| 5SV3617-3 | 7 100 A | 230/400 V | 3.9 W | 7.8 W | 204 g |
| 5SV3612-6KL | 5 200 A | 230/400 V | 0.6 W | 1.2 W | 180 g |
| 5SV3612-6KK01 | 5 200 A | 230/400 V | 0.5 W | 1 W | 204 g |
| 5SV3612-6 | 5 200 A | 230/400 V | 0.6 W | 1.2 W | 187 g |
| 5SV3417-6KL | 7 100 A | 230/400 V | 3.9 W | 7.8 W | 207 g |
| 5SV3417-6 | 7 100 A | 230/400 V | 3.9 W | 7.8 W | 208 g |

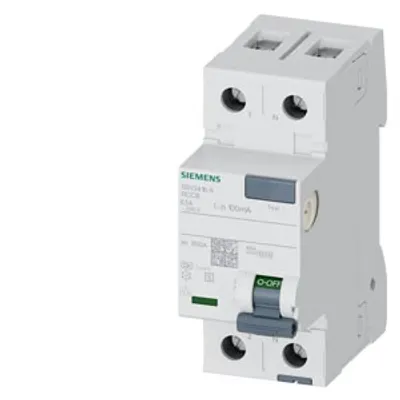

| 5SV3416-8 | 7 100 A | 230/400 V | 5.3 W | 10.6 W | 213 g |

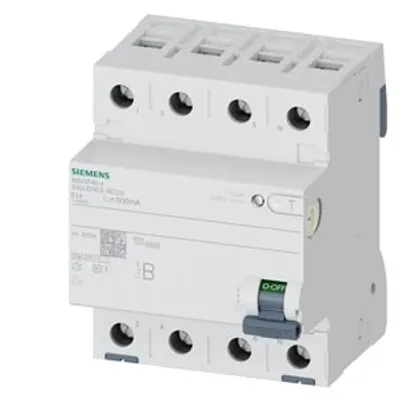

| 5SV3746-4 | 7 000 A | 70-440 V | 5 W | 15 W | 451 g |

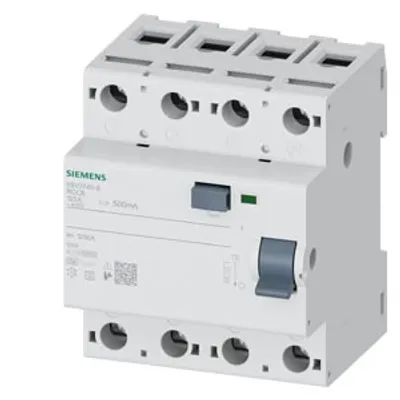

| 5SV3745-8 | 6 400 A | 230/400 V | 10.5 W | 28 W | 380 g |
| 5SV3745-6KK01 | 6 400 A | 230/400 V | 10.5 W | 28 W | 380 g |
| 5SV3745-6 | 6 400 A | 230/400 V | 10.5 W | 28 W | 370.5 g |
| 5SV4314-0MB | 5 200 A | 230 V | 2.6 W | 5.2 W | 186 g |
| 5SV4314-0LA01 | 5 200 A | 230 V | 1.5 W | 3 W | 213 g |

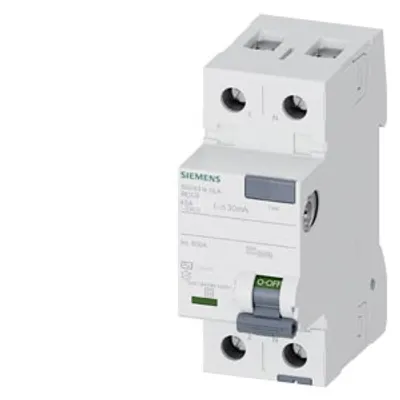

| 5SV4314-0LA | 5 200 A | 230 V | 2.6 W | 5.2 W | 208 g |
| 5SV4346-0MB | 7 100 A | 400 V | 3.9 W | 11.7 W | 371 g |

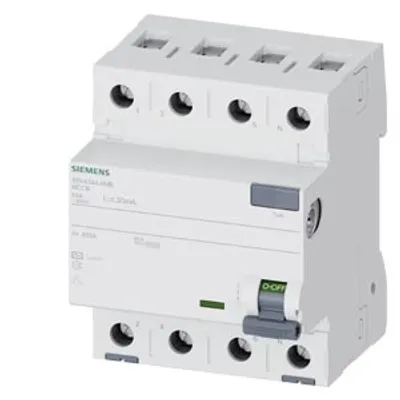

| 5SV4344-0MB | 5 200 A | 400 V | 3.9 W | 11.7 W | 313 g |
| 5SV4344-0LA01 | 5 200 A | 400 V | 1.8 W | 5.4 W | 374 g |
| 5SV3412-6KL | 5 200 A | 230/400 V | 0.6 W | 1.2 W | 182 g |
| 5SV3314-3 | 5 200 A | 230 V | 1.5 W | 3 W | 214 g |
Common to all listed parts
| product designation | Residual current operated circuit breaker |
| size of installation devices according to DIN 43880 | 1 |
| short-circuit current rating | 10 kA |
| degree of pollution | 2 |
| insulation voltage (Ui) rated value | 2 000 V |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| grid spacing | 60 mm |
| RAL color number | 7 035 |
