RCCBs Parts
























Compare RCCBs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | let-through current permissible | value range of the supply voltage at AC | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|

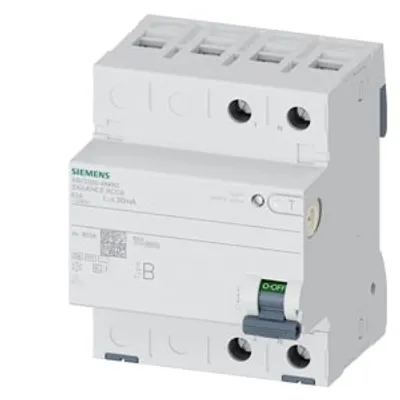

| 5SV3326-4KK60 | 7 000 A | 70-250 V | 5 W | 10 W | 380 g |
| 5SV3644-6KK01 | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 377 g |
| 5SV3644-6 | 5 200 A | 230/400 V | 2 W | 6 W | 306 g |
| 5SV3644-4KK14 | 6 200 A | 70-440 V | 2.5 W | 7.5 W | 450 g |

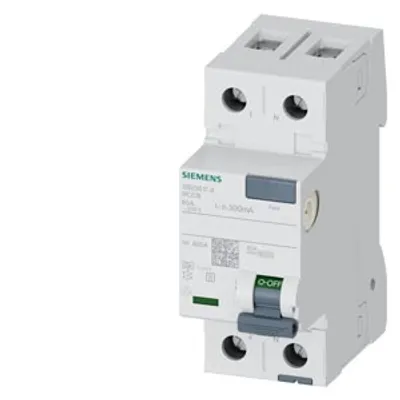

| 5SV3617-8 | 7 100 A | 230/400 V | 3.9 W | 7.8 W | 207 g |
| 5SV3617-7 | 7 100 A | 230/400 V | 3.9 W | 7.8 W | 211 g |
| 5SV3614-8KL | 5 200 A | 230/400 V | 1 W | 2 W | 204 g |
| 5SV3614-8 | 5 200 A | 230/400 V | 1 W | 2 W | 204 g |
| 5SV3614-7 | 5 200 A | 230/400 V | 1 W | 2 W | 205 g |

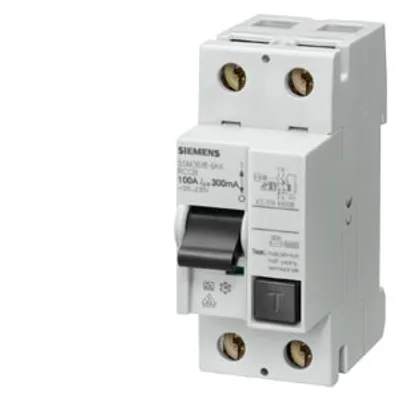

| 5SM3418-6KK | — | 230 V | — | — | 272 g |
| 5SM3618-6KK | — | 230 V | — | — | 248 g |
| 5SV4745-0 | 6 400 A | 230/400 V | 10.5 W | 28 W | 370 g |
| 5SV4744-0 | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 335 g |

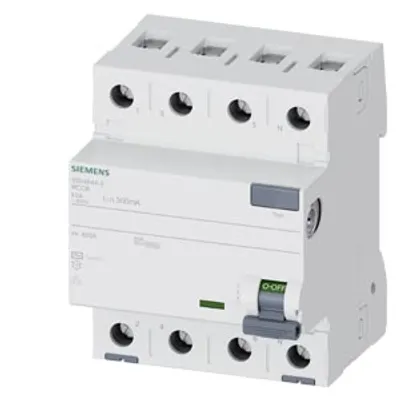

| 5SV4644-0 | 5 200 A | 230/400 V | 2 W | 6 W | 305 g |
| 5SV3346-4 | 7 000 A | 70-440 V | 5 W | 15 W | 445 g |
| 5SV3346-3KK60 | 7 000 A | 70-440 V | 5 W | 15 W | 450 g |

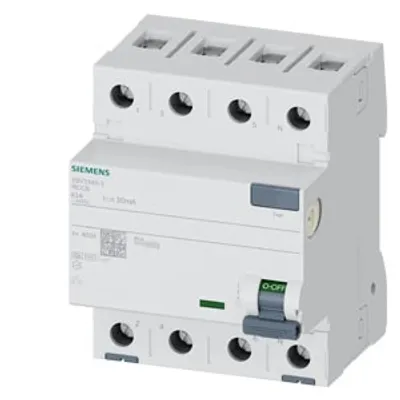

| 5SV3346-3 | 7 100 A | 400 V | 3.9 W | 11.7 W | 373 g |

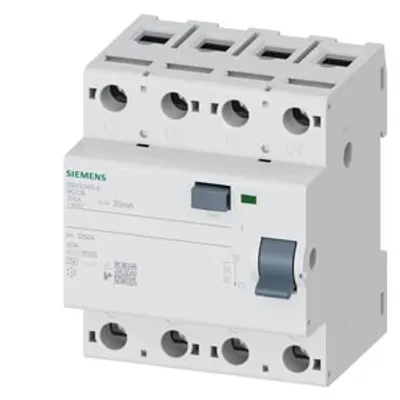

| 5SV3345-6 | 6 400 A | 230/400 V | 10.5 W | 28 W | 377 g |
| 5SV3344-6LA01 | 5 200 A | 400 V | 1.8 W | 5.4 W | 374.5 g |

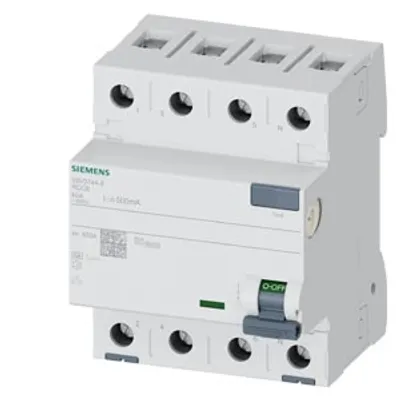

| 5SV3744-6 | 5 200 A | 230/400 V | 1.8 W | 5.4 W | 338 g |
| 5SV3647-5 | 7 000 A | 70-440 V | 7.5 W | 22.5 W | 454 g |
| 5SV3647-4KK14 | 7 000 A | 70-440 V | 7.5 W | 22.5 W | 451 g |

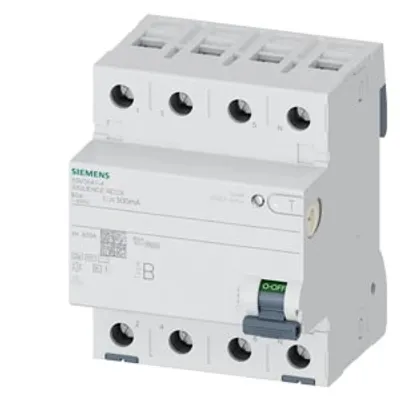

| 5SV3647-4 | 7 000 A | 70-440 V | 7.5 W | 22.5 W | 447 g |

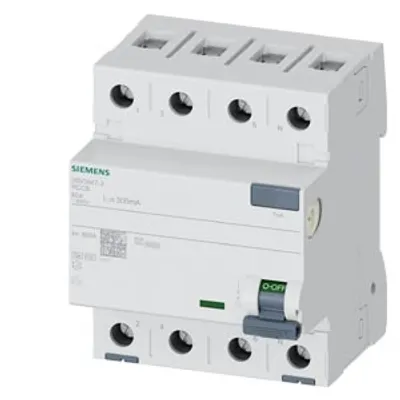

| 5SV3647-3 | 7 100 A | 230/400 V | 4.1 W | 12.3 W | 376 g |
Common to all listed parts
| product designation | Residual current operated circuit breaker |
| size of installation devices according to DIN 43880 | 1 |
| short-circuit current rating | 10 kA |
| degree of pollution | 2 |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| RAL color number | 7 035 |
| RAL color number (similar) | 7 035 |
| product feature silicon-free | Yes |
