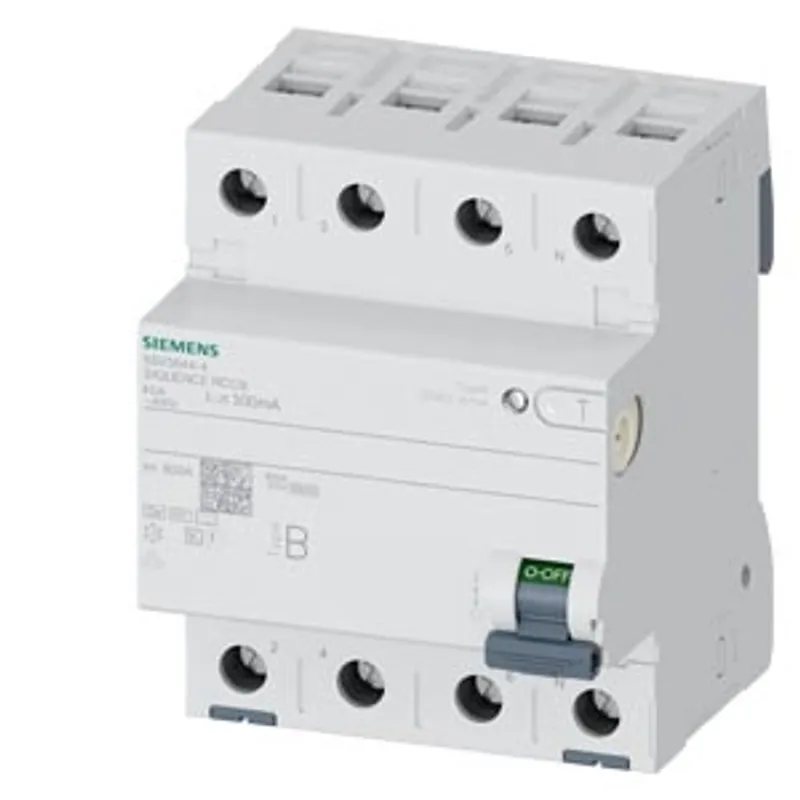

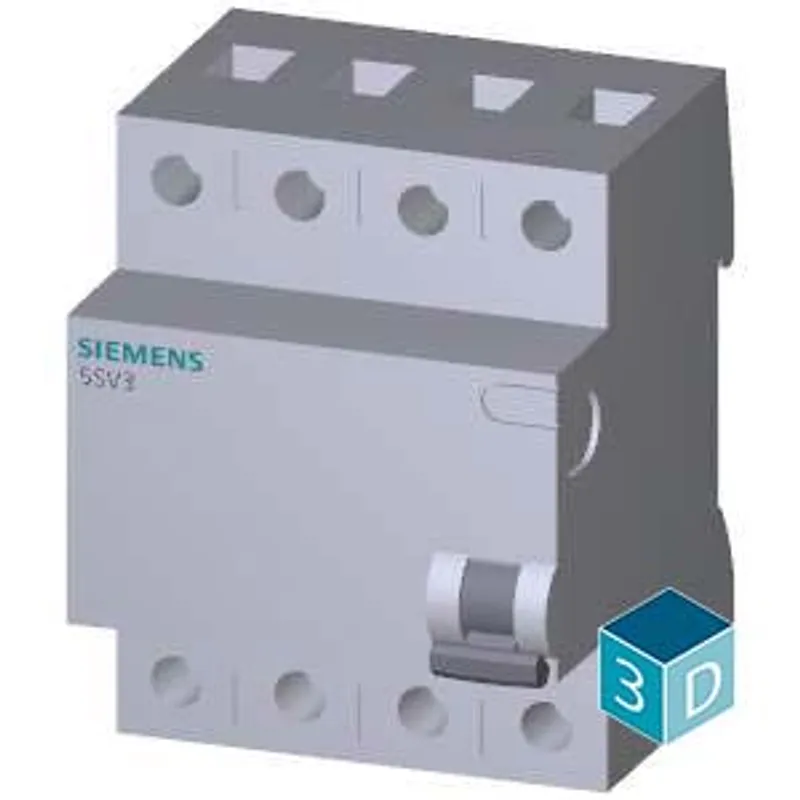

Siemens 5SV3644-4

Residual current operated circuit breaker, 4-pole, type B, short-time-delayed, In: 40 A, 300 mA

MPN
5SV3644-4
Category
RCCBs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV3644-4?

residual current operated circuit breaker, 4-pole, type B, short-time-delayed, In: 40 A, 300 mA, Un AC: 400 V SIGRES: harsh ambient conditions, extended test interval

Specifications

Model

product brand nameSENTRON
product designationResidual current operated circuit breaker
design of the productShort-time delayed
product type designation5SV3
product versionSIGRES (harsh ambient conditions)

General technical data

number of poles4
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical10 000
short-circuit current of series fuse maximum permissible100 A
short-circuit current rating10 kA
switching function short-term delayedYes
degree of pollution2
insulation voltage (Ui) rated value2 000 V
tripping fault current rated value300 mA
let-through current permissible6 200 A
I2t value permissible41 000 A²·s

Supply voltage

supply voltage for testing equipment minimum70 V
value range of the supply voltage frequency50/60 Hz
value range of the operating frequency50/60 Hz
value range of the supply voltage at AC70-440 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to IEC 61008-1 rated value0.8 kA
grid spacing60 mm

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole2.5 W
power loss [W] — maximum7.5 W

Appearance

RAL color number7 035
RAL color number (similar)7 035

Product details

product feature silicon-freeYes
product extension installable supplementary devicesYes

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum35 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m
position of power supply cordtop or bottom (top for SIGRES function also in switched-off state)

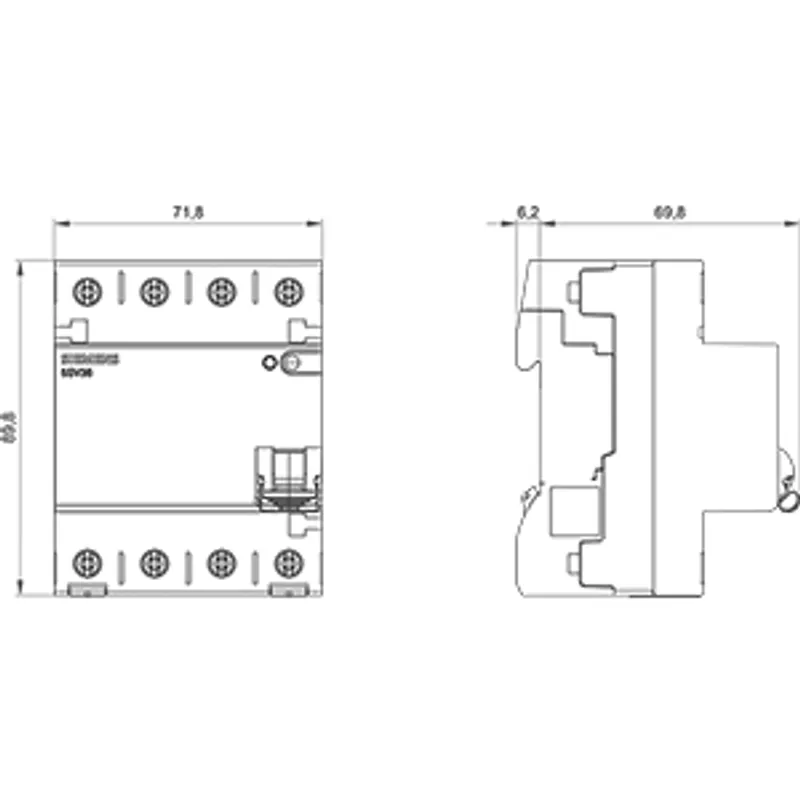

Mechanical Design

height90 mm
width72 mm
depth70 mm
installation depth70 mm
number of modular width units4
fastening methodDIN rail
mounting positionany
Net Weight448 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage minimum-40 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV3644-4: frequently asked questions

When can 5SV3644-4 be shipped?

5SV3644-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV3644-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV3644-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV3644-4, subject to availability and destination.
