LV HRC Design Parts

Showing 97–120 of 198 parts
Siemens 3NE5336-0MK06 – SITOR fuse link, with slotted blade contacts, NH2, In: 630 A, aR, Un AC: 1500 V, Un DC: 1000 V
Siemens
3NE5336-0MK06

SITOR fuse link, with slotted blade contacts, NH2

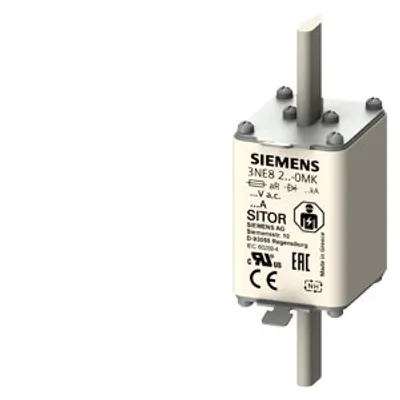

Siemens 3NE8230-0MK – SITOR fuse link, with blade contacts, NH1, In: 315 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8230-0MK

SITOR fuse link, with blade contacts, NH1, In: 315 A, aR

Siemens 3NE8221-0MK – SITOR fuse link, with blade contacts, NH1, In: 100 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8221-0MK

SITOR fuse link, with blade contacts, NH1, In: 100 A, aR

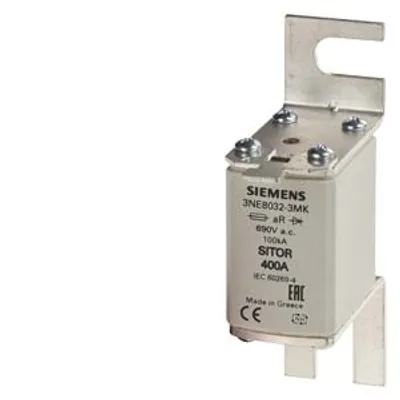

Siemens 3NE8032-3MK – SITOR fuse link, with Bolt-on links, NH00, In: 400 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8032-3MK

SITOR fuse link, with Bolt-on links, NH00, In: 400 A, aR

Siemens 3NE8021-1 – SITOR fuse link, with blade contacts, NH00, In: 100 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8021-1

SITOR fuse link, with blade contacts, NH00, In: 100 A, aR

Siemens 3NE8020-1 – SITOR fuse link, with blade contacts, NH00, In: 80 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8020-1

SITOR fuse link, with blade contacts, NH00, In: 80 A, aR

Siemens 3NE8018-1 – SITOR fuse link, with blade contacts, NH00, In: 63 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8018-1

SITOR fuse link, with blade contacts, NH00, In: 63 A, gR

Siemens 3NB1226-3KK15 – SITOR fuse size 2 200A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives
Siemens
3NB1226-3KK15

SITOR fuse size 2 200A aR 1000V dc/1250V VSI 1100V dc UL…

Siemens 3NB1225-3KK15 – SITOR fuse size 2 160A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives
Siemens
3NB1225-3KK15

SITOR fuse size 2 160A aR 1000V dc/1250V VSI 1100V dc UL…

Siemens 3NB1224-3KK15 – SITOR fuse size 2 125A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives
Siemens
3NB1224-3KK15

SITOR fuse size 2 125A aR 1000V dc/1250V VSI 1100V dc UL…

Siemens 3NB1223-3KK15 – SITOR fuse size 2 100A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives
Siemens
3NB1223-3KK15

SITOR fuse size 2 100A aR 1000V dc/1250V VSI 1100V dc UL…

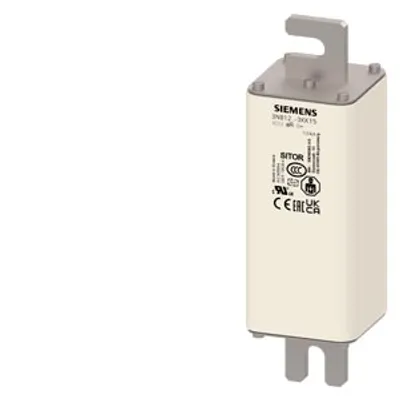

Siemens 3NB1222-3KK15 – SITOR fuse size 2 80A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives
Siemens
3NB1222-3KK15

SITOR fuse size 2 80A aR 1000V dc/1250V VSI 1100V dc UL…

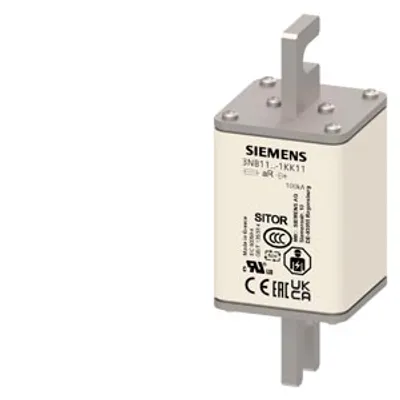

Siemens 3NB1142-1KK11 – SITOR fuse size 1 630A aR 600V dc/750V VSI 700V dc UL @MBC 6xIn screw connection M10 110mm slotted knives
Siemens
3NB1142-1KK11

SITOR fuse size 1 630A aR 600V dc/750V VSI 700V dc UL @MBC…

Siemens 3NB1138-1KK11 – SITOR fuse size 1 550A aR 600V dc/750V VSI 700V dc UL @MBC 6xIn screw connection M10 110mm slotted knives
Siemens
3NB1138-1KK11

SITOR fuse size 1 550A aR 600V dc/750V VSI 700V dc UL @MBC…

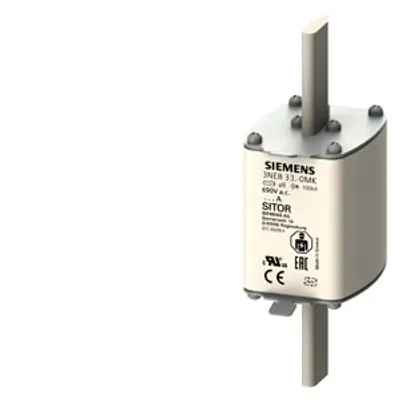

Siemens 3NE8335-0MK – SITOR fuse link, with blade contacts, NH2, In: 550 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8335-0MK

SITOR fuse link, with blade contacts, NH2, In: 550 A, aR

Siemens 3NE8334-0MK – SITOR fuse link, with blade contacts, NH2, In: 500 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8334-0MK

SITOR fuse link, with blade contacts, NH2, In: 500 A, aR

Siemens 3NE8232-3MK – SITOR fuse link, with slotted blade contacts, NH1, In: 400 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8232-3MK

SITOR fuse link, with slotted blade contacts, NH1

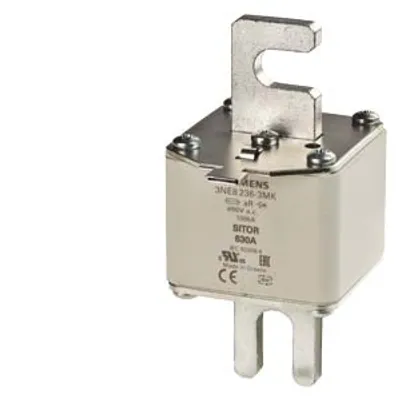

Siemens 3NE8231-3MK – SITOR fuse link, with slotted blade contacts, NH1, In: 350 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8231-3MK

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE8230-3MK – SITOR fuse link, with slotted blade contacts, NH1, In: 315 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8230-3MK

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE5325-0MK06 – SITOR fuse link, with slotted blade contacts, NH2, In: 200 A, aR, Un AC: 1500 V, Un DC: 1000 V
Siemens
3NE5325-0MK06

SITOR fuse link, with slotted blade contacts, NH2

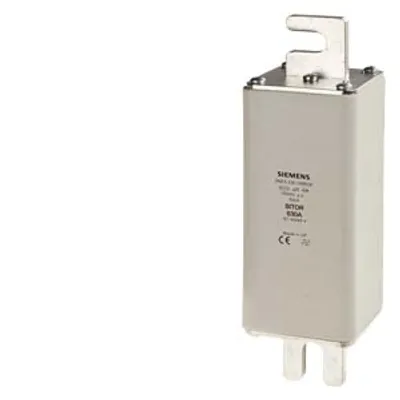

Siemens 3NE5318-0MK06 – SITOR fuse link, with slotted blade contacts, NH2, In: 63 A, gR, Un AC: 1500 V, Un DC: 1000 V
Siemens
3NE5318-0MK06

SITOR fuse link, with slotted blade contacts, NH2, In: 63 A

Siemens 3NB1350-1KK12 – SITOR fuse size 3 1000A aR 600V dc/1000V VSI 750V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
Siemens
3NB1350-1KK12

SITOR fuse size 3 1000A aR 600V dc/1000V VSI 750V dc UL…

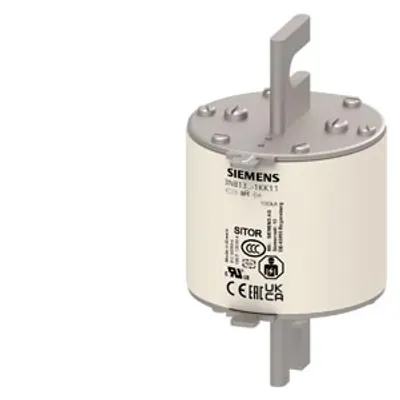

Siemens 3NB1350-1KK11 – SITOR fuse size 3 1000A aR 600V dc/1000V VSI 750V dc UL @MBC 6xIn screw connection M12 110mm slotted knives
Siemens
3NB1350-1KK11

SITOR fuse size 3 1000A aR 600V dc/1000V VSI 750V dc UL…

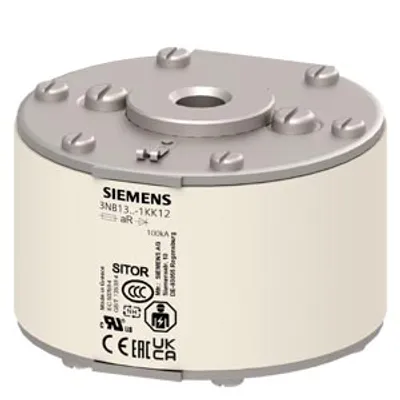

Siemens 3NB1347-1KK12 – SITOR fuse size 3 900A aR 600V dc/1000V VSI 750V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
Siemens
3NB1347-1KK12

SITOR fuse size 3 900A aR 600V dc/1000V VSI 750V dc UL @MBC…

Compare LV HRC Design

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNdesign of the productpower loss [W]power loss [W] — for rated value of the current at AC in hot operating state per polepower loss [W] — maximumNet Weight
3NE5336-0MK06With slotted blade contacts163 W163 W163 W1.399 kg
3NE8230-0MKwith blade contacts without slots68 W68 W68 W0.478 kg
3NE8221-0MKwith blade contacts without slots25.5 W25.5 W25.5 W0.476 kg
3NE8032-3MKwith angle connector74.5 W74.5 W74.5 W0.211 kg
3NE8021-1with blade contacts without slots22 W22 W22 W192.693 g
3NE8020-1with blade contacts without slots19 W19 W19 W191.693 g
3NE8018-1with blade contacts without slots16 W16 W16 W190.693 g
3NB1226-3KK15With slotted blade contacts56 W56 W56 W1.359 kg
3NB1225-3KK15With slotted blade contacts54 W54 W54 W1.353 kg
3NB1224-3KK15With slotted blade contacts59 W59 W59 W1.359 kg
3NB1223-3KK15With slotted blade contacts45 W45 W45 W1.362 kg
3NB1222-3KK15With slotted blade contacts42 W42 W42 W1.355 kg
3NB1142-1KK11With slotted blade contacts127 W127 W127 W607 g
3NB1138-1KK11With slotted blade contacts110 W110 W110 W650 g
3NE8335-0MKwith blade contacts without slots86.4 W86.4 W86.4 W0.601 kg
3NE8334-0MKwith blade contacts without slots77.5 W77.5 W77.5 W0.599 kg
3NE8232-3MKWith slotted blade contacts70.5 W70.5 W70.5 W0.412 kg
3NE8231-3MKWith slotted blade contacts69 W69 W69 W0.411 kg
3NE8230-3MKWith slotted blade contacts61 W61 W61 W0.413 kg
3NE5325-0MK06With slotted blade contacts56 W56 W56 W1.25 kg
3NE5318-0MK06With slotted blade contacts34 W34 W34 W1.363 kg
3NB1350-1KK12With female thread on both sides165 W165 W165 W953 g
3NB1350-1KK11With slotted blade contacts155 W155 W155 W1.068 kg
3NB1347-1KK12With female thread on both sides160 W160 W160 W953 g

Common to all listed parts

product designationSITOR fuse link
design of the fuse linkSITOR, LV HRC design
accessories includedno
mounting positionAny, preferably vertical
ambient temperature during operation — minimum-20 °C
ambient temperature during operation — maximum50 °C
environmental category-20 to +50 at 95% relative humidity
