LV HRC Design Parts

Showing 49–72 of 198 parts
Siemens 3NE3635-0C – SITOR fuse link, with slotted blade contacts, NH3, In: 450 A, aR, Un AC: 1000 V, Un DC: 440 V, front indicator
Siemens
3NE3635-0C

SITOR fuse link, with slotted blade contacts, NH3

Siemens 3NE3232-0B – SITOR fuse link, with slotted blade contacts, NH1, In: 400 A, aR, Un AC: 1000 V, front indicator
Siemens
3NE3232-0B

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE3231 – SITOR fuse link, with slotted blade contacts, NH1, In: 350 A, aR, Un AC: 1000 V, front indicator
Siemens
3NE3231

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE3230-0B – SITOR fuse link, with slotted blade contacts, NH1, In: 315 A, aR, Un AC: 1000 V, front indicator
Siemens
3NE3230-0B

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE3227 – SITOR fuse link, with slotted blade contacts, NH1, In: 250 A, aR, Un AC: 1000 V, front indicator
Siemens
3NE3227

SITOR fuse link, with slotted blade contacts, NH1

Siemens 3NE8820-0MK – SITOR fuse link, with blade contacts, NH000, In: 80 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8820-0MK

SITOR fuse link, with blade contacts, NH000, In: 80 A, aR

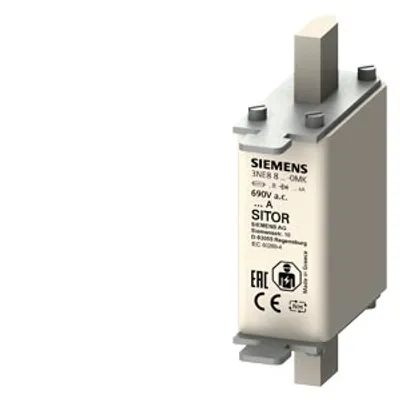

Siemens 3NE8818-0MK – SITOR fuse link, with blade contacts, NH000, In: 63 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8818-0MK

SITOR fuse link, with blade contacts, NH000, In: 63 A, gR

Siemens 3NE8812-0MK – SITOR fuse link, with blade contacts, NH000, In: 10 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8812-0MK

SITOR fuse link, with blade contacts, NH000, In: 10 A, gR

Siemens 3NE8810-0MK – SITOR fuse link, with blade contacts, NH000, In: 6 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8810-0MK

SITOR fuse link, with blade contacts, NH000, In: 6 A, gR

Siemens 3NE8802-0MK – SITOR fuse link, with blade contacts, NH000, In: 40 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator
Siemens
3NE8802-0MK

SITOR fuse link, with blade contacts, NH000, In: 40 A, gR

Siemens 3NE1332-3 – SITOR fuse link, with slotted blade contacts, NH2, In: 400 A, gR, Un AC: 690 V, Un DC: 250 V, front indicator
Siemens
3NE1332-3

SITOR fuse link, with slotted blade contacts, NH2

Siemens 3NE1332-2 – SITOR fuse link, with blade contacts, NH2, In: 400 A, gR, Un AC: 690 V, Un DC: 250 V, front indicator
Siemens
3NE1332-2

SITOR fuse link, with blade contacts, NH2, In: 400 A, gR

Siemens 3NE1332-0 – SITOR fuse link, with blade contacts, NH2, In: 400 A, gS, Un AC: 690 V, Un DC: 250 V, front indicator
Siemens
3NE1332-0

SITOR fuse link, with blade contacts, NH2, In: 400 A, gS

Siemens 3NE7636-0U – SITOR fuse link, with slotted blade contacts, NH3, In: 630 A, aR, Un AC: 2000 V, Un DC: 440 V, front indicator
Siemens
3NE7636-0U

SITOR fuse link, with slotted blade contacts, NH3

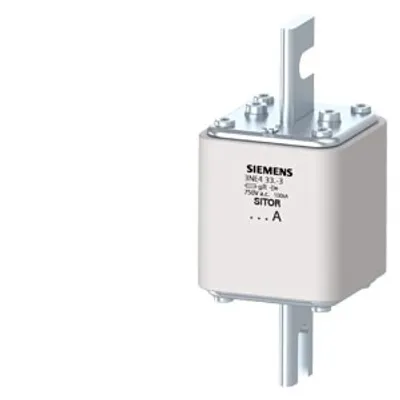

Siemens 3NE4335-3 – SITOR fuse link, with slotted blade contacts, NH2, In: 550 A, gR,, Un AC: 750 V, front indicator
Siemens
3NE4335-3

SITOR fuse link, with slotted blade contacts, NH2

Siemens 3NE4334-6B – SITOR fuse link, with female thread on both sides, In: 500 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator
Siemens
3NE4334-6B

SITOR fuse link, with female thread on both sides

Siemens 3NE4332-3 – SITOR fuse link, with slotted blade contacts, NH2, In: 400 A, gR, Un AC: 750 V, front indicator
Siemens
3NE4332-3

SITOR fuse link, with slotted blade contacts, NH2

Siemens 3NE4331-3 – SITOR fuse link, with slotted blade contacts, NH2, In: 350 A, gR, Un AC: 750 V, front indicator
Siemens
3NE4331-3

SITOR fuse link, with slotted blade contacts, NH2

Siemens 3NE4330-6B – SITOR fuse link, with female thread on both sides, In: 315 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator
Siemens
3NE4330-6B

SITOR fuse link, with female thread on both sides

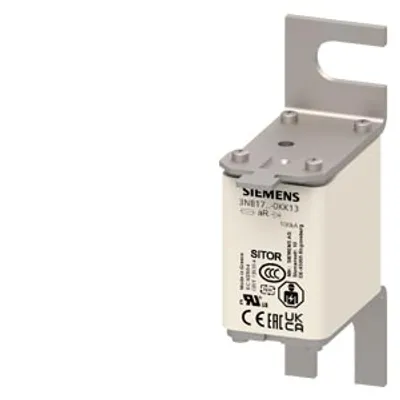

Siemens 3NB1715-0KK13 – SITOR fuse size 00 32A aR 440V dc/700V VSI 500V dc UL @MBC 6xIn screw connection M10 80mm brackets
Siemens
3NB1715-0KK13

SITOR fuse size 00 32A aR 440V dc/700V VSI 500V dc UL @MBC…

Siemens 3NB1713-0KK13 – SITOR fuse size 00 25A aR 440V dc/700V VSI 500V dc UL @MBC 6xIn screw connection M10 80mm brackets
Siemens
3NB1713-0KK13

SITOR fuse size 00 25A aR 440V dc/700V VSI 500V dc UL @MBC…

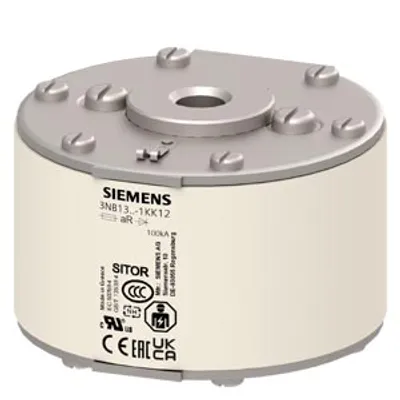

Siemens 3NB1352-1KK12 – SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
Siemens
3NB1352-1KK12

SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC…

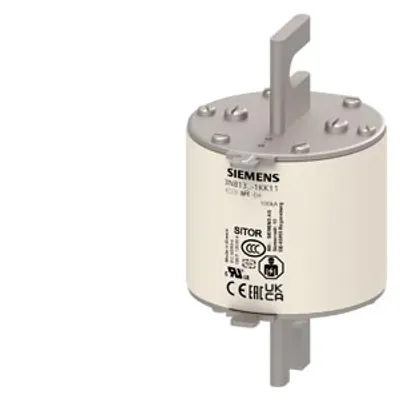

Siemens 3NB1352-1KK11 – SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC 6xIn screw connection M12 110mm slotted knives
Siemens
3NB1352-1KK11

SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC…

Siemens 3NB1351-1KK12 – SITOR fuse size 3 1100A aR 600V dc/900V VSI 750V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
Siemens
3NB1351-1KK12

SITOR fuse size 3 1100A aR 600V dc/900V VSI 750V dc UL @MBC…

Compare LV HRC Design

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNsize of fuse system according to EN 60269-1power loss [W]power loss [W] — for rated value of the current at AC in hot operating state per polepower loss [W] — maximumNet Weight
3NE3635-0CNH3110 W110 W110 W1.198 kg
3NE3232-0BNH185 W85 W85 W590 g
3NE3231NH175 W75 W75 W586 g
3NE3230-0BNH1———580 g
3NE3227NH150 W50 W50 W571.5 g
3NE8820-0MKNH00023.3 W23.3 W23.3 W0.14 kg
3NE8818-0MKNH00023 W23 W23 W0.137 kg
3NE8812-0MKNH0004.5 W4.5 W4.5 W0.139 kg
3NE8810-0MKNH0002.7 W2.7 W2.7 W142 g
3NE8802-0MKNH00012 W12 W12 W0.139 kg
3NE1332-3NH250 W50 W50 W680 g
3NE1332-2NH250 W50 W50 W811 g
3NE1332-0NH245 W45 W45 W800 g
3NE7636-0UNH3220 W220 W220 W2.184 kg
3NE4335-3NH280 W80 W80 W802 g
3NE4334-6Bothers155 W155 W155 W678 g
3NE4332-3NH270 W70 W70 W0.808 kg
3NE4331-3NH260 W60 W60 W0.806 kg
3NE4330-6Bothers120 W120 W120 W690 g
3NB1715-0KK13NH0010.8 W10.8 W10.8 W204 g
3NB1713-0KK13NH008.2 W8.2 W8.2 W198 g
3NB1352-1KK12NH3185 W185 W185 W950 g
3NB1352-1KK11NH3175 W175 W175 W1 kg
3NB1351-1KK12NH3175 W175 W175 W951 g

Common to all listed parts

product designationSITOR fuse link
switching capacity current — according to IEC 60947-2 rated value100 kA
accessories includedno
mounting positionAny, preferably vertical
ambient temperature during operation — minimum-20 °C
ambient temperature during operation — maximum50 °C
environmental category-20 to +50 at 95% relative humidity
