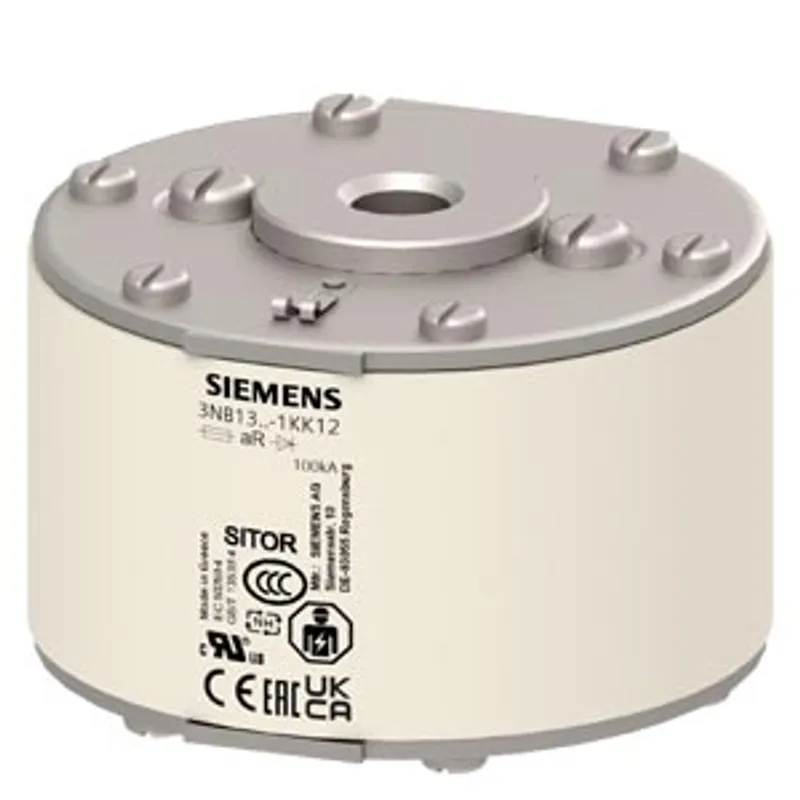

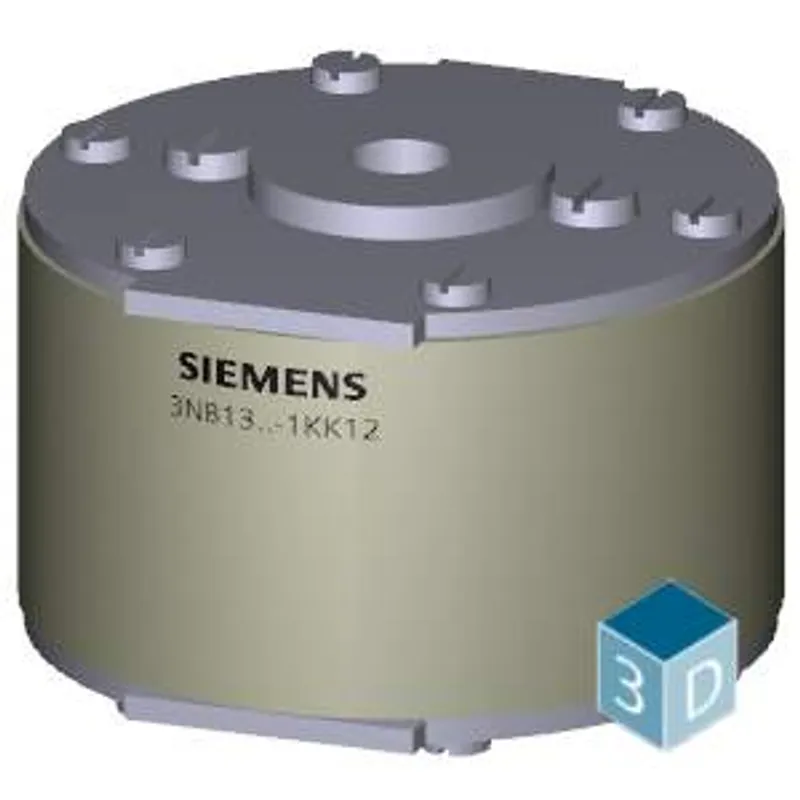

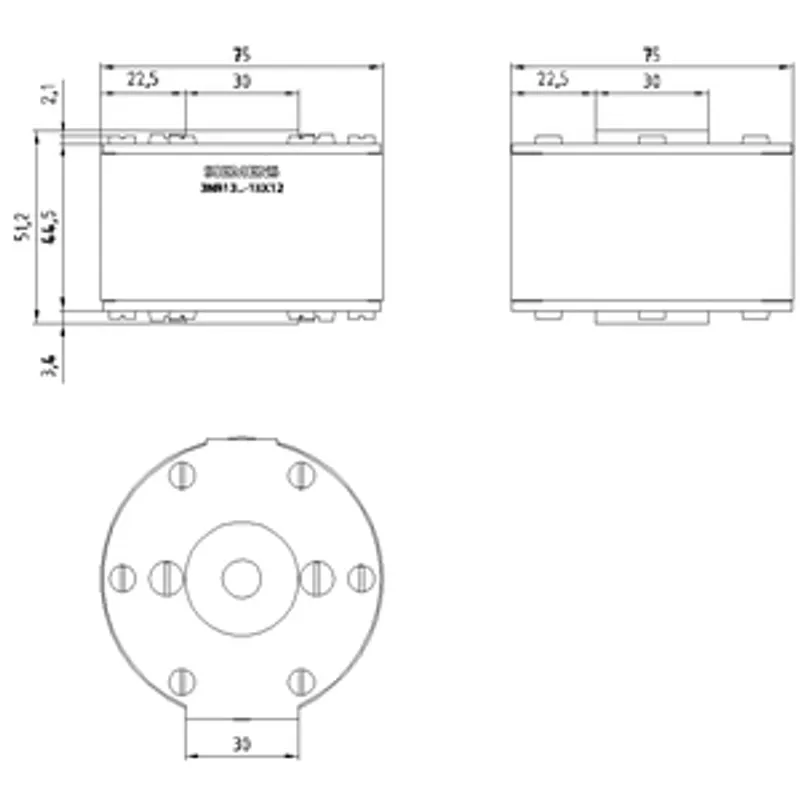

Siemens 3NB1347-1KK12
SITOR fuse size 3 900A aR 600V dc/1000V VSI 750V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
- MPN
- 3NB1347-1KK12
- Category
- LV HRC Design
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3NB1347-1KK12?
SITOR fuse size 3 900A aR 600V dc/1000V VSI 750V dc UL @MBC 6xIn screw connection M12 73mm flat contacts
Specifications
Model
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | With female thread on both sides |
| design of an identification indicator | with front indicator |
| design of the switching contact | M12 73mm flat contacts |
| design of the fuse link | SITOR, LV HRC design |
General technical data
| size of fuse system according to EN 60269-1 | NH3 |
| operating class of the fuse link | aR |
| type of voltage of the operating voltage | DC |
Supply voltage
| supply voltage — at DC | 600 V |
Breaking Capacity
| switching capacity current — at DC according to IEC 60947-2 rated value | 100 kA |
| switching capacity current — according to IEC 60947-2 rated value | 100 kA |
Dissipation
| power loss [W] | 160 W |
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 160 W |
| power loss [W] — maximum | 160 W |
Product details
| product description | with female thread on both sides, silver-plated |
| accessories included | no |
Mechanical Design
| mounting position | Any, preferably vertical |
| Net Weight | 953 g |
Environmental conditions
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
