LV HRC Design Parts
Compare LV HRC Design
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | size of fuse system according to EN 60269-1 | power loss [W] | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|

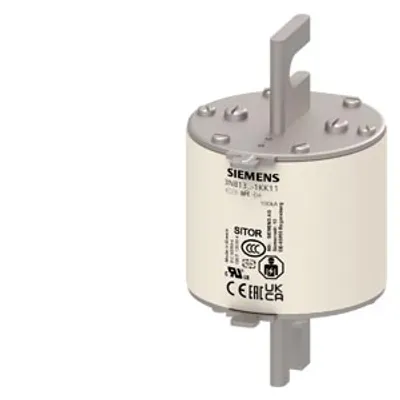

| 3NB1347-1KK11 | NH3 | 145 W | 145 W | 145 W | 1 kg |

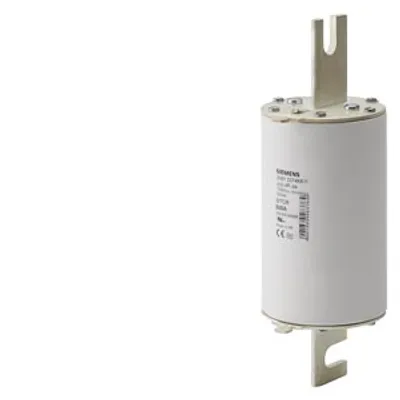

| 3NB1345-4KK11 | NH3L | 135 W | 135 W | 135 W | 1.886 kg |

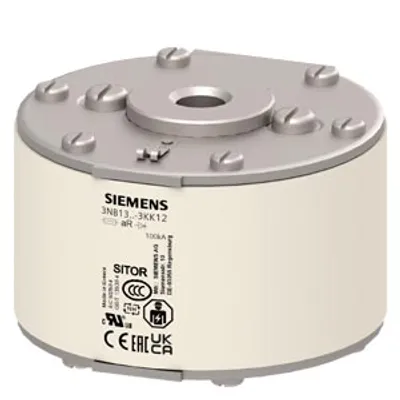

| 3NB1345-3KK12 | NH3 | 145 W | 145 W | 145 W | 950 g |
| 3NE3225 | NH1 | 42 W | 42 W | 42 W | 573 g |
| 3NE3224 | NH1 | 42 W | 42 W | 42 W | 563 g |

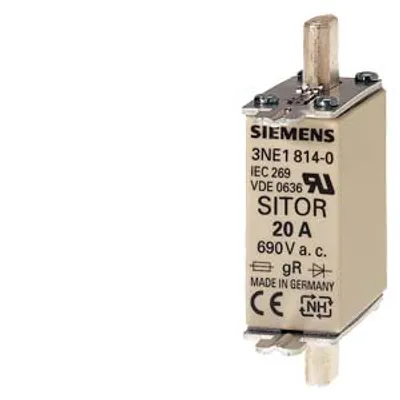

| 3NE1814-0 | NH000 | 5 W | 5 W | 5 W | 134 g |
| 3NE1437-3 | NH3 | 72 W | 72 W | 72 W | 1.152 kg |
| 3NE1437-2 | NH3 | 72 W | 72 W | 72 W | 1.189 kg |
| 3NE1437-1 | NH3 | 65 W | 65 W | 65 W | 1.149 kg |
| 3NE1437-0 | NH3 | 58 W | 58 W | 58 W | 1.194 kg |

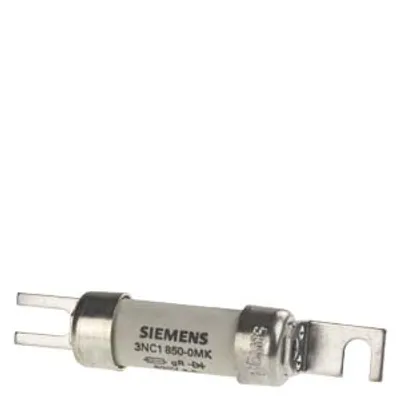

| 3NC1850-0MK | Other (BS) | 13.8 W | 13.8 W | 13.8 W | 0.043 kg |
| 3NC1840-0MK | Other (BS) | 11 W | 11 W | 11 W | 43 g |
| 3NC1832-0MK | Other (BS) | 9.8 W | 9.8 W | 9.8 W | 42 g |
| 3NE3432-0C | NH3 | 110 W | 110 W | 110 W | 1.192 kg |

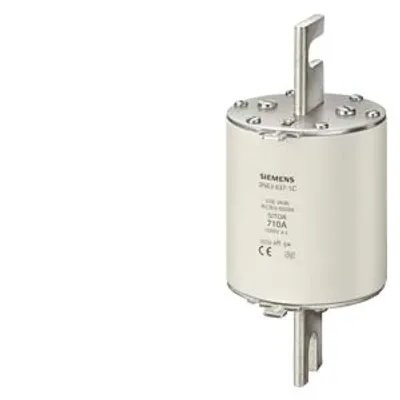

| 3NE3430-0C | NH3 | 80 W | 80 W | 80 W | 1.224 kg |
| 3NE3421-0C | NH3 | 25 W | 25 W | 25 W | 1 223 g |

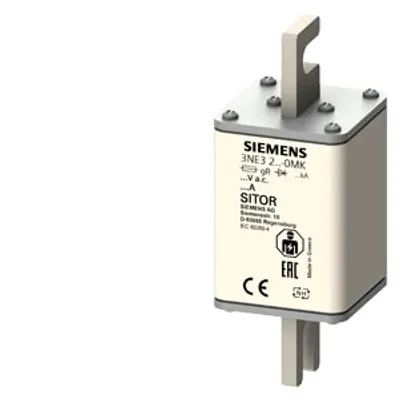

| 3NE3235-0MK08 | NH1 | 110 W | 110 W | 110 W | 627 g |
| 3NE3234-0MK08 | NH1 | 105 W | 105 W | 105 W | 0.593 kg |
| 3NE3233 | NH1 | 95 W | 95 W | 95 W | 586 g |

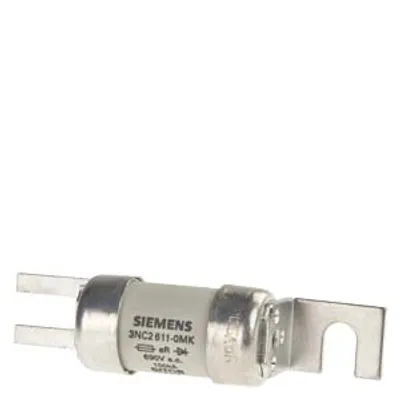

| 3NC2600-0MK | Other (BS) | 31.5 W | 31.5 W | 31.5 W | 0.099 kg |

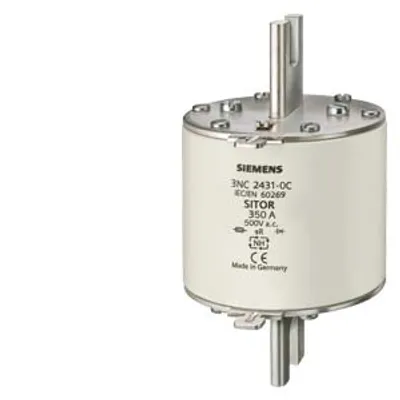

| 3NC2423-0C | NH3 | 35 W | 35 W | 35 W | 1.044 kg |
| 3NE1334-2 | NH2 | 64 W | 64 W | 64 W | 808 g |

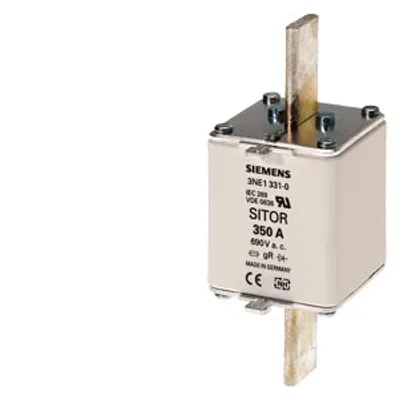

| 3NE1334-0 | NH2 | 56 W | 56 W | 56 W | 804 g |
| 3NE1227-3 | NH1 | 37 W | 37 W | 37 W | 577 g |
Common to all listed parts
| product designation | SITOR fuse link |
| accessories included | no |
| mounting position | Any, preferably vertical |
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
