Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

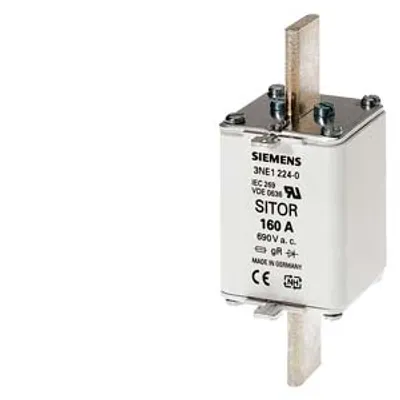

| MPN | size of fuse system according to EN 60269-1 | power loss [W] | power loss [W] — for rated value of the current at AC in hot operating state per pole | power loss [W] — maximum | Net Weight |
|---|---|---|---|---|---|
| 3NE1227-2 | NH1 | 37 W | 37 W | 37 W | 602 g |
| 3NE1227-0 | NH1 | 30 W | 30 W | 30 W | 573 g |

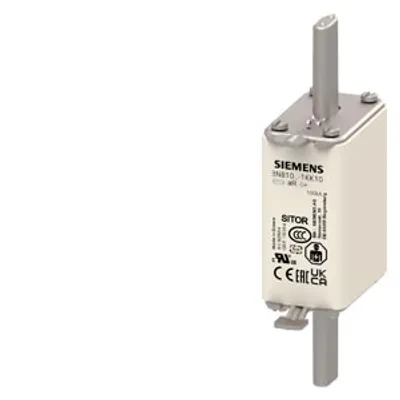

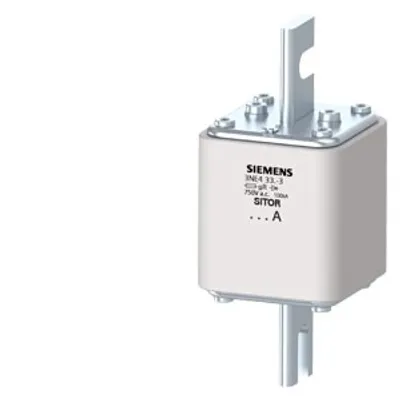

| 3NB1025-1KK10 | NH0 | 35 W | 35 W | 35 W | 261.874 g |
| 3NB1024-1KK10 | NH0 | 30 W | 30 W | 30 W | 247.874 g |
| 3NB1023-1KK10 | NH0 | 24 W | 24 W | 24 W | 249.874 g |
| 3NE4333-3 | NH2 | 70 W | 70 W | 70 W | 810 g |

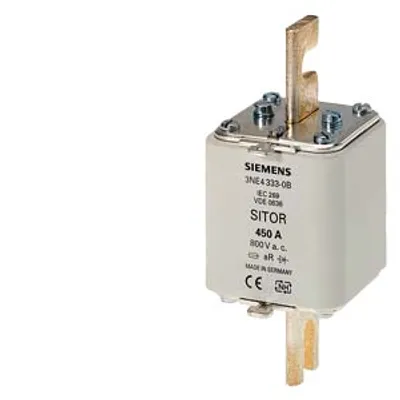

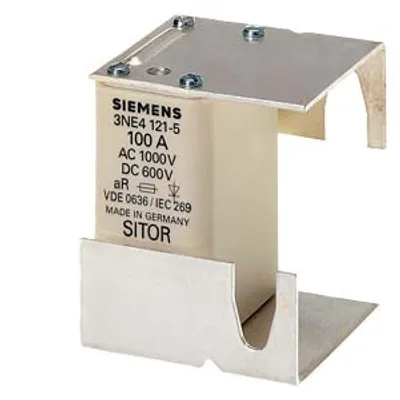

| 3NE4333-0B | NH2 | 140 W | 140 W | 140 W | 810 g |
| 3NE4117-5 | others | 20 W | 20 W | 20 W | 293.105 g |

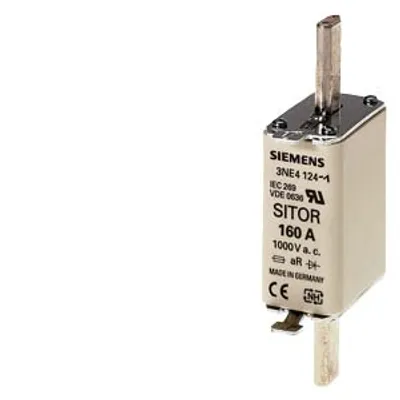

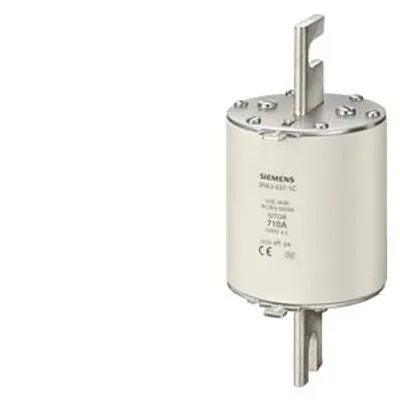

| 3NE4117 | NH0 | 16 W | 16 W | 16 W | 262.874 g |
| 3NE4102 | NH0 | 13 W | 13 W | 13 W | 257.874 g |
| 3NE4101 | NH0 | 12 W | 12 W | 12 W | 257.874 g |
| 3NE3637-1C | NH3 | 145 W | 145 W | 145 W | 1.246 kg |

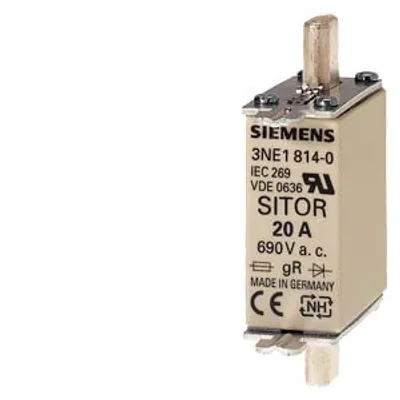

| 3NE1820-0 | NH000 | 8 W | 8 W | 8 W | 130 g |
| 3NE1448-3 | NH3 | 76 W | 76 W | 76 W | 1.144 kg |

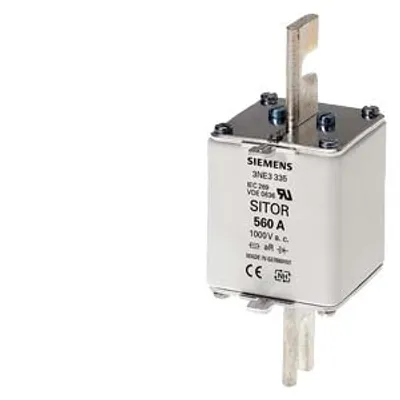

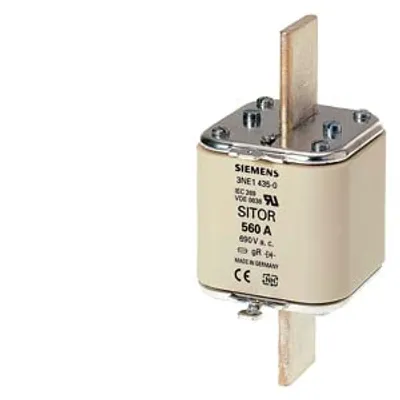

| 3NE1438-3 | NH3 | 84 W | 84 W | 84 W | 1.147 kg |
| 3NE1438-2 | NH3 | 84 W | 84 W | 84 W | 1.18 kg |
| 3NE1438-1 | NH3 | 72 W | 72 W | 72 W | 1.152 kg |
| 3NE1438-0 | NH3 | 58 W | 58 W | 58 W | 1.184 kg |
| 3NC1825-0MK | Other (BS) | 8.7 W | 8.7 W | 8.7 W | 0.043 kg |

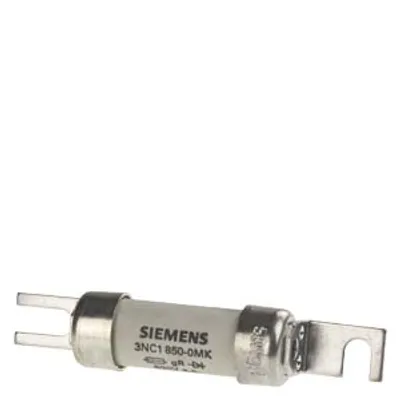

| 3NC1820-0MK | Other (BS) | 6.8 W | 6.8 W | 6.8 W | 0.043 kg |
| 3NC1816-0MK | Other (BS) | 5.2 W | 5.2 W | 5.2 W | 0.042 kg |
| 3NC1810-0MK | Other (BS) | 4.6 W | 4.6 W | 4.6 W | 0.042 kg |

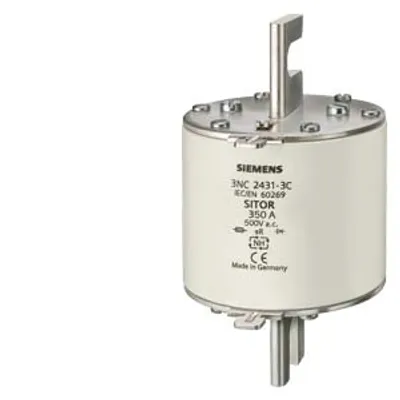

| 3NC8427-3C | NH3 | 72 W | 72 W | 72 W | 1.063 kg |

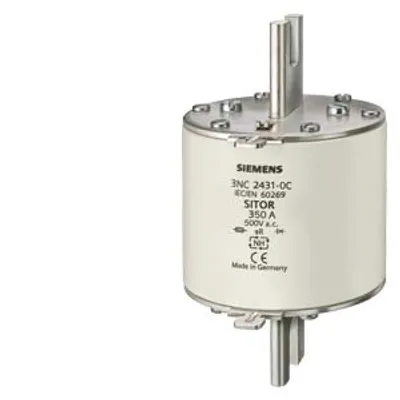

| 3NC8427-0C | NH3 | 72 W | 72 W | 72 W | 1.065 kg |
Common to all listed parts
| product designation | SITOR fuse link |
| switching capacity current — according to IEC 60947-2 rated value | 100 kA |
| accessories included | no |
| mounting position | Any, preferably vertical |
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
