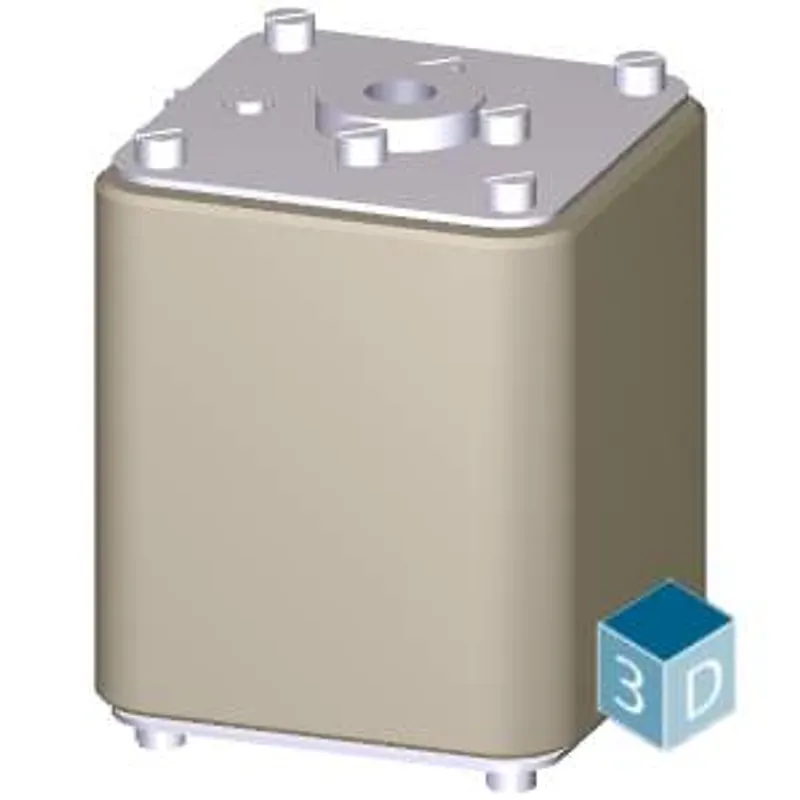

Siemens 3NE4330-6B

SITOR fuse link, with female thread on both sides, In: 315 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator

MPN: 3NE4330-6B
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NE4330-6B?

SITOR fuse link, with female thread on both sides, In: 315 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link

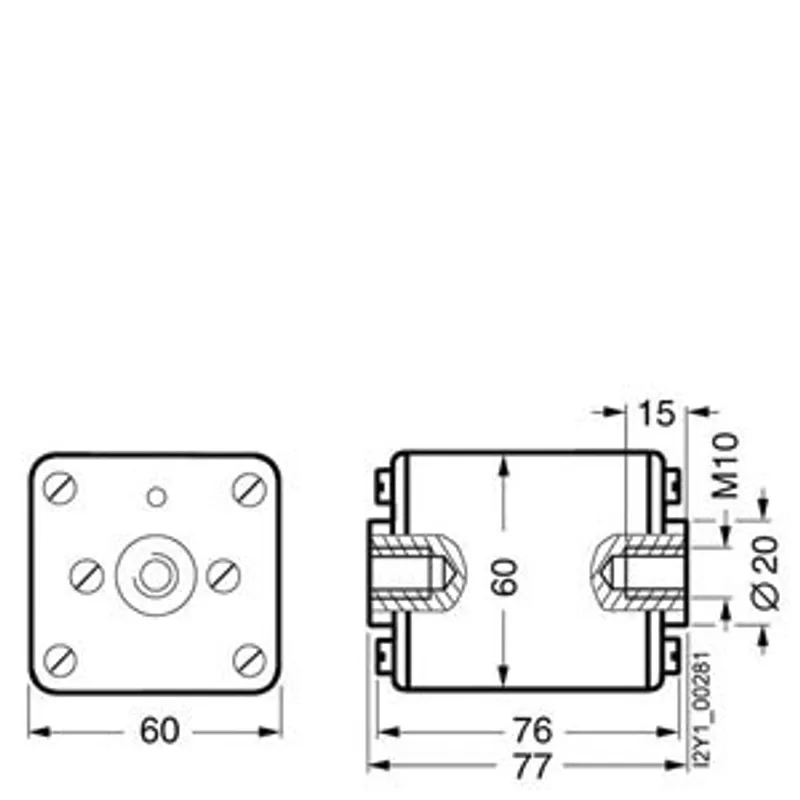

design of the product	With female thread on both sides
design of an identification indicator	front indicator
design of the switching contact	with female thread at both ends for SITOR 6QG12 thyristor sets
design of the fuse link	Fuses for special applications

General technical data

size of fuse system according to EN 60269-1	others
operating class of the fuse link	aR
varying load factor (WL)	0.85
type of voltage of the operating voltage	AC/DC
operating voltage at AC according to UL rated value	800 V

Supply voltage

supply voltage — at AC	800 V
supply voltage — at DC	440 V

Breaking Capacity

switching capacity current — according to IEC 60947-2 rated value

100 kA

Dissipation

power loss [W]	120 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	120 W
power loss [W] — maximum	120 W

Product details

product description	with female thread on both sides, silver-plated
accessories included	no

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	690 g

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity
