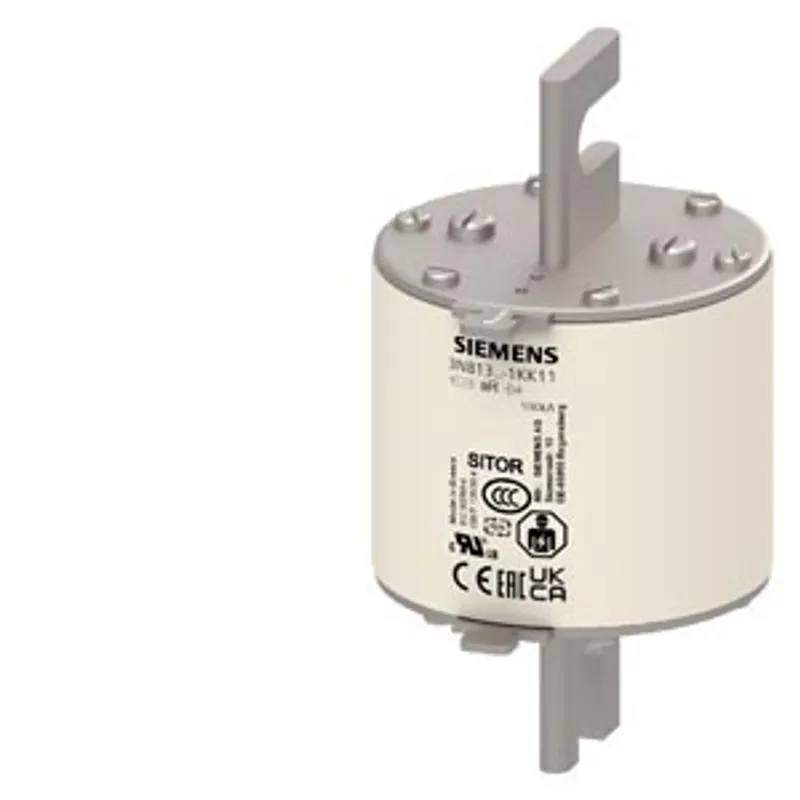

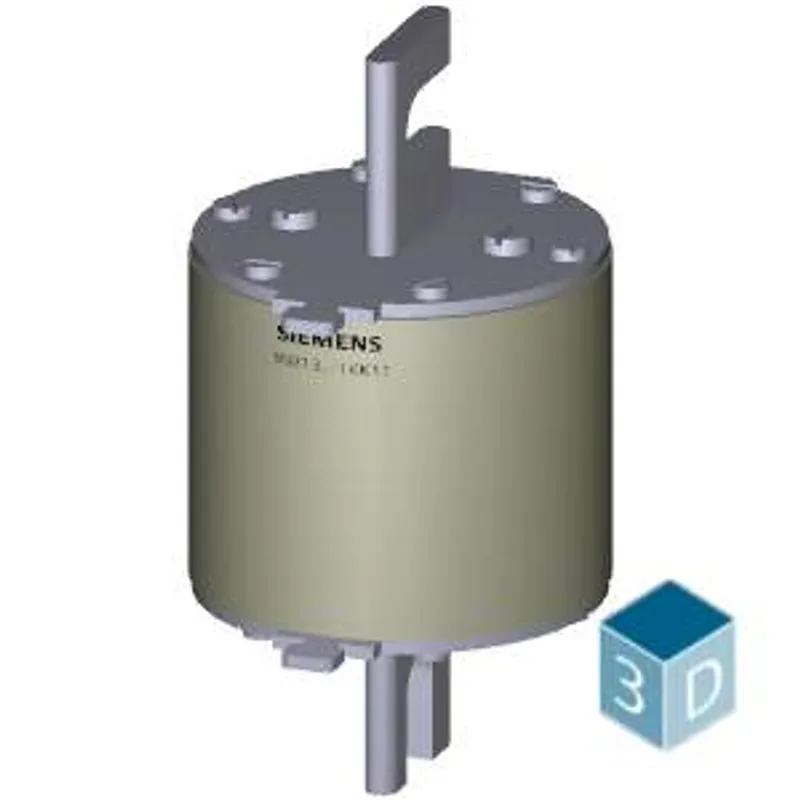

Siemens 3NB1352-1KK11

SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC 6xIn screw connection M12 110mm slotted knives

MPN: 3NB1352-1KK11
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NB1352-1KK11?

SITOR fuse size 3 1250A aR 500V dc/900V VSI 600V dc UL @MBC 6xIn screw connection M12 110mm slotted knives

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link
design of the product	With slotted blade contacts
design of an identification indicator	with front indicator
design of the switching contact	M12 110 mm slotted blade
design of the fuse link	SITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1	NH3
operating class of the fuse link	aR
type of voltage of the operating voltage	DC

Supply voltage

supply voltage — at DC

500 V

Breaking Capacity

switching capacity current — at DC according to IEC 60947-2 rated value	100 kA
switching capacity current — according to IEC 60947-2 rated value	100 kA

Dissipation

power loss [W]	175 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	175 W
power loss [W] — maximum	175 W

Product details

product description	with slotted blade contacts, silver-plated
accessories included	no

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	1 kg

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity
