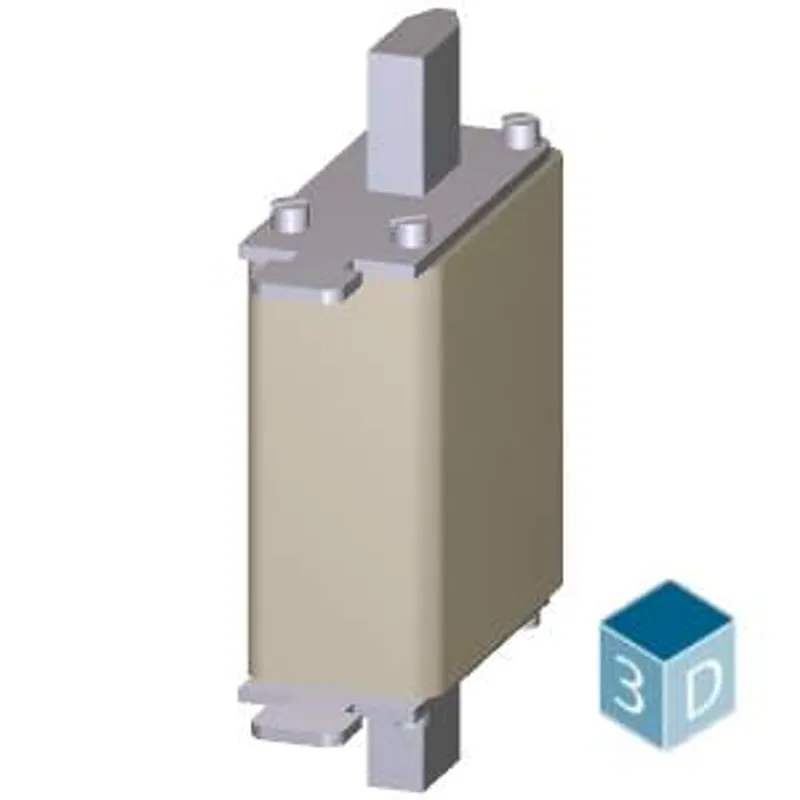

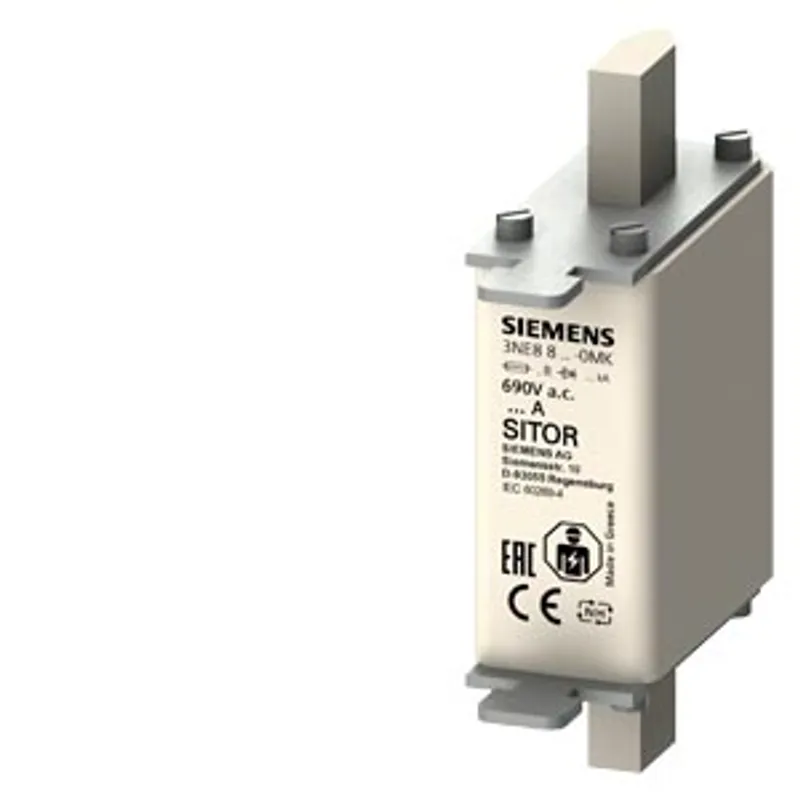

Siemens 3NE8810-0MK

SITOR fuse link, with blade contacts, NH000, In: 6 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator

MPN: 3NE8810-0MK
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NE8810-0MK?

SITOR fuse link, with blade contacts, NH000, In: 6 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link
design of the product	with blade contacts without slots
design of an identification indicator	front indicator
design of the switching contact	with blade contacts for mounting in LV HRC fuse bases or switch disconnectors
design of the fuse link	SITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1	NH000
operating class of the fuse link	gR
type of voltage of the operating voltage	AC/DC

Supply voltage

supply voltage — at AC	690 V
supply voltage — at DC	440 V

Breaking Capacity

switching capacity current — at DC according to IEC 60947-2 rated value	50 kA
switching capacity current — according to IEC 60947-2 rated value	100 kA

Dissipation

power loss [W]	2.7 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	2.7 W
power loss [W] — maximum	2.7 W

Product details

product description	with blade contacts, silver-plated
accessories included	no

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	142 g

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity
