Drive and return unit AL Parts
Compare Drive and return unit AL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Size [b] [mm] | Delivery information | Weight [kg] | Actual chain length [m] | Effective sliding rail length [m] |
|---|---|---|---|---|---|

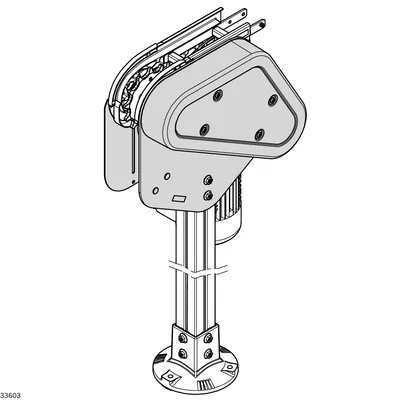

| 3842552900 | 120; 160; 240; 320; 65; 90 | Fully assembled | 12 | — | — |
| 3842547517 | 90 | Fully assembled | 1.89 | 2x 0,2 | 0,742 |
| 3842552985 | 90 | Fully assembled | 3.7 | 0,483 | 4x 117 |
| 3842547516 | 65 | Fully assembled | 1.84 | 2x 0,2 | 0,742 |
| 3842552984 | 65 | Fully assembled | 3.5 | 0,483 | 4x 117 |
| 3842547521 | 320 | Fully assembled | 3.54 | 0,742 | 4x 0,2 |
| 3842547520 | 240 | Fully assembled | 3.08 | 0,742 | 4x 0,2 |
| 3842547519 | 160 | Fully assembled | 2.64 | 0,742 | 4x 0,2 |
| 3842547518 | 120 | Fully assembled | 1.95 | 2x 0,2 | 0,742 |
| 3842552941 | 90 | Assembled, profile connector enclosed | 4.28 | 2x 514 | 1,1385 |
| 3842546121 | 90 | Assembled: chain guards enclosed | 4.01 | 2x 0,2 | 0,881 |
| 3842547381 | 90 | Not assembled | 5.6 | 0,72 | 0,91 |
| 3842547713 | 90 | Fully assembled | 10.32 | 1,51 | 4x 0,2 |
| 3842552940 | 65 | Assembled, profile connector enclosed | 4 | 2x 514 | 1,1385 |
| 3842546120 | 65 | Assembled: chain guards enclosed | 3.96 | 2x 0,2 | 0,881 |
| 3842547380 | 65 | Not assembled | 5.6 | 0,68 | 0,82 |
| 3842547712 | 65 | Fully assembled | 10.22 | 1,51 | 4x 0,2 |
| 3842546125 | 320 | Assembled: chain guards enclosed | 6.04 | 0,881 | 4x 0,2 |
