Bosch Rexroth 3842547519

RETURN 160+ AL

MPN: 3842547519
Category: Drive and return unit AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547519?

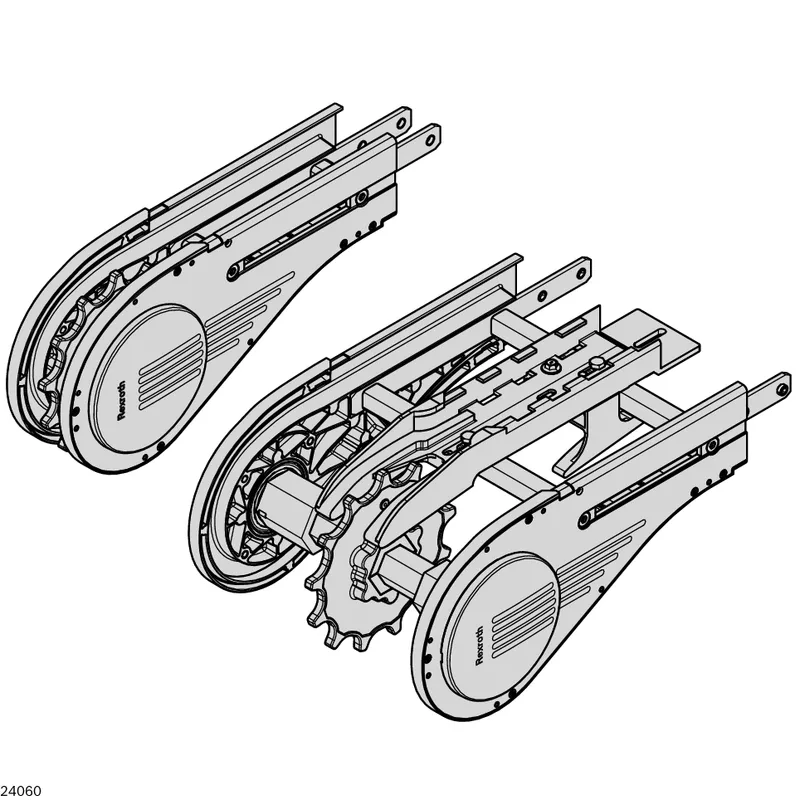

Return unit AL; VFplus 160

Reduced noise emission due to slide rails guided in the return unit

Installation of the drive kit possible on the right/left (motor, coupling, flange)

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Side elements with slot to attach holders for lateral guides, or similar

Specifications

Material information	Housing: Diecast aluminum, powder-coated; Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Steel, galvanized; Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA
Actual chain length [m]	0,742
Effective sliding rail length [m]	4x 0,2
Size [b] [mm]	160
Track width in direction of transport [b] [mm]	160
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Required accessories	For use as a drive:Assembly moduleDrive kitMotor support; Slide rail: Length calculation
Weight [kg]	2.64
