Bosch Rexroth 3842547381

BASE UNIT 90+ AL CURVE WHEEL

MPN: 3842547381
Category: Drive and return unit AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547381?

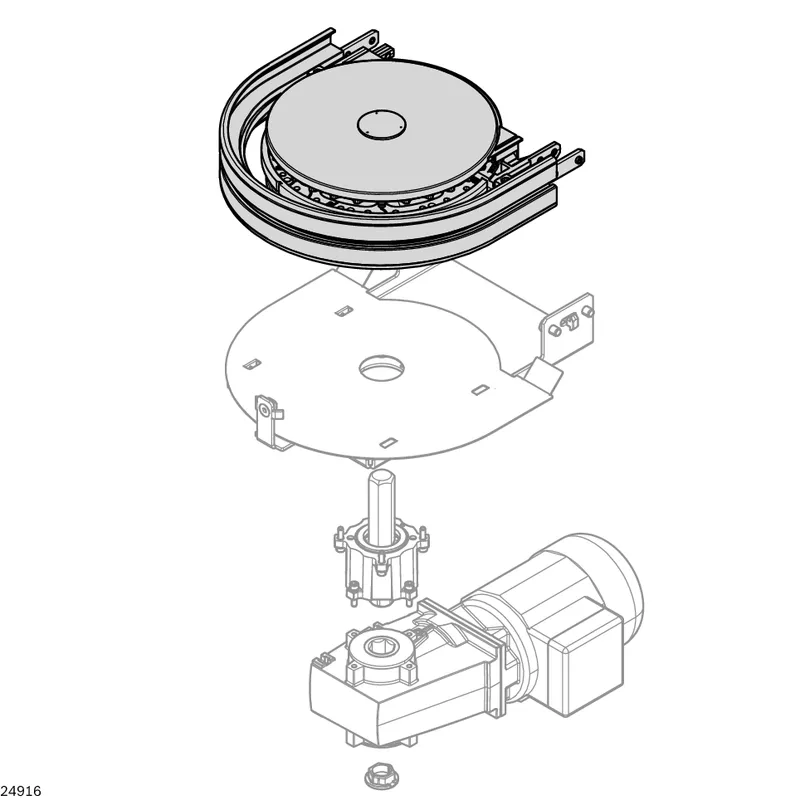

Base unit KRA AL VFplus 90

Basic unit curve wheel drive AF + drive kit curve wheel drive = curve wheel drive

Driving several superimposed basic curve wheel units (alpine conveyor) is easily implemented via the integrated hexagonal hollow shafts

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Side elements with slot to attach holders for lateral guides, or similar

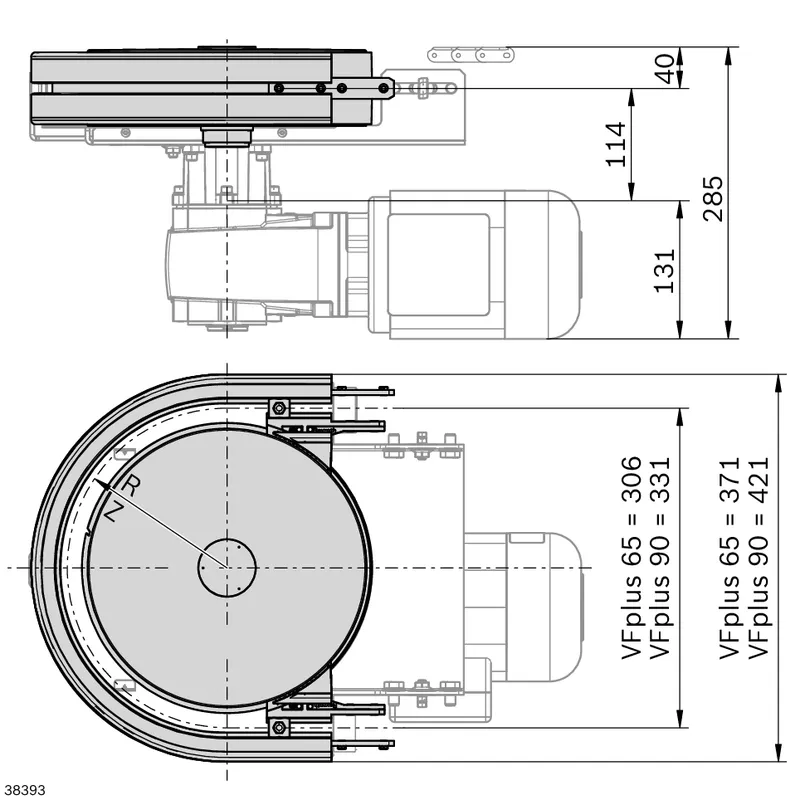

Specifications

Deflection angle [α] [°]	180
Size [b] [mm]	90
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA, white; Housing: Diecast aluminum
Actual chain length [m]	0,72
Effective sliding rail length [m]	0,91
Required accessories	Assembly module; Drive kit curve wheel; Leg set; Slide rail: Length calculation
Recommended accessories	Connection kit alpine conveyor
Weight [kg]	5.6
