Bosch Rexroth 3842552985

RETURN 90+ 90°

MPN: 3842552985
Category: Drive and return unit AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842552985?

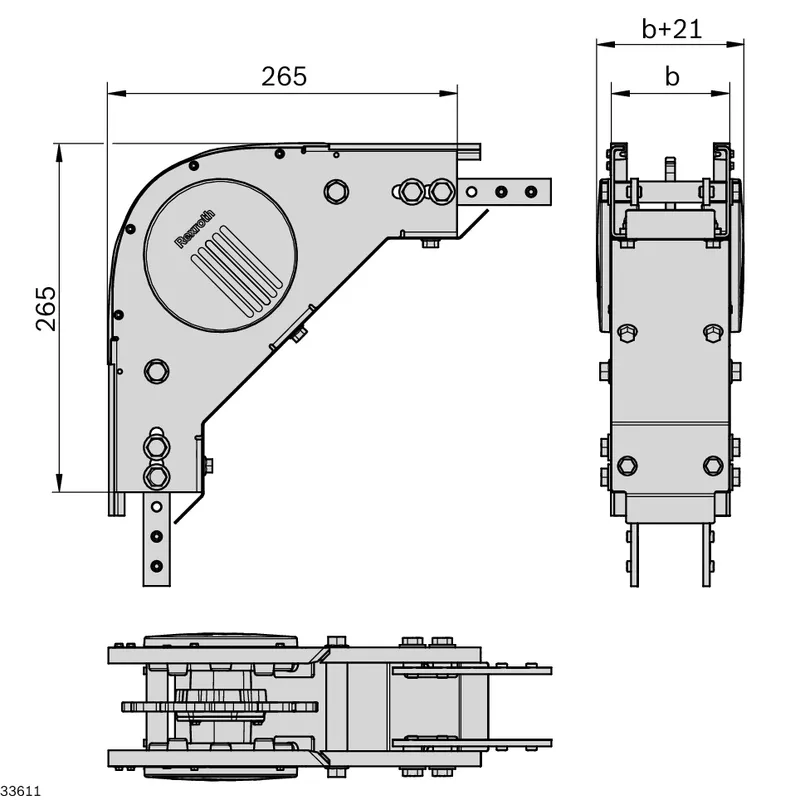

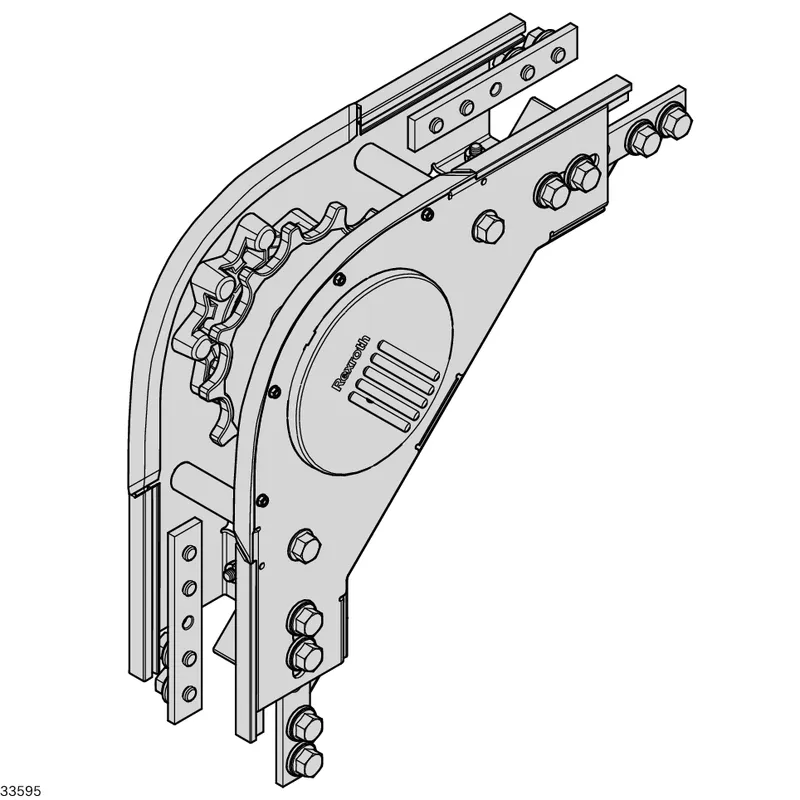

Return unit 90°; VF plus 90

Advantage over alpine conveyor with head drive:

- Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger

- No longer necessary to mount the slide rails required for the chain return on the bottom side of the profile

- The required conveyor chain is shorter

Specifications

Packaging unit	1
Size [b] [mm]	90
Scope of delivery	For AL systems: Adapter AL-STS; Incl. fastening material
Delivery information	Fully assembled
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Non-rusting steel 1.4301; Hexagonal shaft: PA; Housing: Non-rusting steel 1.4301
Actual chain length [m]	0,483
Effective sliding rail length [m]	4x 117
Weight [kg]	3.7
