Home / Bosch Rexroth / Drive and return unit AL / Bosch Rexroth 3842546121

Bosch Rexroth

Bosch Rexroth 3842546121

BASE UNIT 90+ AL DIRECT

MPN: 3842546121
Category: Drive and return unit AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842546121?

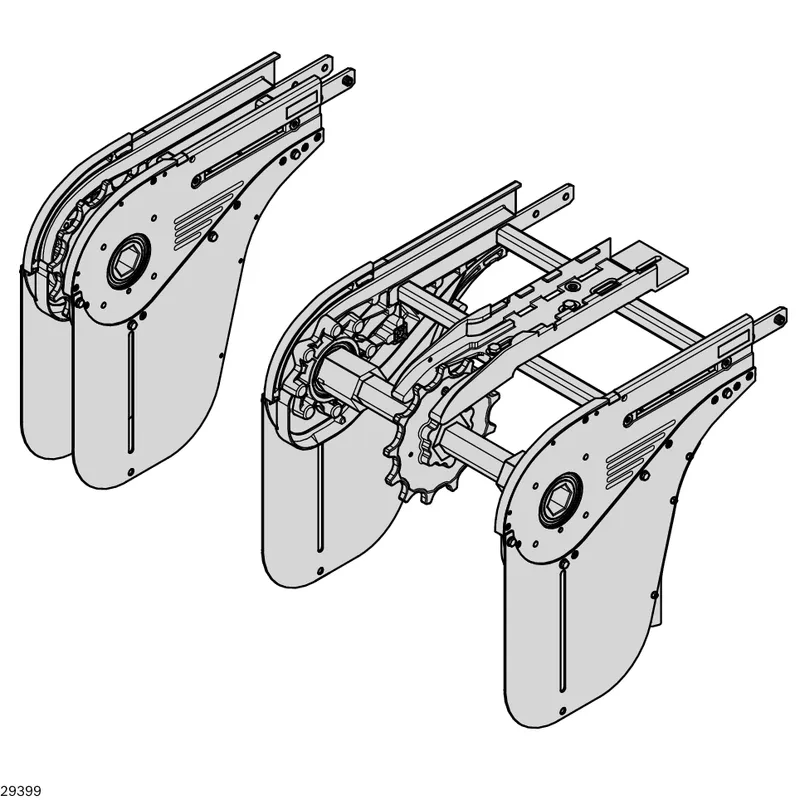

Base unit AL, VFplus 90 dir.

Base unit AL direct + drive kit = a complete head drive

Reduced noise emission due to slide rails guided in the head drive

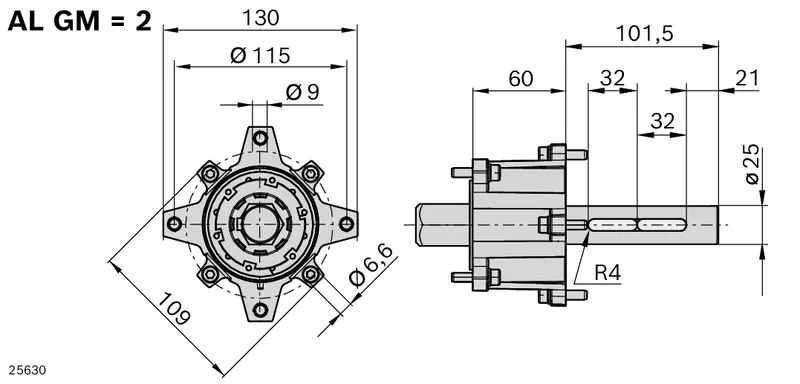

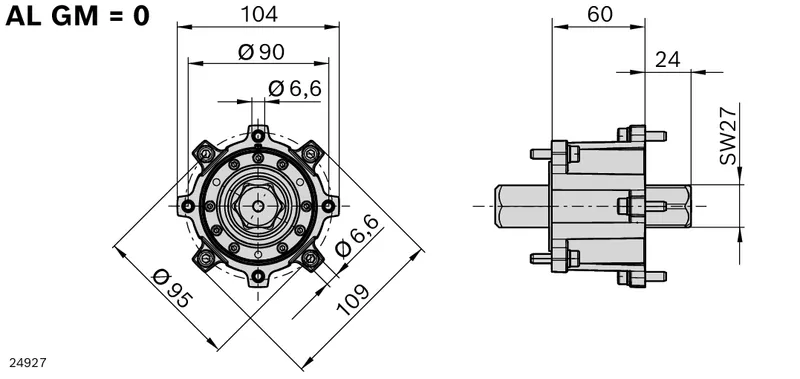

Installation of the drive kit possible on the right/left (motor, coupling, flange)

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Implementation of parallel sections with gap dimension down to zero

Side elements with slot to attach holders for lateral guides, or similar

A chain sprocket must be used to limit the chain slipping back on inclined sections.

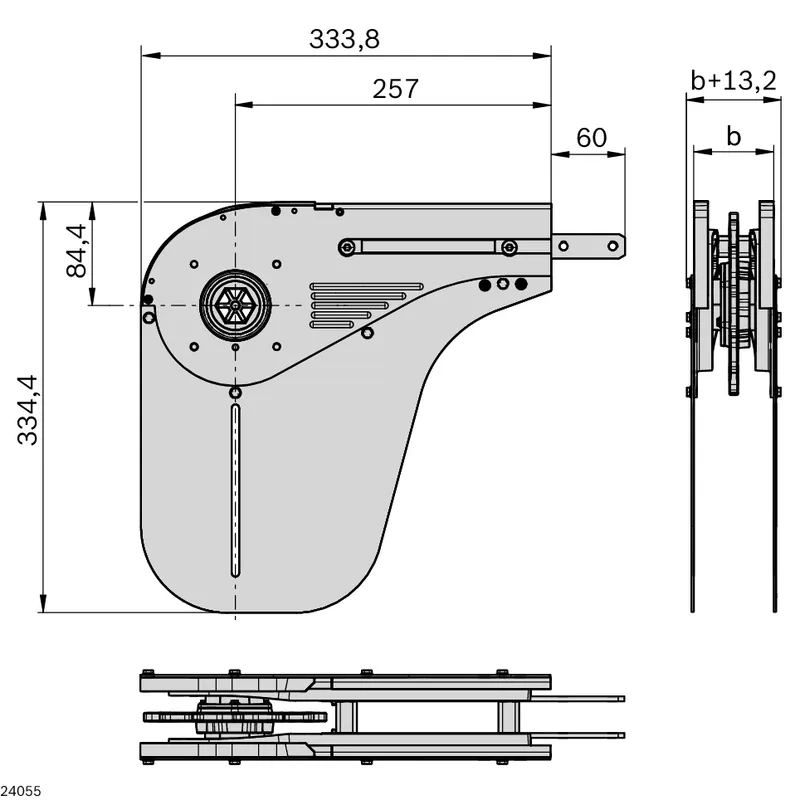

Specifications

Size [b] [mm]	90
Scope of delivery	Incl. fastening material
Delivery information	Assembled: chain guards enclosed
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Steel, galvanized; Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA; Housing: Diecast aluminum, powder-coated, silver
Actual chain length [m]	2x 0,2
Effective sliding rail length [m]	0,881
Required accessories	Drive kit; Motor support; Slide rail: Length calculation
Recommended accessories	Active or passive bridge connection kits; Synchronous drive connection kit
Weight [kg]	4.01
