Joint Parts
Compare Joint
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Modular dimension [mm] | Dimensions | Force F1 [N] | Material | Weight [kg] |
|---|---|---|---|---|---|

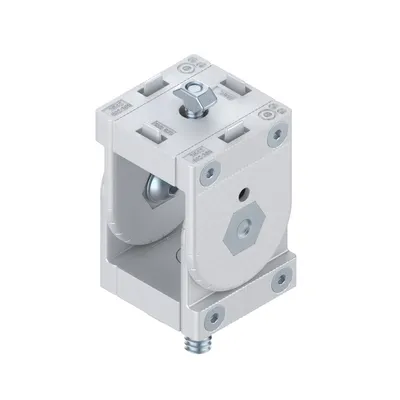

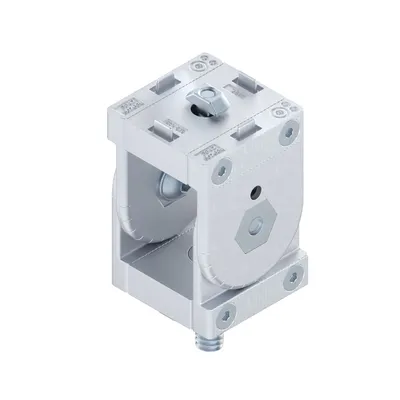

| 3842539800 | 60 | 60x60 | 20000 | Diecast zinc, painted | 1.25 |
| 3842502687 | 60 | 60x60 | 20000 | Diecast zinc | 1.26 |

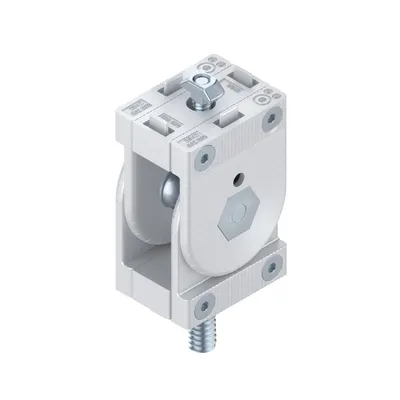

| 3842539799 | 60 | 60x60 | 15000 | Diecast zinc, painted | 1.1 |
| 3842502688 | 60 | 60x60 | 15000 | Diecast zinc | 1.1 |

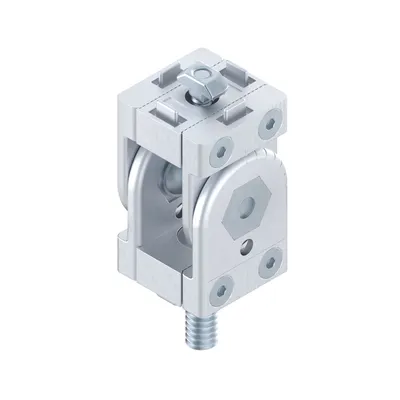

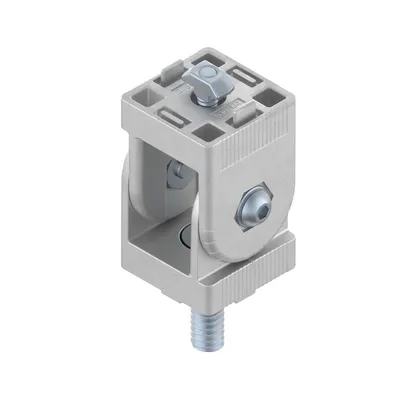

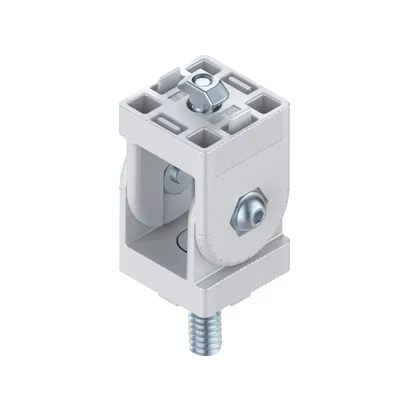

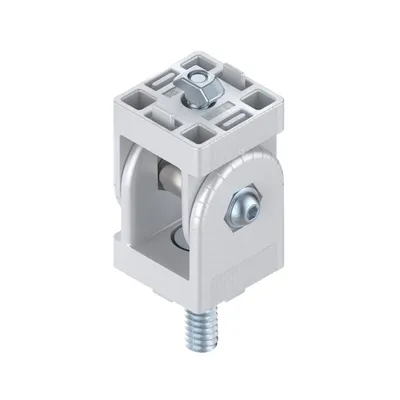

| 3842538687 | 45 | 45x45 | 15000 | Diecast aluminum, painted | 0.33 |

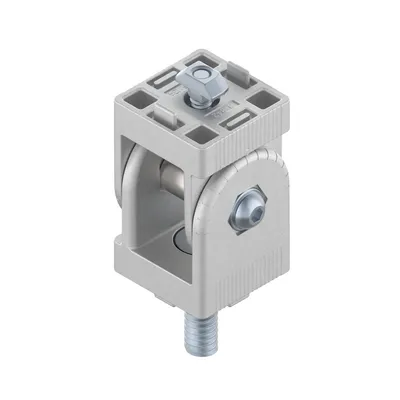

| 3842543404 | 45 | 45x45 | 15000 | Diecast aluminum | 0.33 |
| 3842538686 | 45 | 45x45 | 15000 | Diecast aluminum, painted | 0.32 |
| 3842546564 | 45 | 45x45 | — | Diecast zinc | 0.59 |
| 3842543403 | 45 | 45x45 | 15000 | Diecast aluminum | 0.32 |
| 3842502684 | 45 | 45x45 | 15000 | Diecast aluminum | 0.76 |

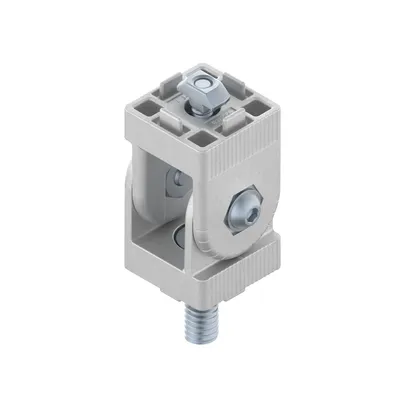

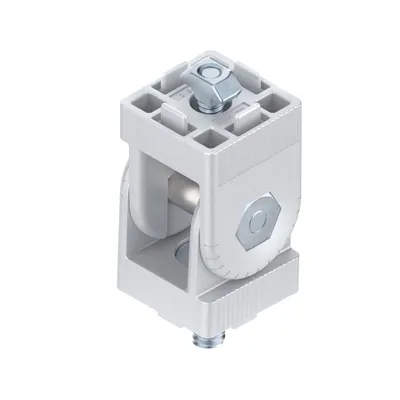

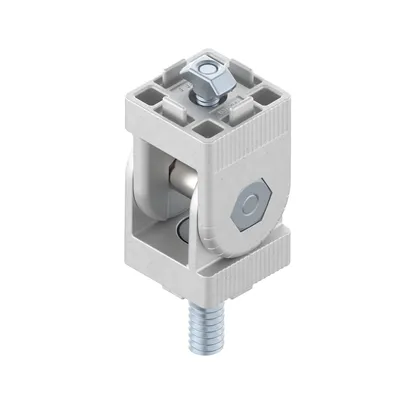

| 3842538685 | 40 | 40x40 | 15000 | Diecast aluminum, painted | 0.39 |
| 3842543402 | 40 | 40x40 | 15000 | Diecast aluminum | 0.31 |
| 3842538684 | 40 | 40x40 | 15000 | Diecast aluminum, painted | 0.27 |

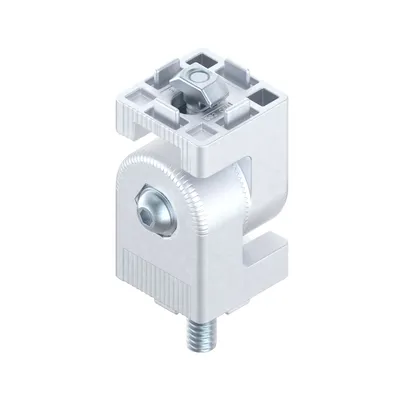

| 3842562087 | 40 | 40x40 | — | Diecast zinc | 0.53 |
| 3842543401 | 40 | 40x40 | 15000 | Diecast aluminum | 0.31 |

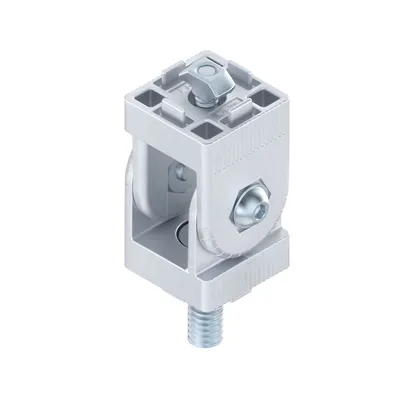

| 3842538683 | 30 | 30x30 | 10000 | Diecast zinc, painted | 0.2 |

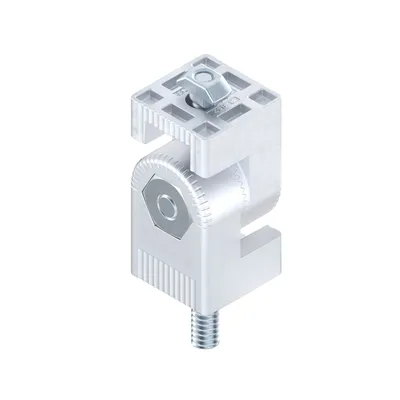

| 3842562086 | 30 | 30x30 | — | Diecast zinc | 0.29 |
| 3842502683 | 30 | 30x30 | 10000 | Diecast zinc | 0.2 |

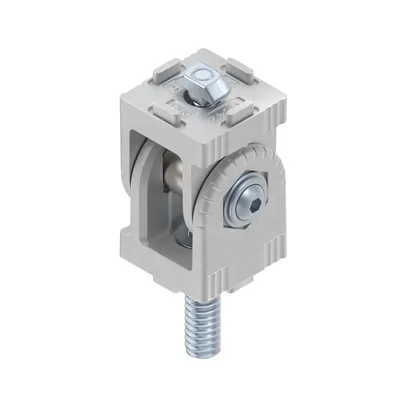

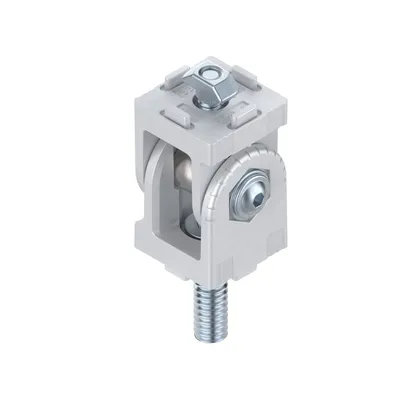

| 3842555665 | 20 | 20x20 | 3000 | Diecast aluminum, painted | 0.05 |
| 3842555659 | 20 | 20x20 | 3000 | Diecast aluminum | 0.05 |
| 3842516847 | — | — | — | — | 0.09 |

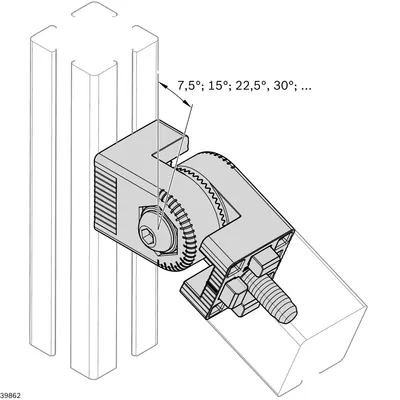

| 3842564090 | — | — | — | — | 0.09 |
| 3842538607 | — | — | — | — | 0.1 |

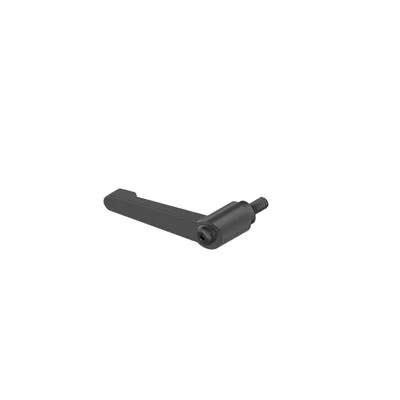

| 3842505144 | — | — | — | Diecast zinc, plastic coated | 0.04 |
