Bosch Rexroth 3842562086

JOINT 30X30 LOCKABLE

MPN: 3842562086
Category: Joint

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842562086?

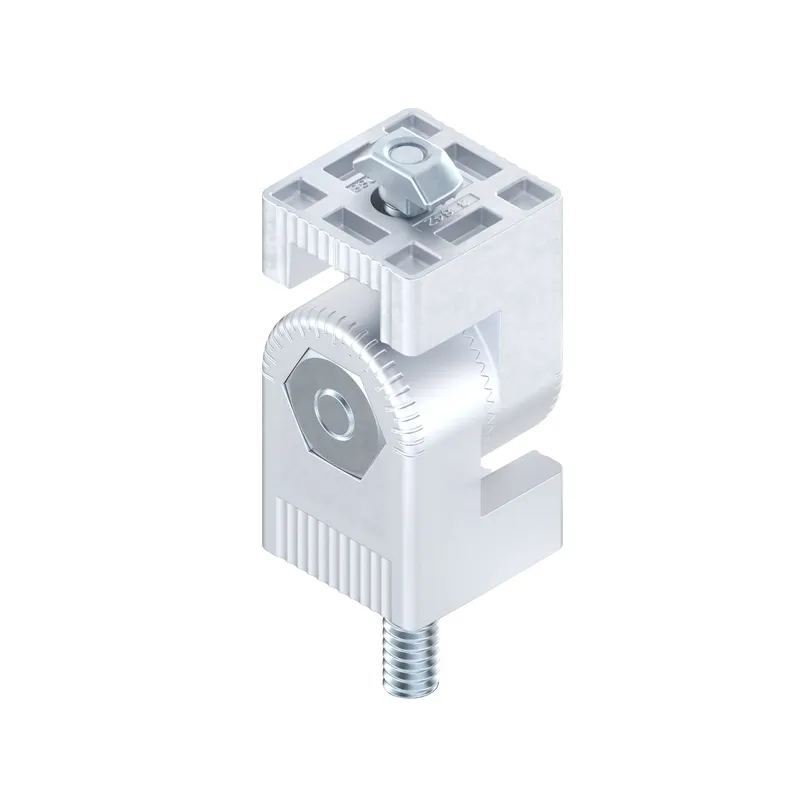

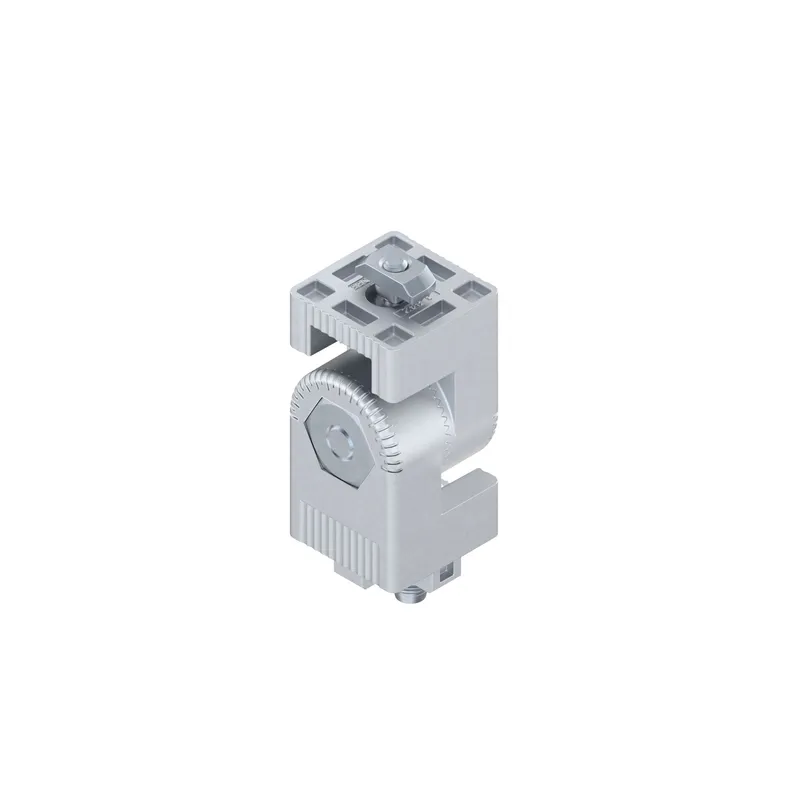

Joint 30x30 lockable

For adjustable or rigid profile connections

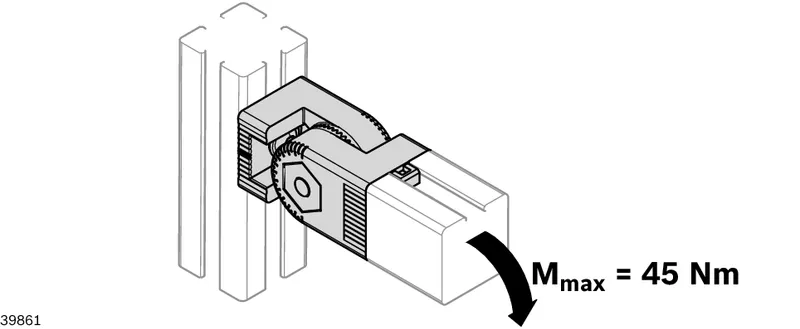

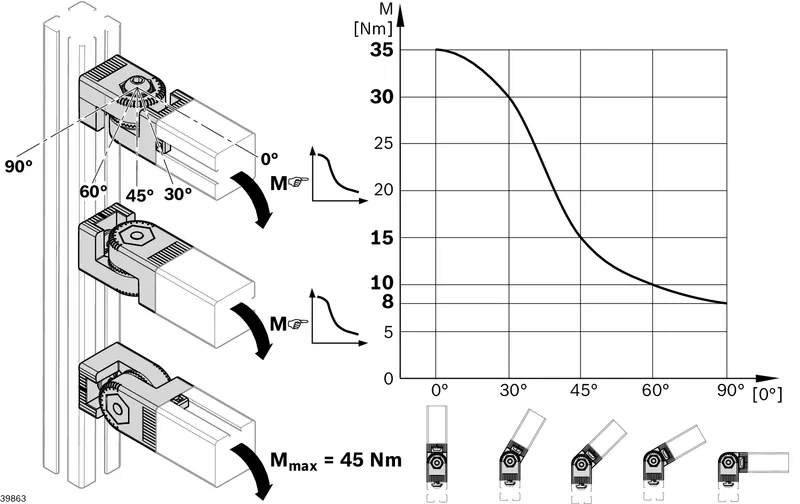

For high loads up to 45 Nm in the swivel direction

Positive interlocking thanks to Hirth toothed coupling

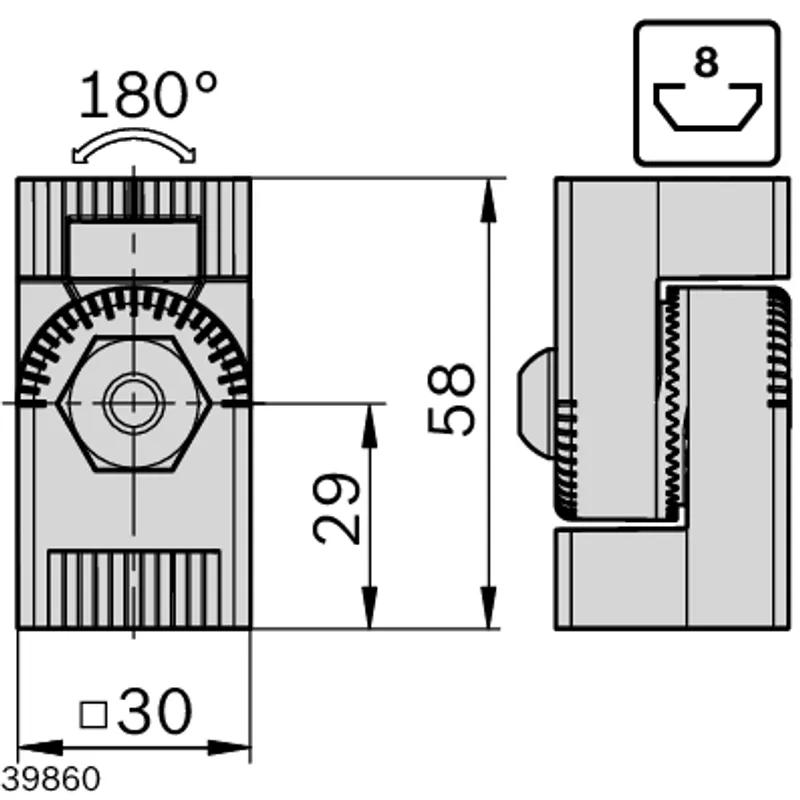

Swivel range 180°

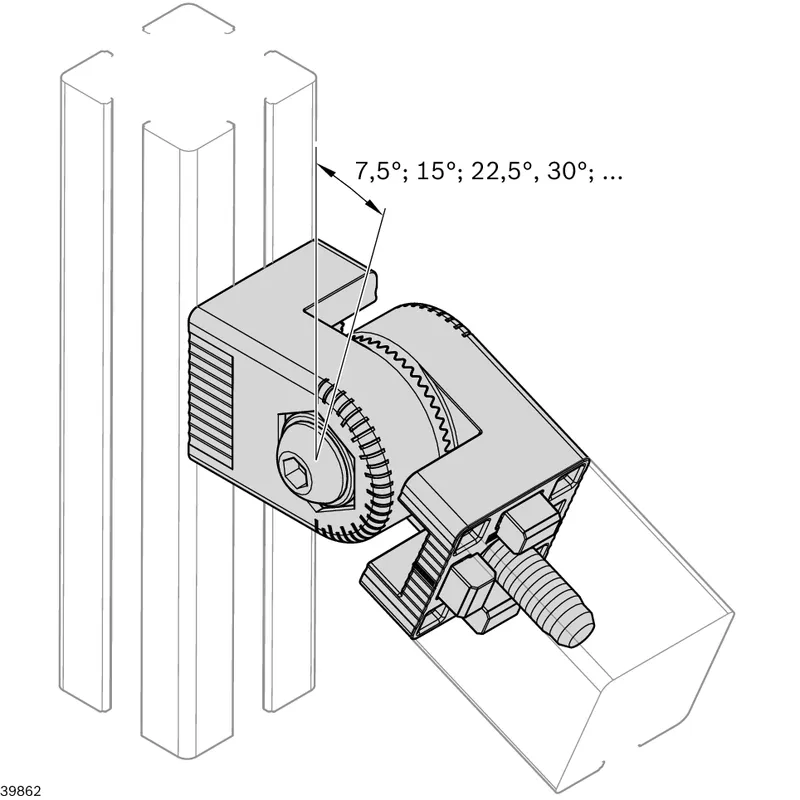

Easy adjustment in the 7,5° modular dimensions

Marking with a 7,5° graduation for easy detection of the adjustment angle

Clamping and convenient adjustment of joint using a clamping lever or screw

Profile finishing: Not required (self-cutting screw for end face to end face connection)

Compatible with joint 30x30

Specifications

Modular dimension [mm]	30
Profile slot	8
ESD	Yes
Dimensions	30x30
Packaging unit	1
Scope of delivery	6x centering piece PA6; Incl. fastening material
Material information	Fastening material: Steel, galvanized
Material	Diecast zinc
Fastening material	2x T-nut groove 8 M6; 2x flange head screw M6x12; 2x screw S8x25
Weight [kg]	0.29
