JOINT 30X30
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Joint |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842502683 be shipped?
3842502683 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842502683 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842502683 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842502683, subject to availability and destination.

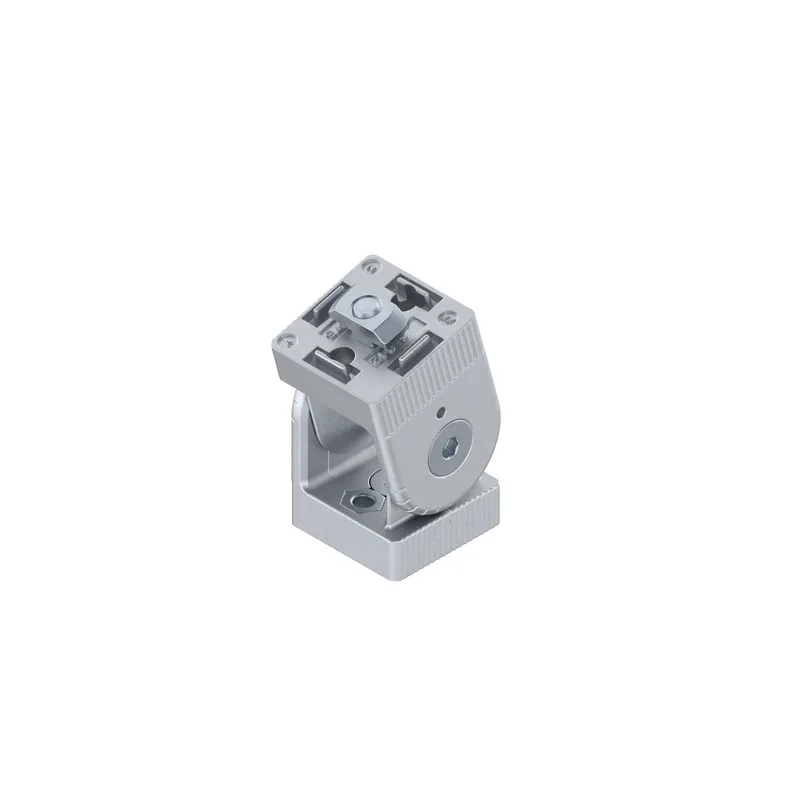

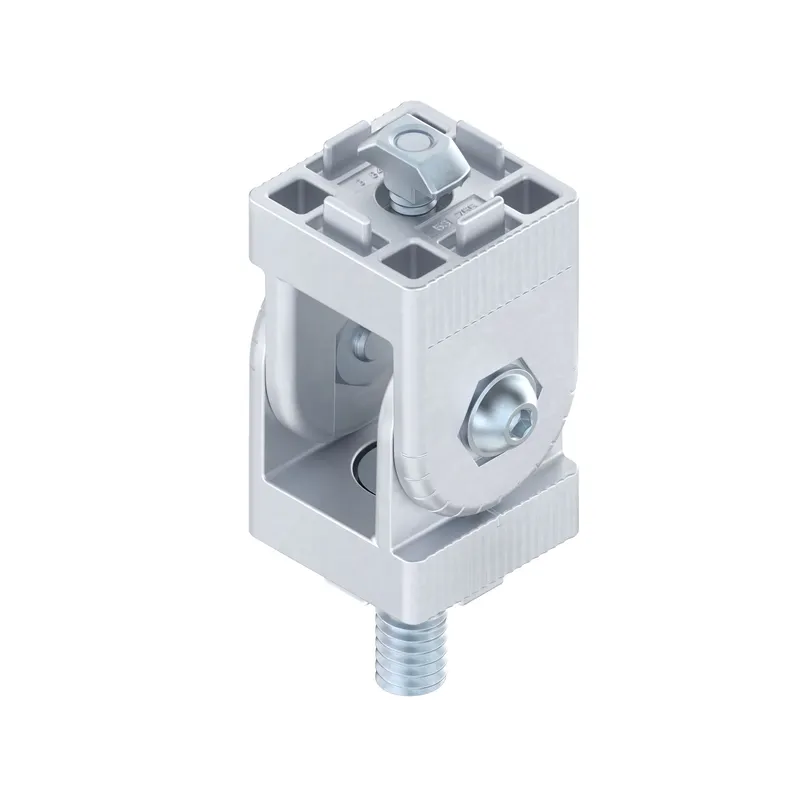

Joint 30x30 standard For movable or rigid profile connections at any angle Swivel range 182° With marking in 15° increments Locking by clamping (5 Nm) or fixing with pins (15 Nm) Profile finishing: Through-hole D11 for end face profile connections
Specifications
Specifications

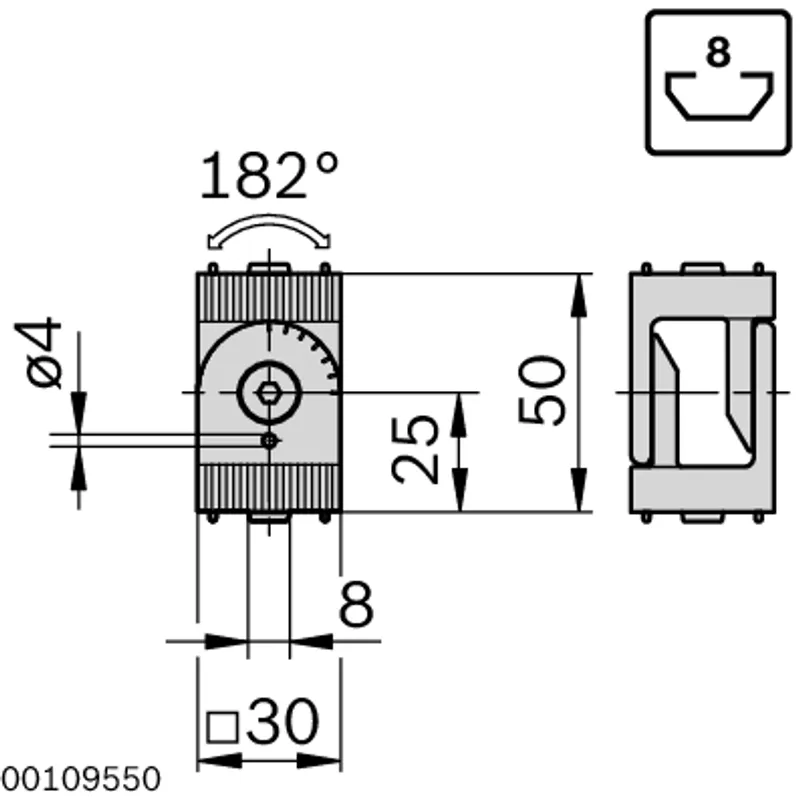

| Modular dimension [mm] | 30 |
| Profile slot | 8 |
| ESD | Yes |
| Dimensions | 30x30 |
| Swivel range [°] | 182 |
| Packaging unit | 1 |

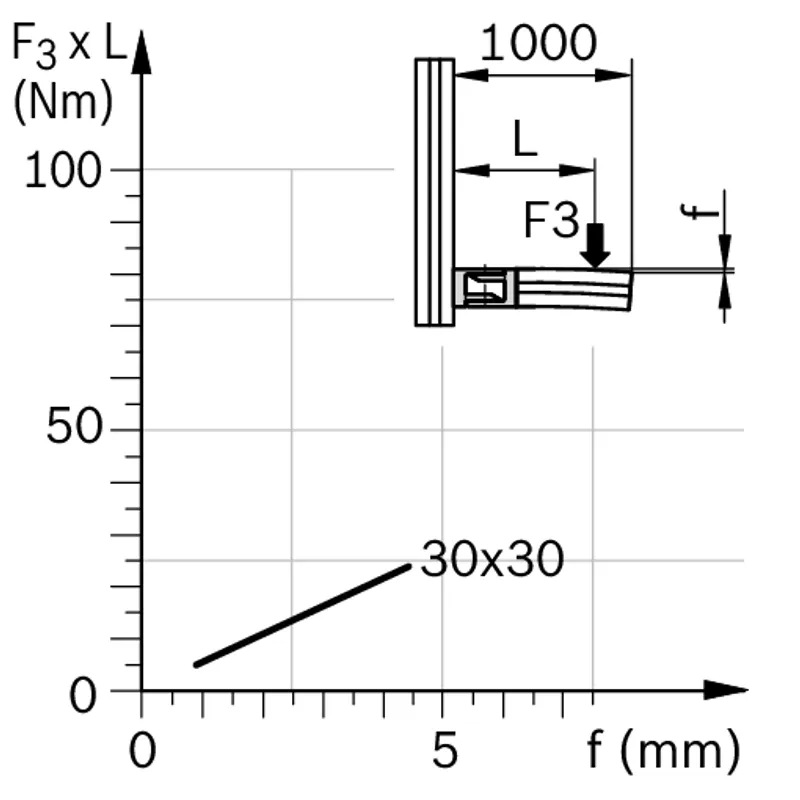

| Force F1 [N] | 10000 |
| Force F2 [N] | 600 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Joint: Diecast zinc |
| Material | Diecast zinc |
| Fastening material | 2x T-nut M6x12; 2x cylinder head screw DIN7984-M6x12; 4x hexagon nut DIN934-M5 |

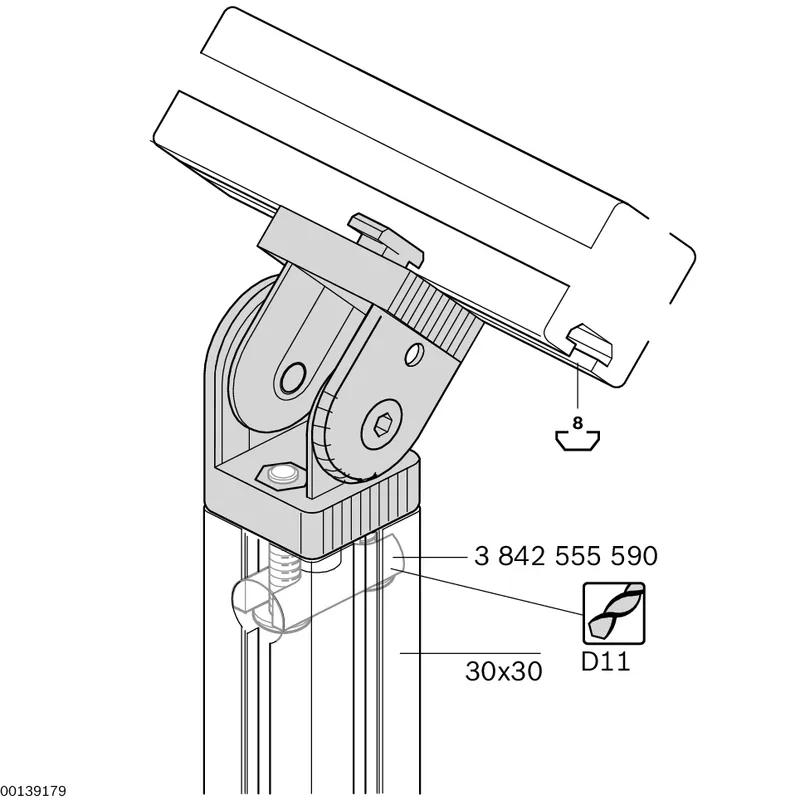

| Required accessories | Bolt connector D11 for end face connections: 3852555590 |
| Weight [kg] | 0.2 |
