Bosch Rexroth 3842538687

JOINT 45X45 SUPPORT SILVER

MPN
3842538687
Category
Joint
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842538687?

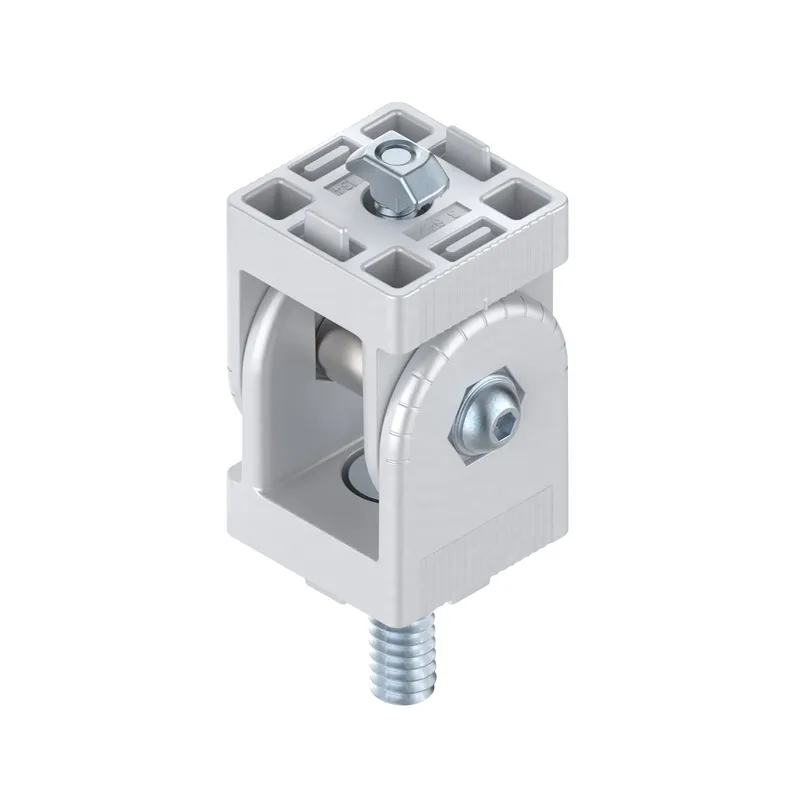

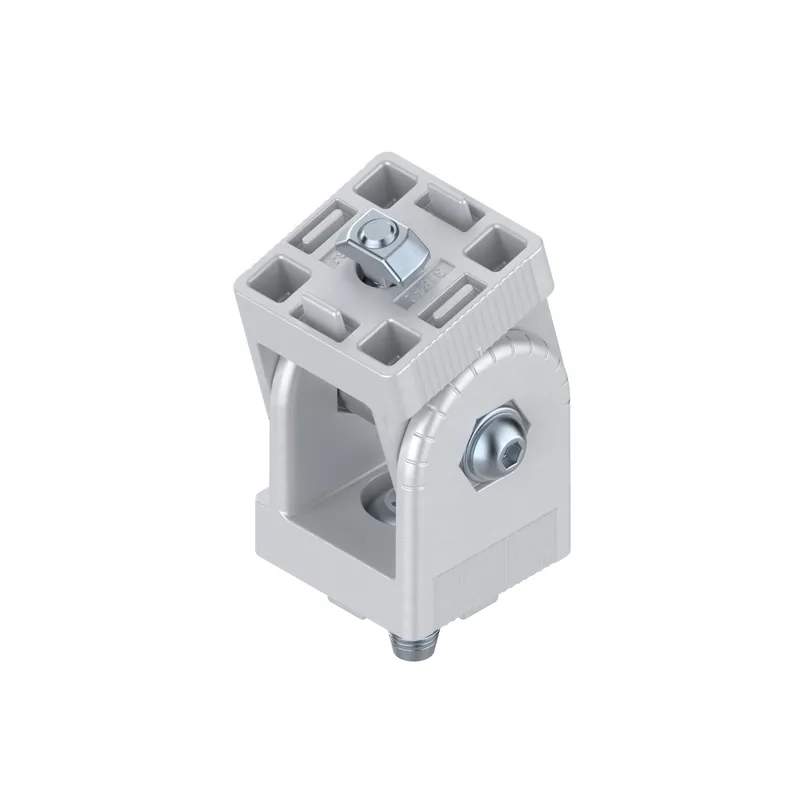

Joint 45x45 support designLINE

For movable or rigid profile connections at any angle

Swivel range 180°

With marking in 15° increments

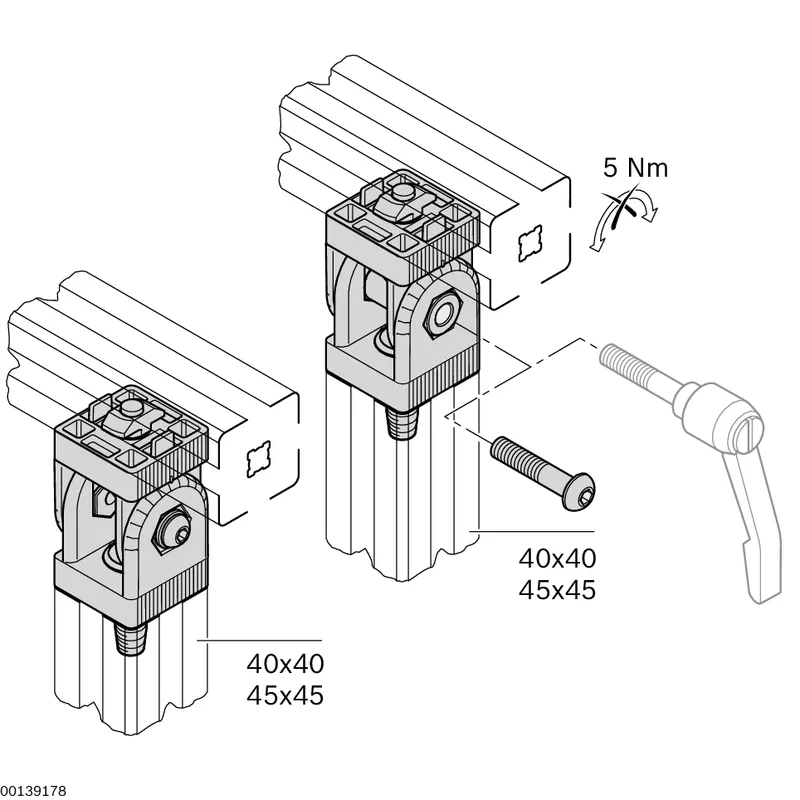

Clamping and convenient adjustment of “support” joint using a clamping lever (5 Nm)

Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

Specifications

Specifications

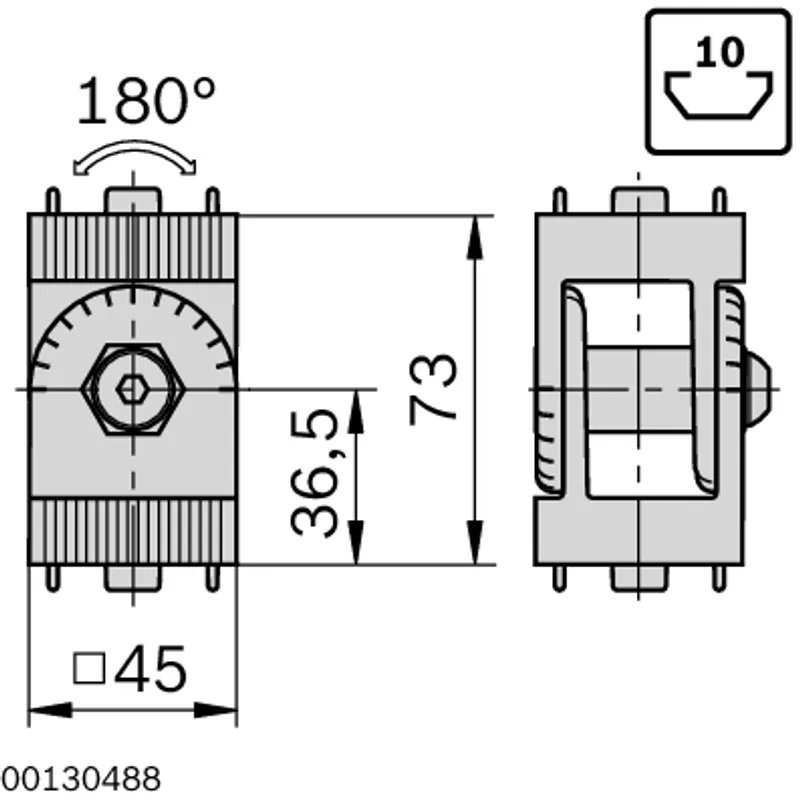

Modular dimension [mm]45
Profile slot10
ESDYes
Dimensions45x45
ColorWhite aluminum (RAL 9006)
designLINEYes
Swivel range [°]180
Packaging unit1

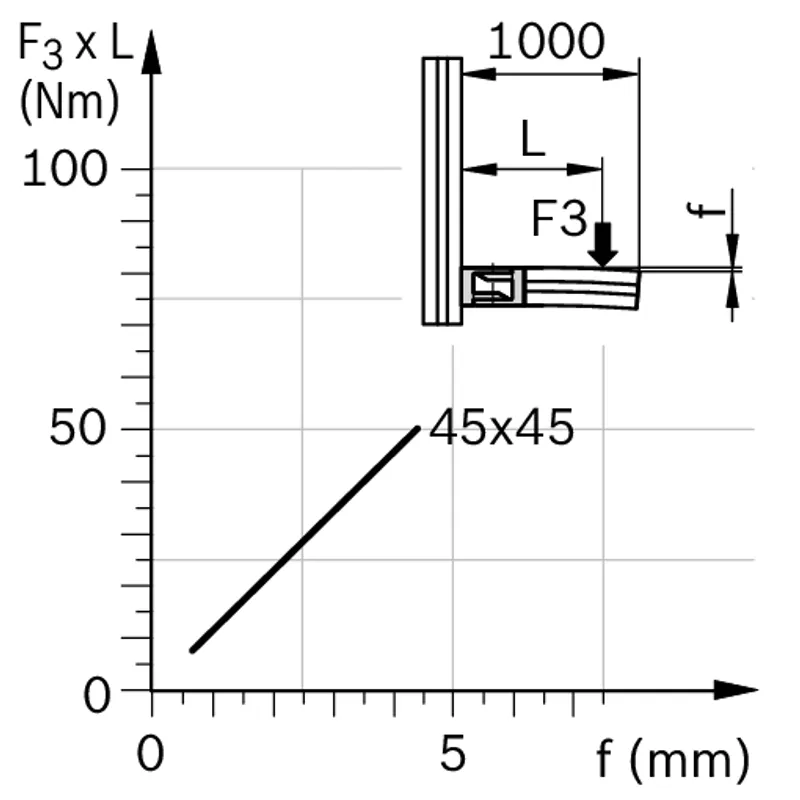

Force F1 [N]15000
Force F2 [N]1000
Scope of deliveryIncl. fastening material
Material informationdesignLINE joint: Diecast aluminum, painted, RAL 9006, fastening material: Steel, galvanized
MaterialDiecast aluminum, painted
Fastening material2x T-nut groove 10 M8; 2x flange head screw M8x16; 2x screw S12x30
Recommended accessoriesClamping lever: 3842538608
Weight [kg]0.33
