Bosch Rexroth 3842546564

JOINT 45X45 LOCKABLE

MPN: 3842546564
Category: Joint

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842546564?

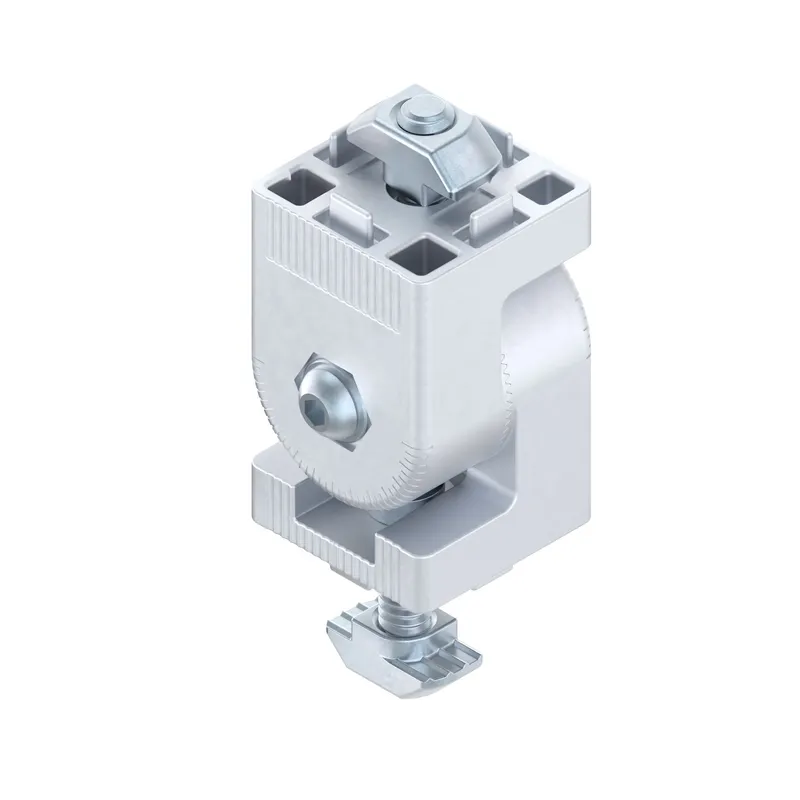

Joint 45x45 lockable

For adjustable or rigid profile connections

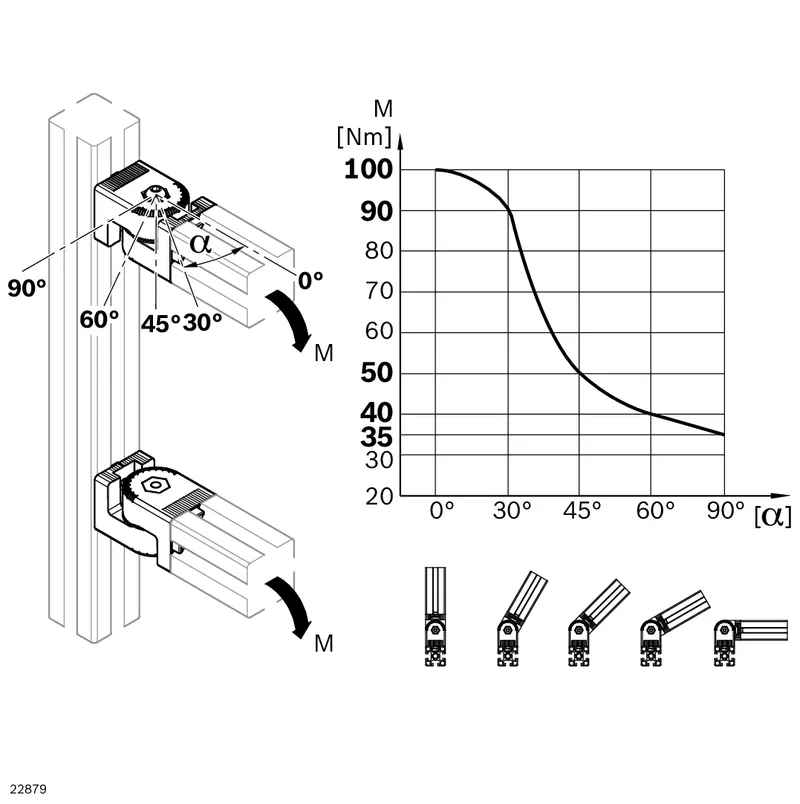

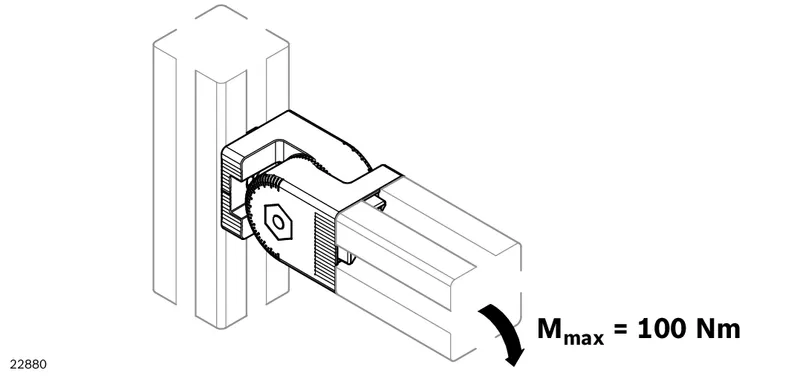

For high loads up to 100 Nm in the swivel direction

Positive interlocking thanks to Hirth toothed coupling

Swivel range 180°

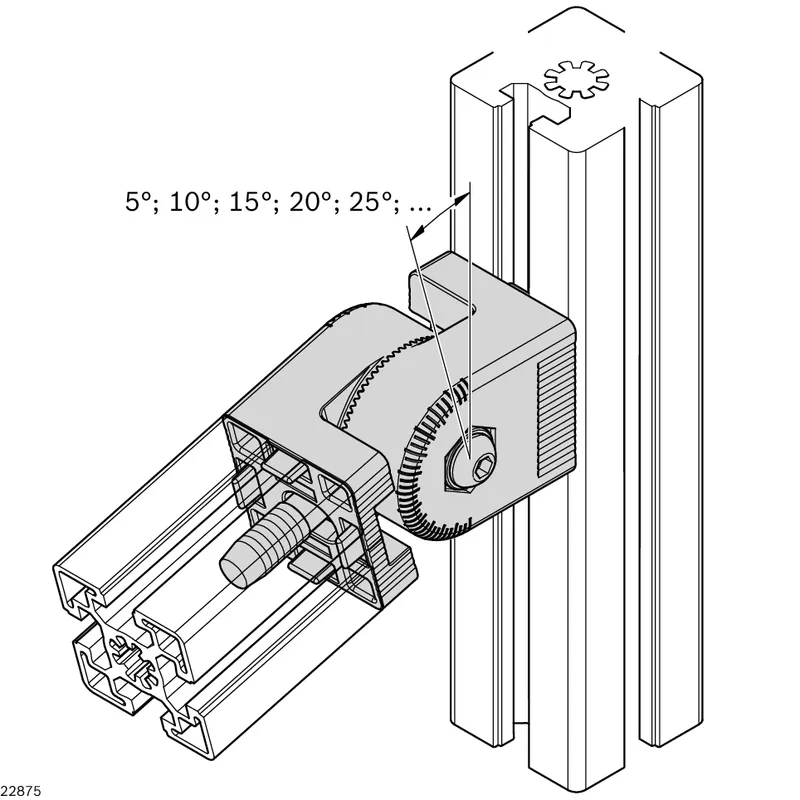

Easy adjustment in the 5° modular dimensions

Marking with a 5° graduation for easy detection of the adjustment angle

Clamping and convenient adjustment of joint using a clamping lever or screw

Profile finishing: Not required (self-cutting screw for end face to end face connection)

Compatible with joint 45x45 and joint 45x45 support

Specifications

Modular dimension [mm]	45
Profile slot	10
ESD	Yes

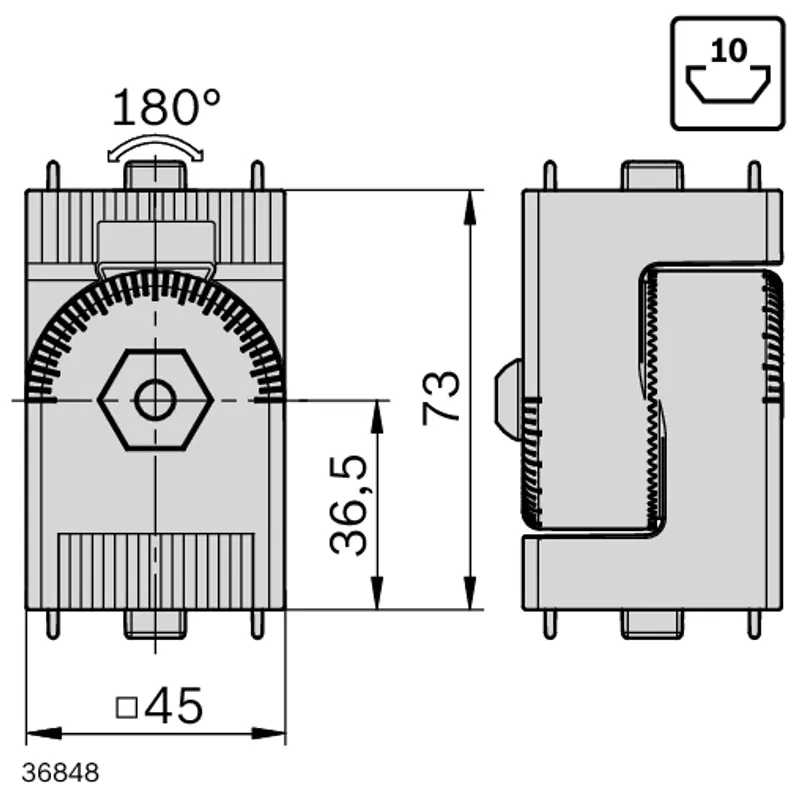

Dimensions	45x45
Swivel range [°]	180
Packaging unit	1
Bending moment 1 [Nm]	100.0
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized; Joint: Diecast zinc
Material	Diecast zinc
Fastening material	2x T-nut groove 10 M8; 2x flange head screw M8x16; 2x screw S12x30
Recommended accessories	Clamping lever: 3842538607
Weight [kg]	0.59
