Bosch Rexroth 3842502687

JOINT 60X60

MPN: 3842502687
Category: Joint

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842502687?

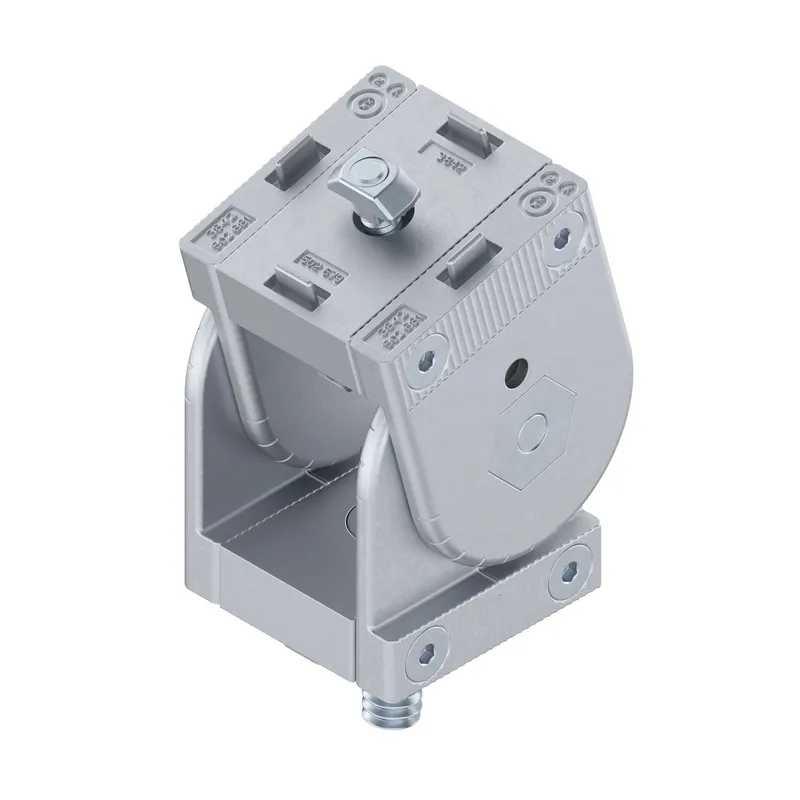

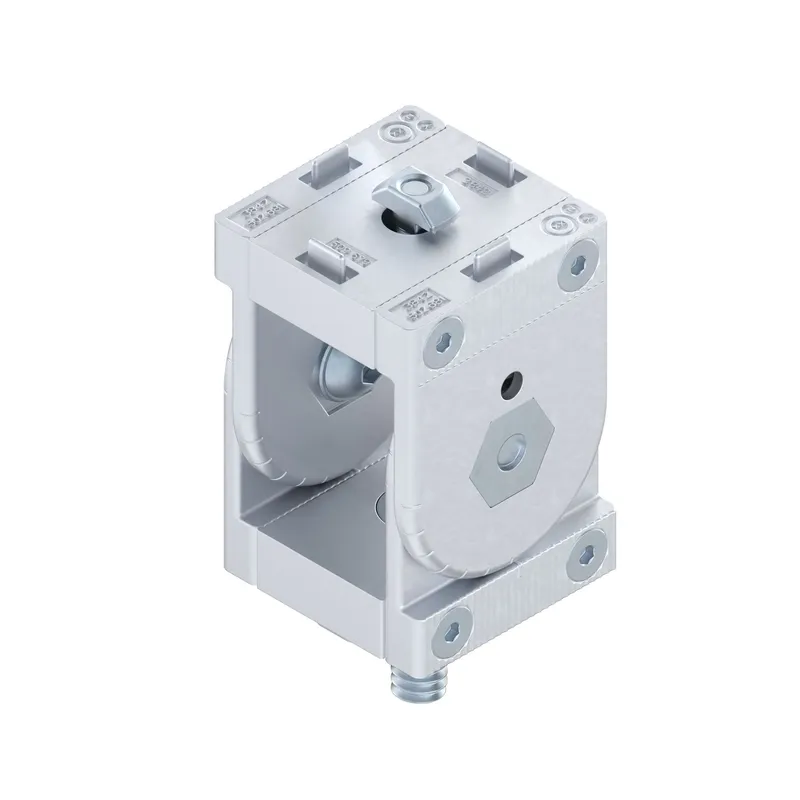

Joint 60x60 standard

For movable or rigid profile connections at any angle

Swivel range 182°

With marking in 15° increments

Locking by clamping (5 Nm) or fixing with pins (15 Nm)

The joint can be adjusted using a clamping lever.

designLINE version with special silver paint (RAL 9006)

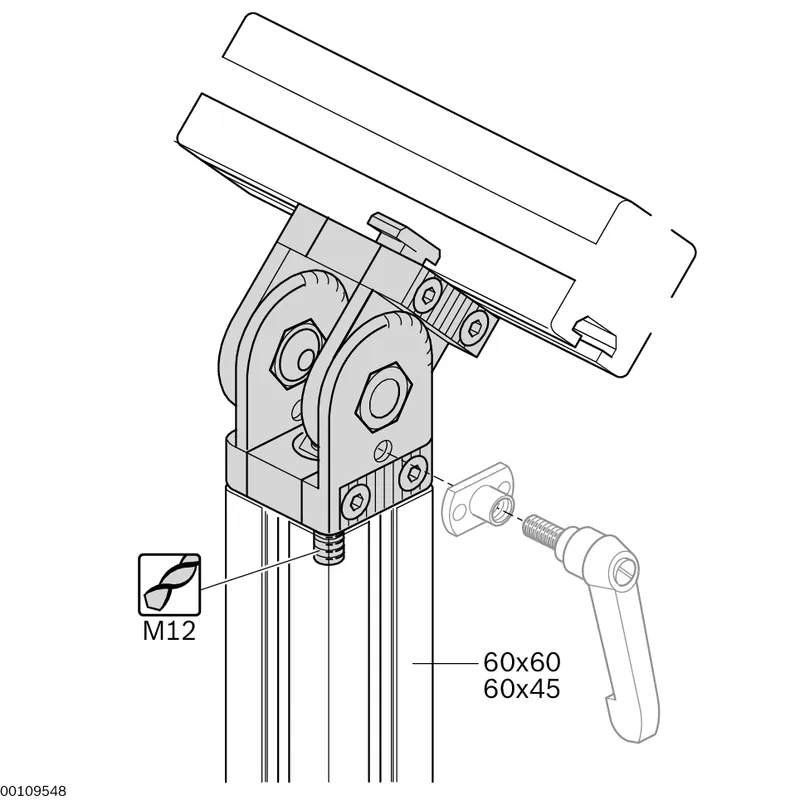

Profile finishing: Thread (M12) in central hole for end-face connection

Specifications

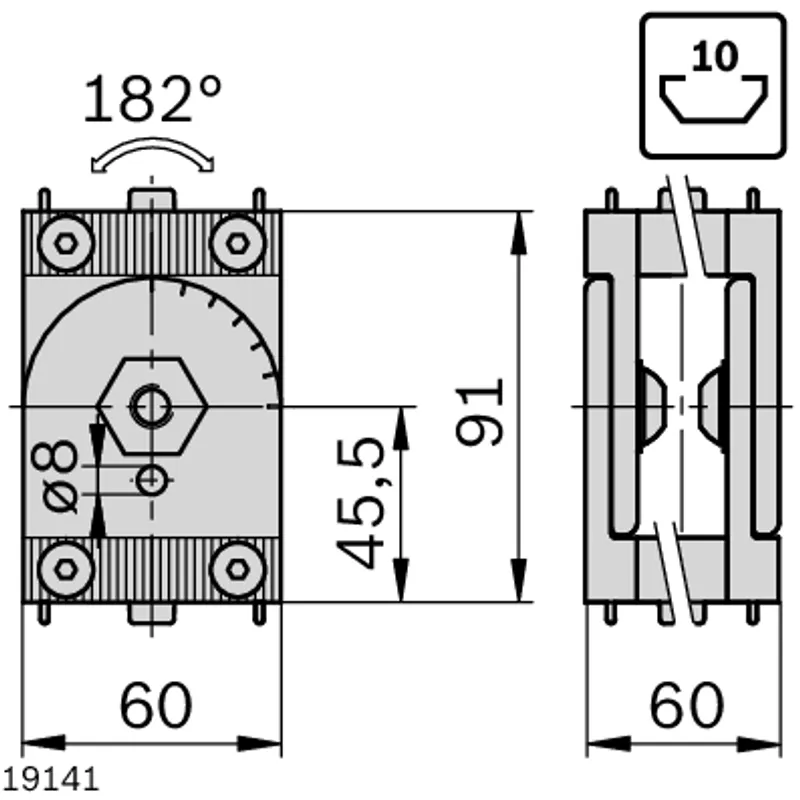

Modular dimension [mm]	60
Profile slot	10
ESD	Yes
Dimensions	60x60
Swivel range [°]	182
Packaging unit	1

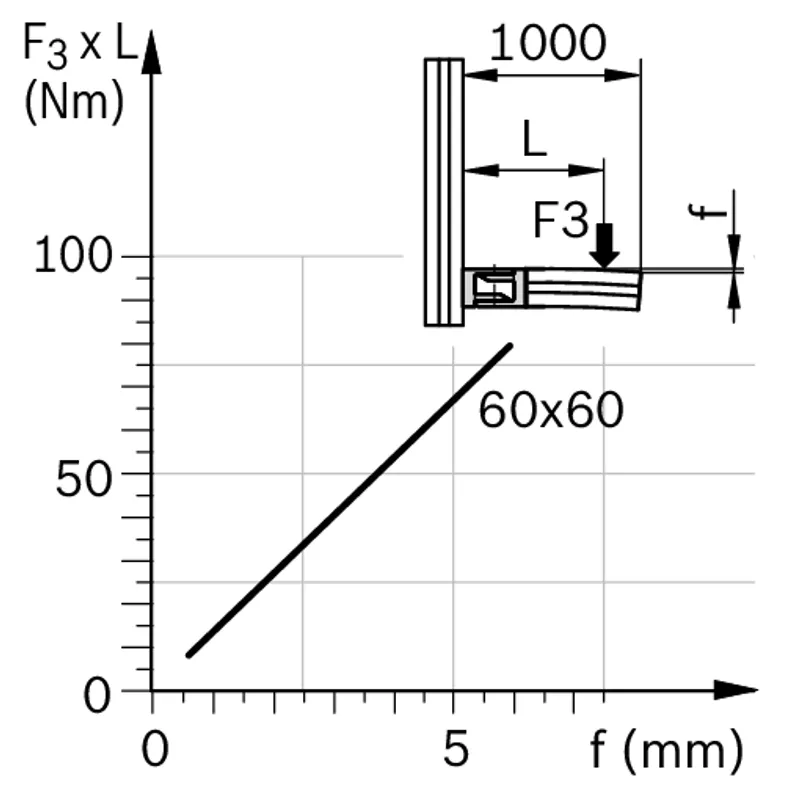

Force F1 [N]	20000
Force F2 [N]	1100
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized; Joint: Diecast zinc
Material	Diecast zinc
Fastening material	2x T-nut groove 10 M8; 2x cylinder head screw DIN7984-M8x20; 2x washer DIN125-8.4
Recommended accessories	Clamping lever: 3842505144
Weight [kg]	1.26
