Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Area moment of inertia in x-direction [lx] [cm⁴] | Moment of resistance in the x-direction [Wx] [cm³] | Moment of resistance in the y-direction [Wy] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

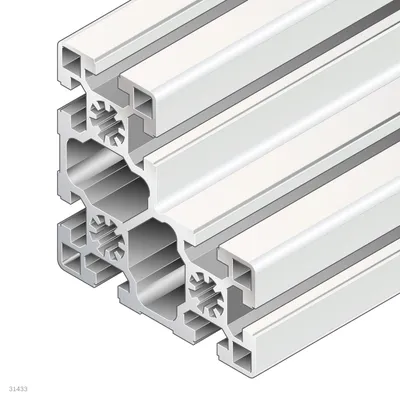

| 3842992387 | 45x90x90L | 152.1 | 19.1 | 32.6 | 0 |
| 3842537102 | 45x90SL | 73.4 | 16.3 | 8 | 230 |
| 3842992433 | 45x90L | 82 | 18.2 | 10.5 | 0 |
| 3842992453 | 45x90L | 82 | 18.2 | 10.5 | 0 |
| 3842553619 | 45x90L | 82 | 18.2 | 10 | 18.5 |
| 3842992435 | 45x90L | 82 | 18.2 | 10.5 | 0 |
| 3842992452 | 45x90L | 82 | 18.2 | 10.5 | 0 |
| 3842992436 | 45x90L | 82 | 18.2 | 10.5 | 0 |
| 3842992437 | 45x90L | 82 | 18.2 | 10.5 | 0 |

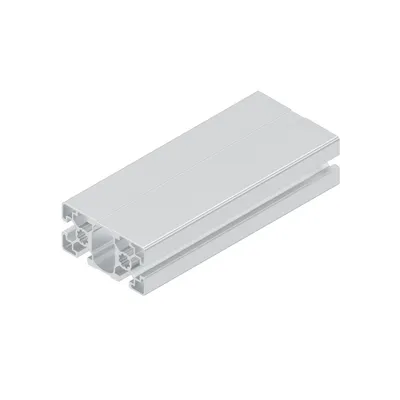

| 3842567974 | 45x90L 4N | 83.6 | 18.6 | 10.9 | 252.26 |
| 3842993777 | 45x90L 4N | 83.6 | 18.6 | 10.9 | 0 |
| 3842994180 | 45x90L 4N | 83.6 | 18.6 | 10.9 | 0 |

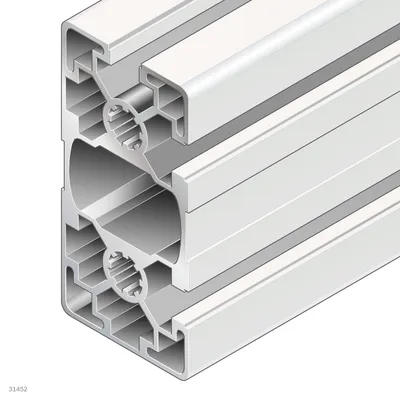

| 3842538302 | 45x90L 3NVS | 87.2 | 38.8 | 5.6 | 19.69 |
| 3842538298 | 45x90L 3NVS | 87.2 | 38.8 | 5.6 | 237 |
| 3842993752 | 45x90L 3NVS | 87.2 | 38.8 | 5.6 | 0 |
| 3842993635 | 45x90L 3NVS | 87.2 | 38.8 | 5.6 | 0 |
| 3842993084 | 45x90L | 82 | 18.2 | 10.5 | 0 |

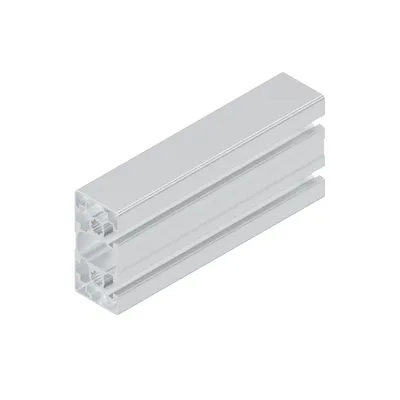

| 3842555652 | 45x90L 2NVS | 25.9 | 5.7 | 40.3 | 255 |
| 3842993770 | 45x90L 2NVS | 25.9 | 5.7 | 40.3 | 0 |

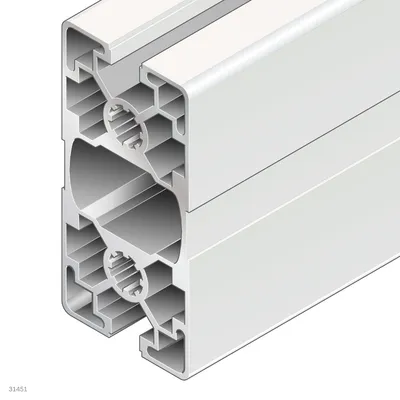

| 3842538303 | 45x90L 2N | 26.9 | 6 | 38.1 | 19.99 |
| 3842538299 | 45x90L 2N | 85.6 | 38.1 | 6 | 240 |
| 3842993751 | 45x90L 2N | 85.6 | 38.1 | 6 | 0 |
| 3842993644 | 45x90L 2N | 85.6 | 38.1 | 6 | 0 |
| 3842553612 | 45x90L | 82 | 18.2 | 10.5 | 211.14 |
Common to all listed parts
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Color | Natural |
| Material | Aluminum, anodized |
