Bosch Rexroth 3842993084

STRUT PROFILE 45X90L 2XD17LF

MPN: 3842993084
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993084?

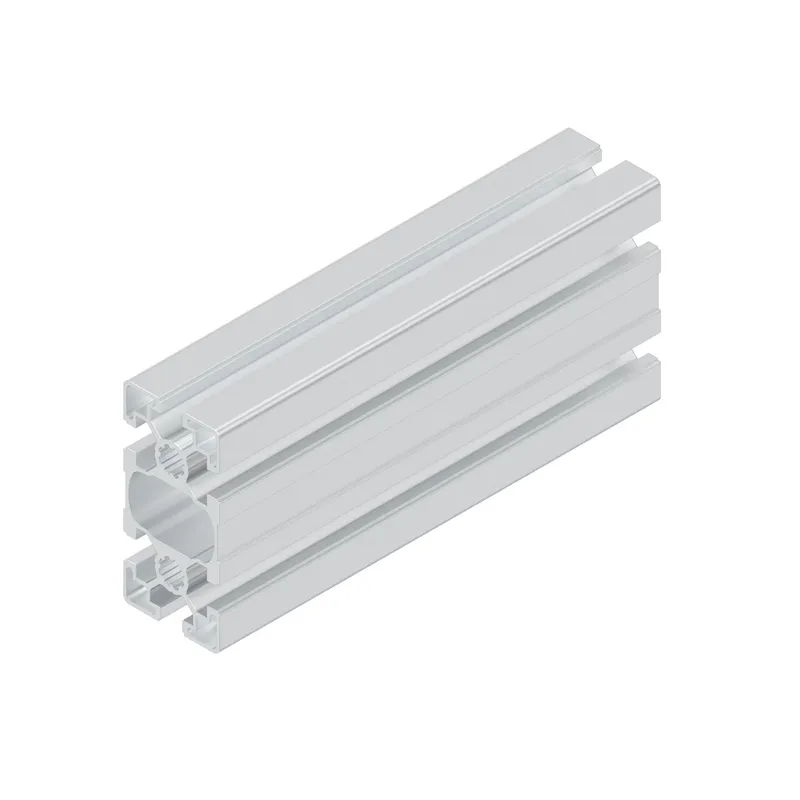

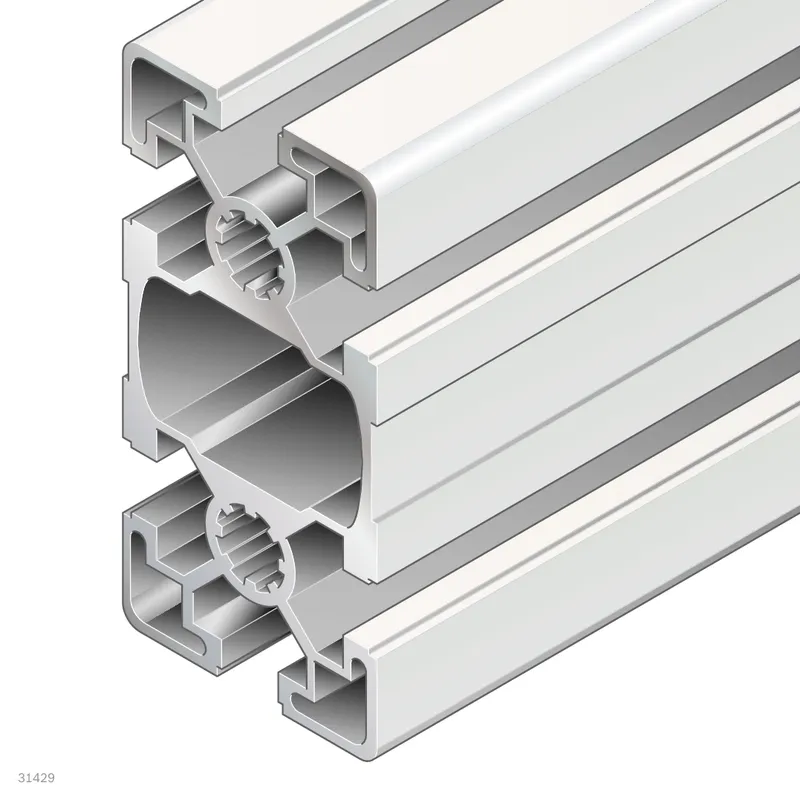

Strut profile 45x90L LF/LF

Specifications

Condition on delivery	Profile finishing

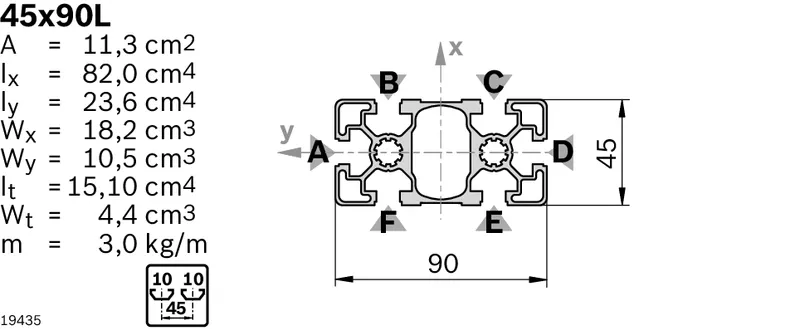

Cross-section	45x90L
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x90
Open slots	6.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	3
Area moment of inertia in x-direction [lx] [cm⁴]	82
Area moment of inertia in y-direction [ly] [cm⁴]	23.6
Profile surface [A] [cm²]	11.3
Moment of resistance in the x-direction [Wx] [cm³]	18.2
Moment of resistance in the y-direction [Wy] [cm³]	10.5
Torsional moment of inertia [It] [cm⁴]	15.1
Moment of torsion resistance [Wt] [cm³]	4.4
Profile adaption	D17: in slots B/F, C/E; D17V: in slots A/D; LF: in slots A/D; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90, black; Cover cap 45x90, signal gray; Cover cap with hole 45x90, black; Cover cap with hole 45x90, signal gray
Weight [kg]	0
