Bosch Rexroth 3842993635

STRUT PROFILE 45X90L 3NVS

MPN: 3842993635
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993635?

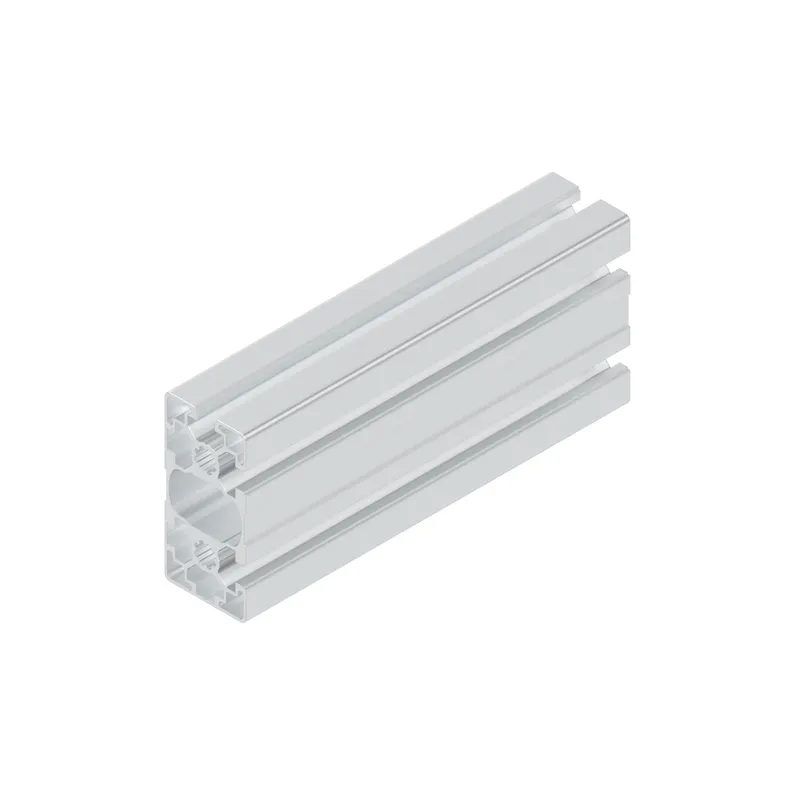

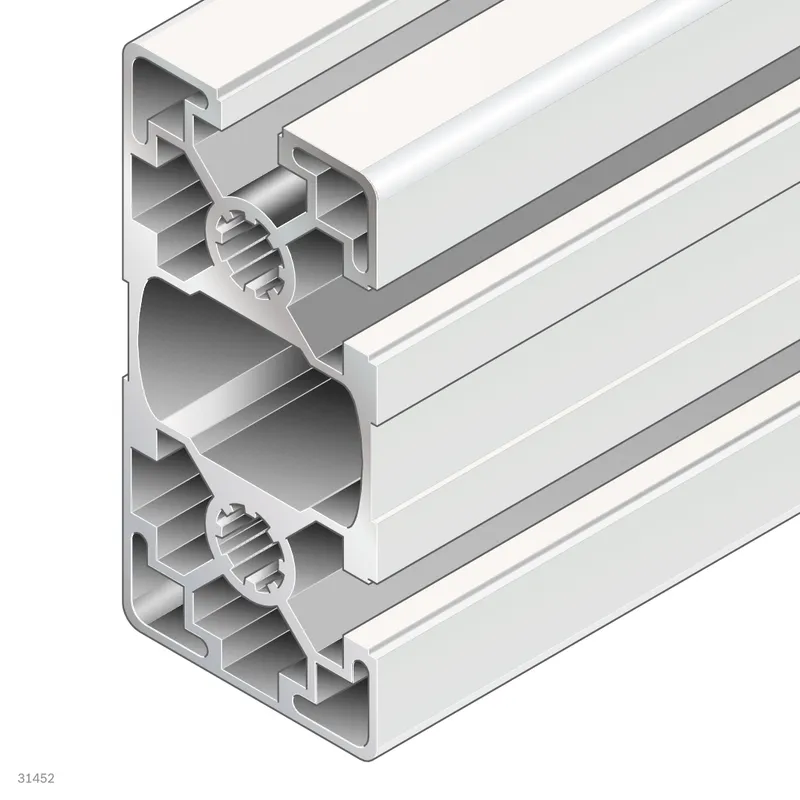

Strut profile 45x90L 3NVS

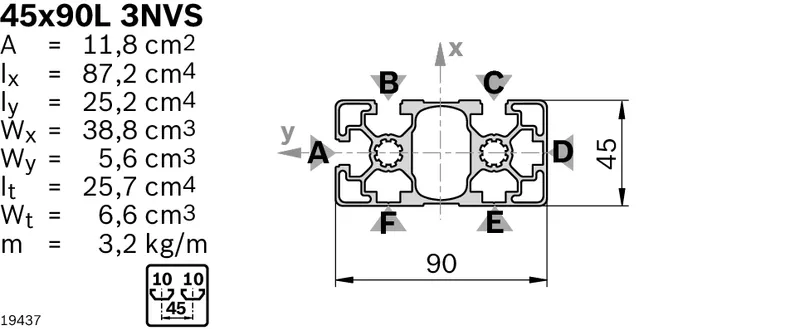

Specifications

Condition on delivery	Variable length
Cross-section	45x90L 3NVS
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x90
Open slots	6.0
Profile type	3NVS
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	3.2
Area moment of inertia in x-direction [lx] [cm⁴]	87.2
Area moment of inertia in y-direction [ly] [cm⁴]	25.2
Profile surface [A] [cm²]	11.8
Moment of resistance in the x-direction [Wx] [cm³]	38.8
Moment of resistance in the y-direction [Wy] [cm³]	5.6
Torsional moment of inertia [It] [cm⁴]	25.7
Moment of torsion resistance [Wt] [cm³]	6.6
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90, black; Cover cap 45x90, signal gray; Cover cap with hole 45x90, black; Cover cap with hole 45x90, signal gray
Weight [kg]	0
