Bosch Rexroth 3842994180

STRUT PROFILE 45X90L 4N

MPN: 3842994180
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842994180?

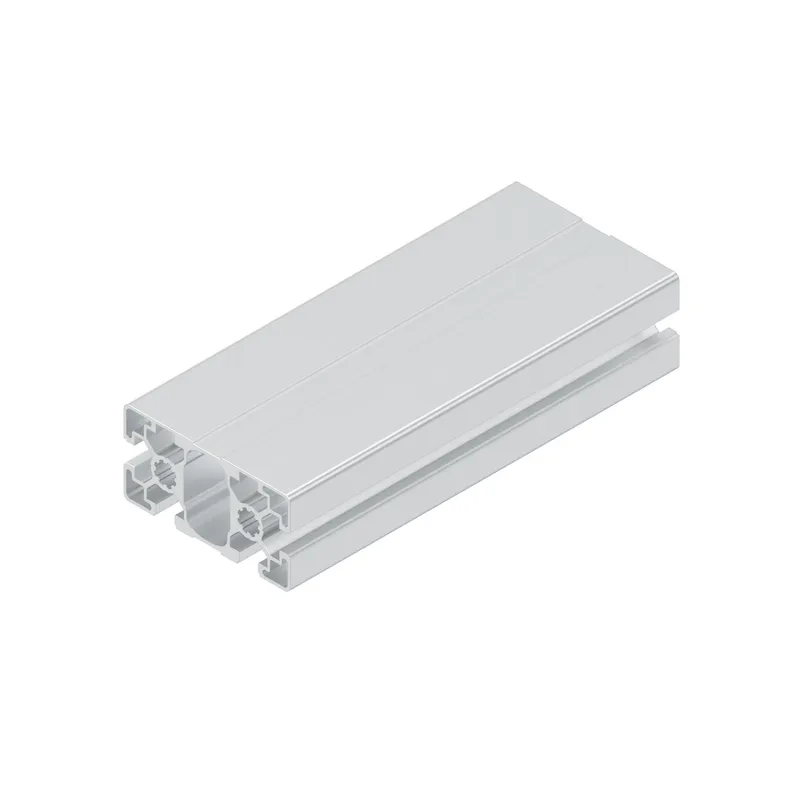

Strut profile 45x90L 4N

Specifications

Condition on delivery	Variable length

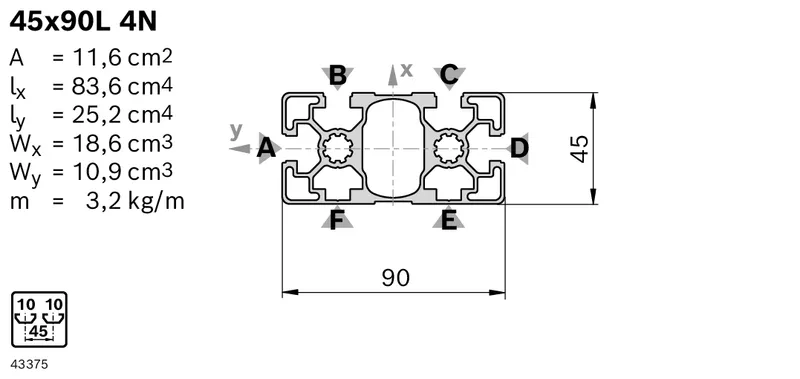

Cross-section	45x90L 4N
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x90
Open slots	4.0
Profile type	4N
Color	Natural
Delivery unit	1
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Length-related mass [m'] [kg/m]	3.2
Area moment of inertia in x-direction [lx] [cm⁴]	83.6
Area moment of inertia in y-direction [ly] [cm⁴]	25.2
Profile surface [A] [cm²]	11.6
Moment of resistance in the x-direction [Wx] [cm³]	18.6
Moment of resistance in the y-direction [Wy] [cm³]	10.9
Torsional moment of inertia [It] [cm⁴]	23.6
Moment of torsion resistance [Wt] [cm³]	5.7
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90; black; Cover cap 45x90; signal gray; Cover cap with hole 45x90, black; Cover cap with hole 45x90, signal gray
Weight [kg]	0
