Bosch Rexroth 3842538298
STRUT PROFILE 45X90L 3NVS 12X6070MM
- MPN
- 3842538298
- Category
- Strut profile
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 3842538298?

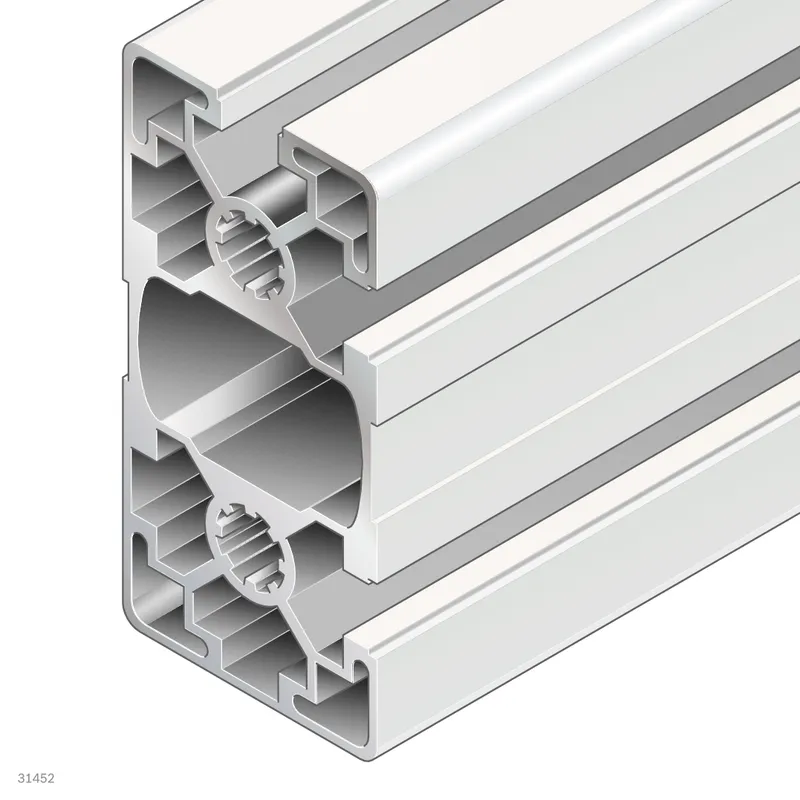

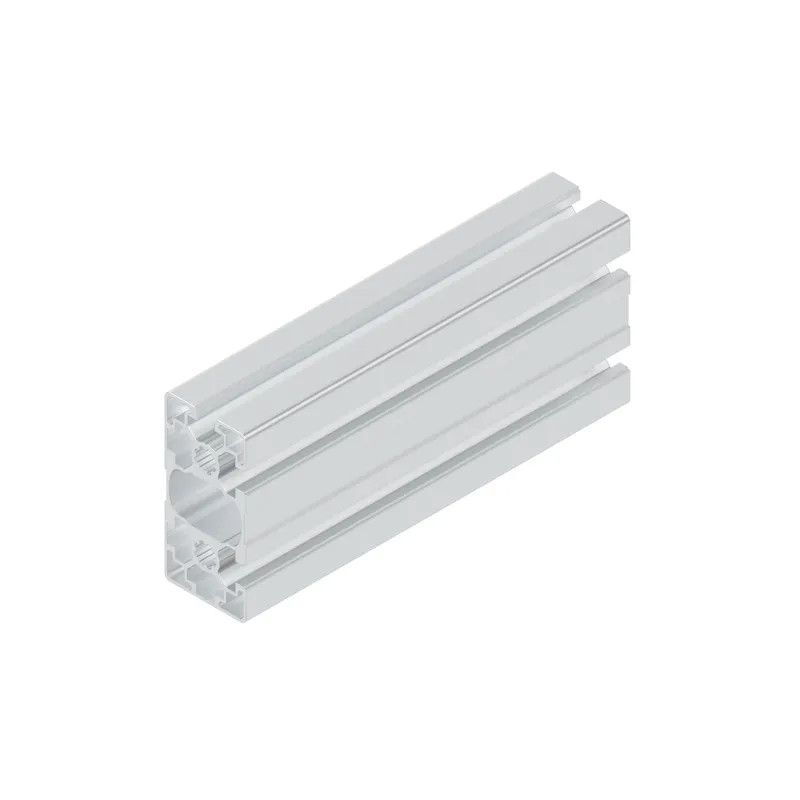

Strut profile 45x90L 3NVS, 12xL=6070mm

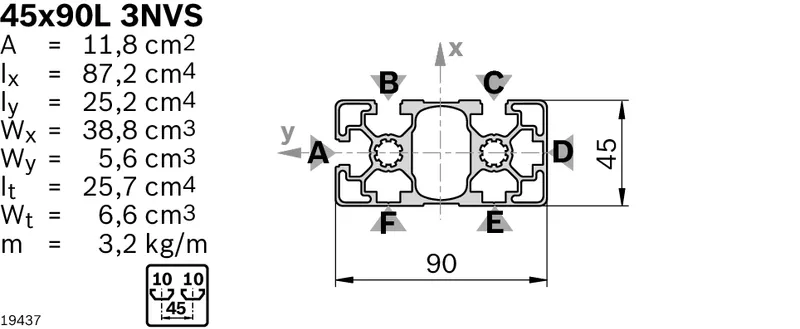

Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Cross-section | 45x90L 3NVS |
| Open slots | 6.0 |
| Profile type | 3NVS |
| ESD | Yes |
| Dimensions | 45x90 |
| Color | Natural |
| Delivery unit | 12 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 25.2 |
| Profile surface [A] [cm²] | 11.8 |
| Moment of resistance in the x-direction [Wx] [cm³] | 38.8 |
| Moment of resistance in the y-direction [Wy] [cm³] | 5.6 |
| Torsional moment of inertia [It] [cm⁴] | 25.7 |
| Moment of torsion resistance [Wt] [cm³] | 6.6 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Mass [m] [kg] | 3.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 87.2 |
| Recommended accessories | Cover cap 45x90, black; Cover cap 45x90, signal gray; Cover cap with hole 45x90, black; Cover cap with hole 45x90, signal gray |
| Weight [kg] | 237 |
