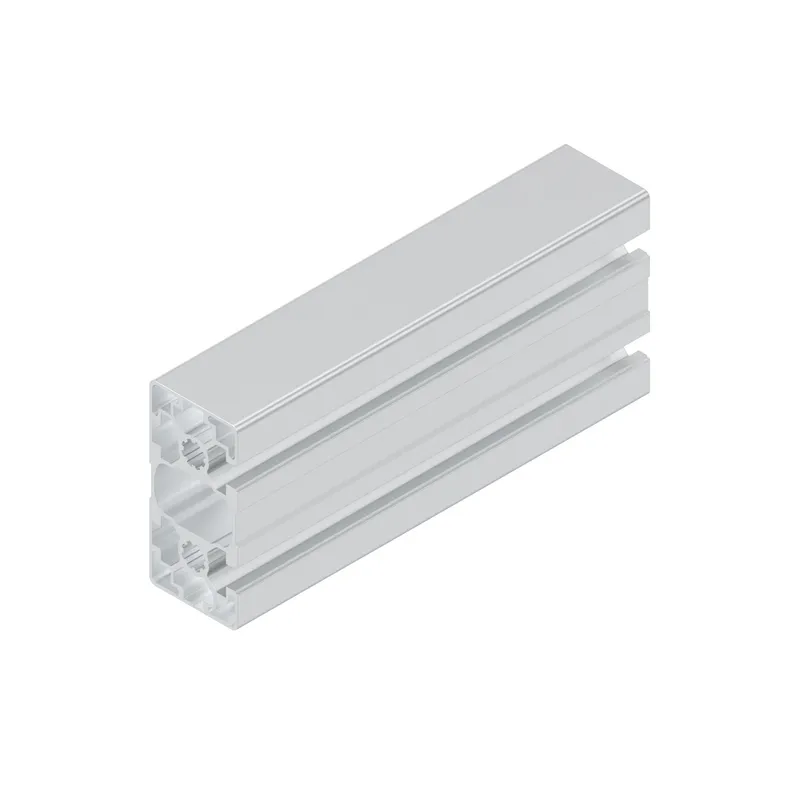

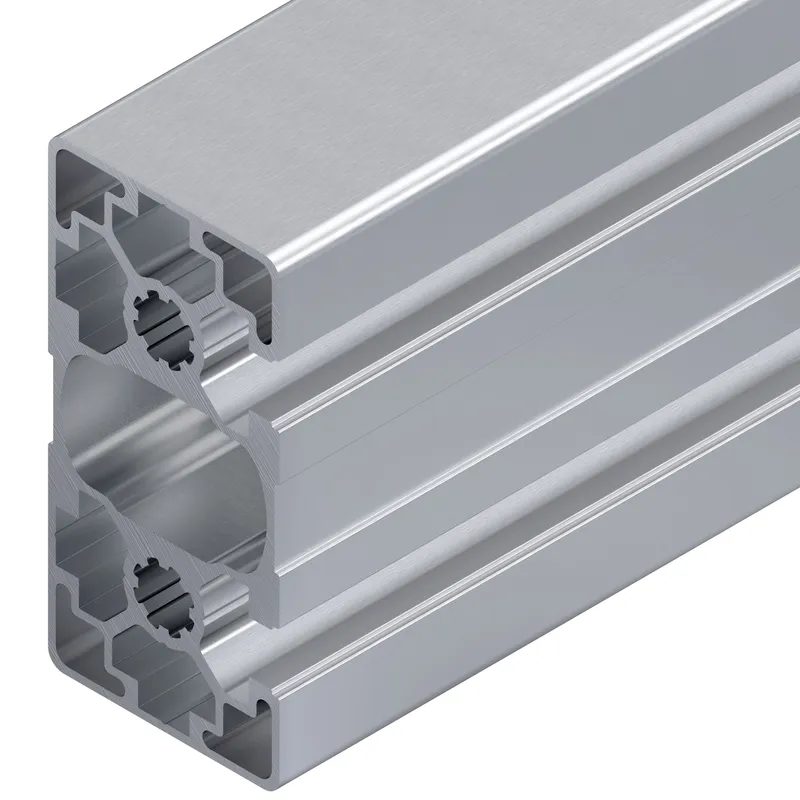

Bosch Rexroth 3842555652

STRUT PROFILE 45X90L 2NVS 12X6070MM

MPN: 3842555652
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842555652?

Strut profile 45x90L 2NVS, 12xL=6070 mm

Specifications

Condition on delivery	Packaging unit in standard length

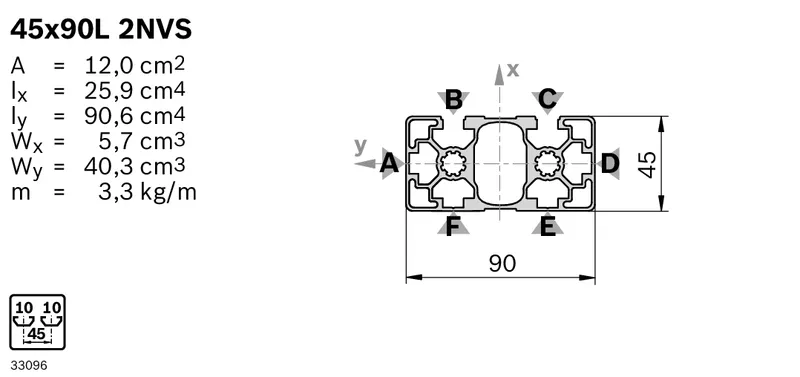

Cross-section	45x90L 2NVS
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x90
Open slots	6.0
Profile type	2NVS
Color	Natural
Delivery unit	12
Length [L]	6070.0
Material	Aluminum, anodized
Mass [m] [kg]	3.3
Area moment of inertia in x-direction [lx] [cm⁴]	25.9
Area moment of inertia in y-direction [ly] [cm⁴]	90.6
Profile surface [A] [cm²]	12.1
Moment of resistance in the x-direction [Wx] [cm³]	5.7
Moment of resistance in the y-direction [Wy] [cm³]	40.3
Torsional moment of inertia [It] [cm⁴]	31.7
Moment of torsion resistance [Wt] [cm³]	7.7
Recommended accessories	Cover cap with hole 45x90, signal gray; Cover cap 45x90, black; Cover cap 45x90, signal gray; Cover cap with hole 45x90, black
Weight [kg]	255
