Bosch Rexroth 3842993257

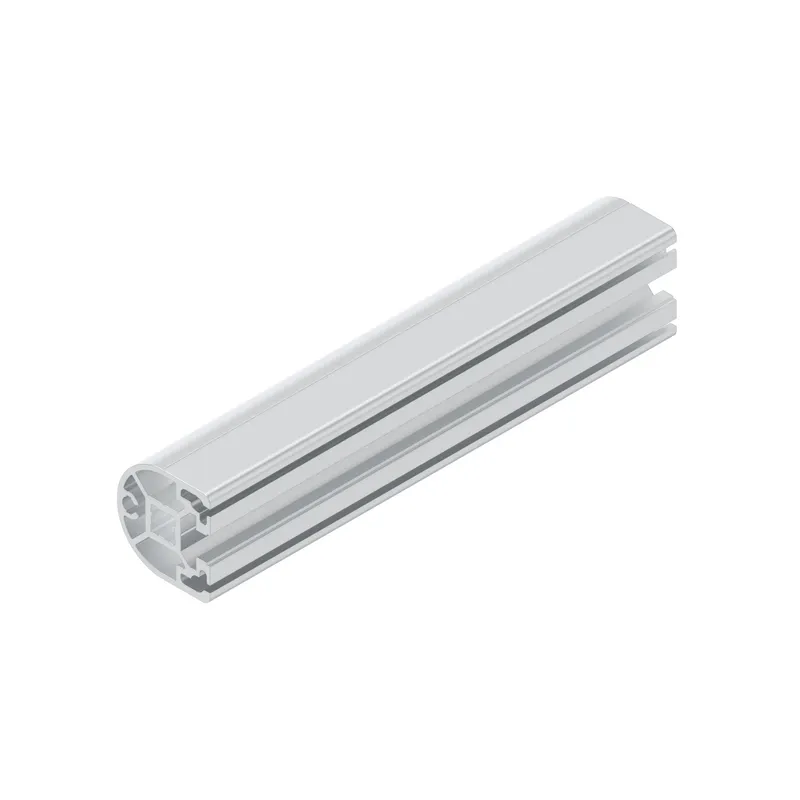

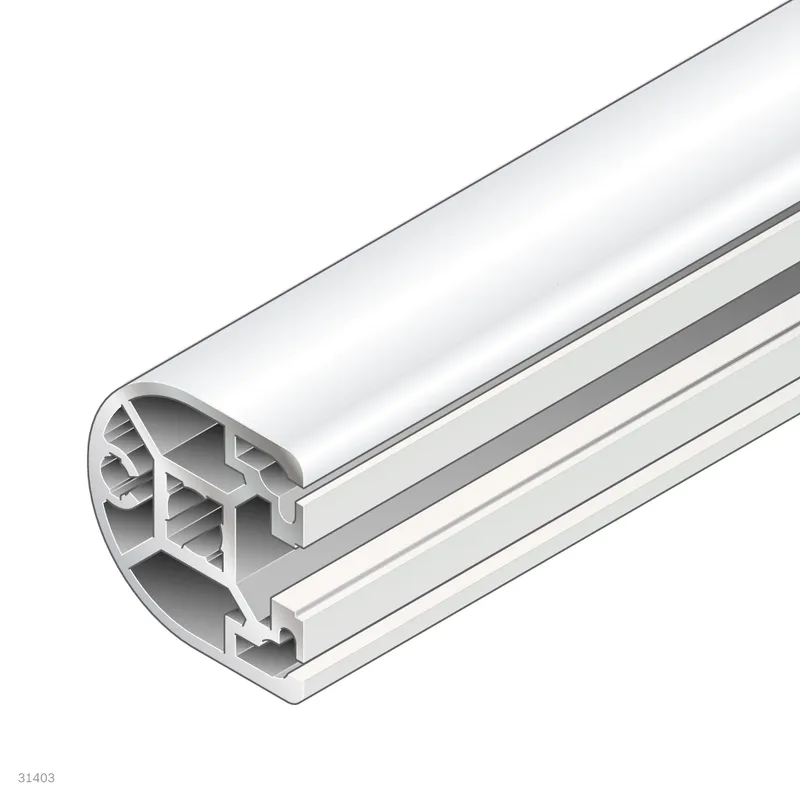

STRUT PROFILE 40X40HR M12/M12

MPN: 3842993257
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993257?

Strut profile 40x40 HR M12/M12

Specifications

Condition on delivery	Profile finishing
Cross-section	40x40 HR
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x40
Open slots	1.0
Profile type	semicircular
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	110
Packaging unit	1
Mass [m] [kg]	1.5

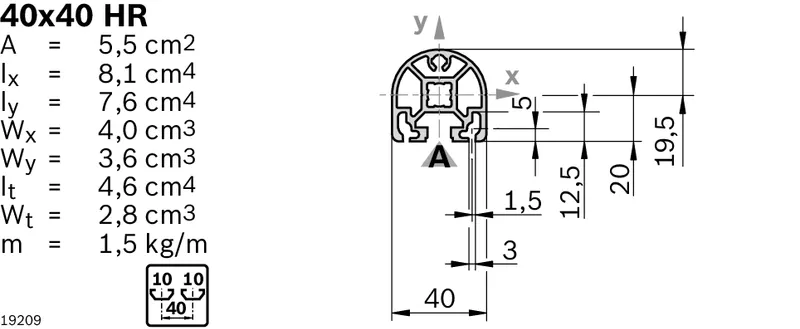

Area moment of inertia in x-direction [lx] [cm⁴]	8.1
Area moment of inertia in y-direction [ly] [cm⁴]	7.6
Profile surface [A] [cm²]	5.5
Moment of resistance in the x-direction [Wx] [cm³]	4
Moment of resistance in the y-direction [Wy] [cm³]	3.6
Torsional moment of inertia [It] [cm⁴]	4.6
Moment of torsion resistance [Wt] [cm³]	2.8
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x40 HR, black; Cover cap 40x40 HR, signal gray; Cover cap with hole 40x40 HR, black; Cover cap with hole 40x40 HR, signal gray
Weight [kg]	0
