Bosch Rexroth 3842529381

STRUT PROFILE 40X40HR 20X6070MM

MPN: 3842529381
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842529381?

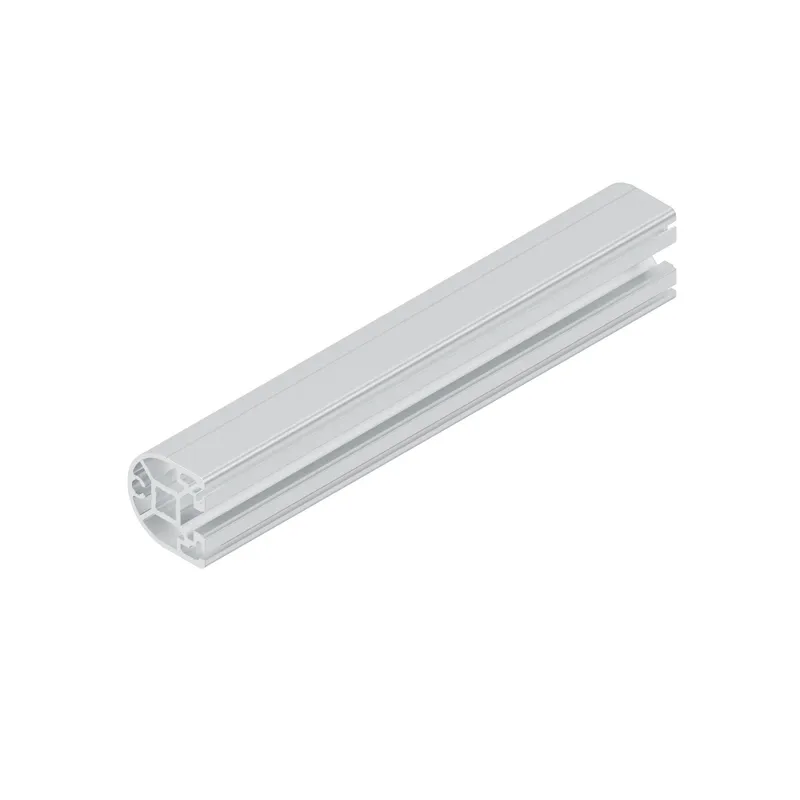

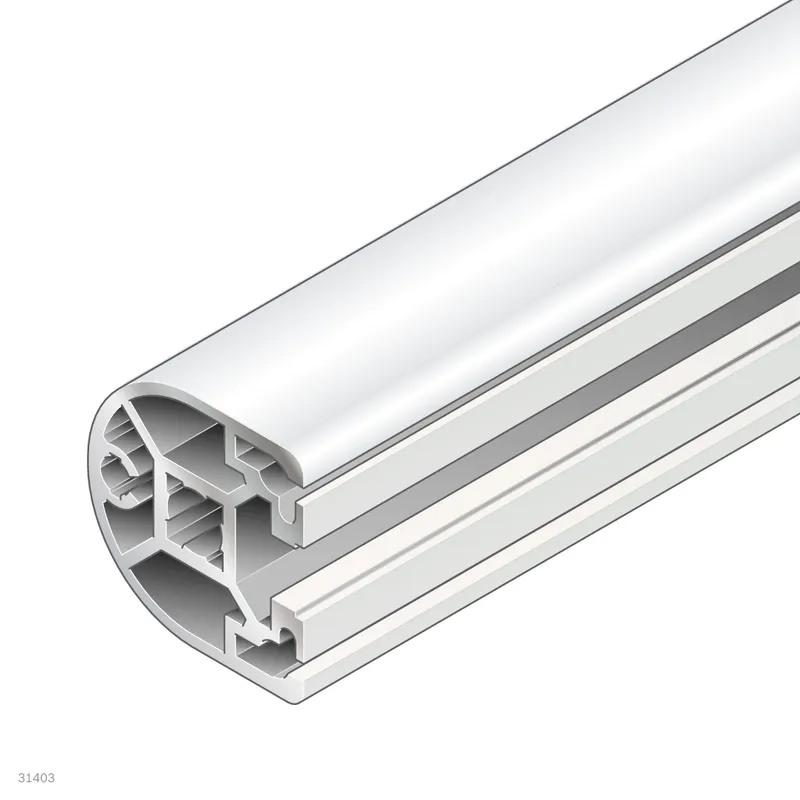

Strut profile 40x40 HR, 20xL=6070mm

Specifications

Condition on delivery	Packaging unit in standard length

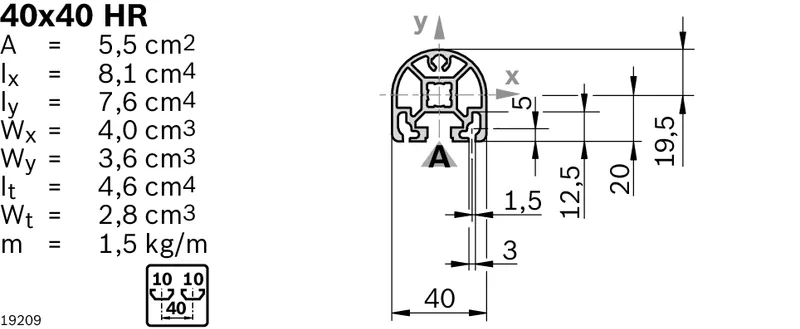

Cross-section	40x40 HR
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x40
Open slots	1.0
Profile type	semicircular
Color	Natural
Delivery unit	20
Mass [m] [kg]	1.5
Area moment of inertia in x-direction [lx] [cm⁴]	8.1
Area moment of inertia in y-direction [ly] [cm⁴]	7.6
Profile surface [A] [cm²]	5.5
Moment of resistance in the x-direction [Wx] [cm³]	4
Moment of resistance in the y-direction [Wy] [cm³]	3.6
Torsional moment of inertia [It] [cm⁴]	4.6
Moment of torsion resistance [Wt] [cm³]	2.8
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x40 HR, black; Cover cap 40x40 HR, signal gray; Cover cap with hole 40x40 HR, black; Cover cap with hole 40x40 HR, signal gray
Weight [kg]	182

3842529381: frequently asked questions

When can 3842529381 be shipped?

3842529381 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842529381 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842529381 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842529381, subject to availability and destination.
