Ball screw assembly nuts Parts

Bosch Rexroth

R151221013

BALL NUT FEM-E-S 25X5RX3-4

Bosch Rexroth

R155221013

BALL NUT FEM-E-S 25X5LX3-4

Bosch Rexroth

R151228013

BALL NUT FEM-E-S 25X25RX3,5-2

Bosch Rexroth

R151224013

BALL NUT FEM-E-S 25X10RX3-4

Bosch Rexroth

R151211013

BALL NUT FEM-E-S 20X5RX3-4

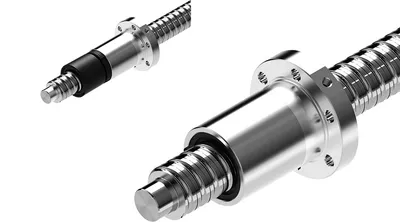

Bosch Rexroth

R155211013

BALL NUT FEM-E-S 20X5LX3-4

Bosch Rexroth

R151217013

BALL NUT FEM-E-S 20X20RX3,5-2

Bosch Rexroth

R151214013

BALL NUT FEM-E-S 20X10RX3-4

Bosch Rexroth

R151201023

BALL NUT FEM-E-S 16X5RX3-4

Bosch Rexroth

R155201003

BALL NUT FEM-E-S 16X5LX3-4

Bosch Rexroth

R151206013

BALL NUT FEM-E-S 16X16RX3-2

Bosch Rexroth

R151204013

BALL NUT FEM-E-S 16X10RX3-3

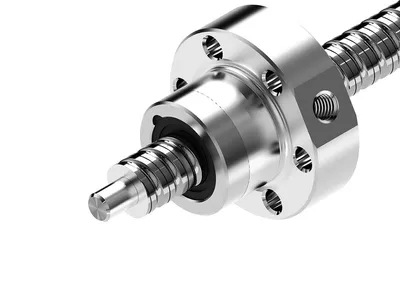

Bosch Rexroth

R153246023

BALL NUT FEM-E-S 12X5RX2-3

Bosch Rexroth

R153249013

BALL NUT FEM-E-S 12X10RX2-2

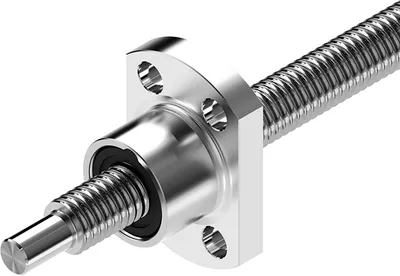

Bosch Rexroth

R153226006

BALL NUT FEM-E-B 8X5RX1,588-3

Bosch Rexroth

R153223006

BALL NUT FEM-E-B 8X2,5RX1,588-3

Bosch Rexroth

R150274084

BALL NUT FEM-E-B 80X10RX6,5-6

Bosch Rexroth

R150269063

BALL NUT FEM-E-B 63X40RX6,5-3

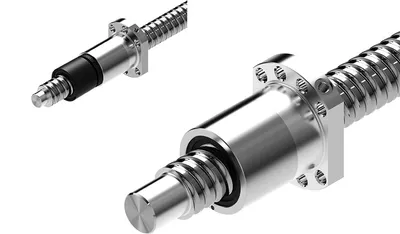

Bosch Rexroth

R150267084

BALL NUT FEM-E-B 63X20RX6,5-5

Bosch Rexroth

R150264084

BALL NUT FEM-E-B 63X10RX6-6

Bosch Rexroth

R150251084

BALL NUT FEM-E-B 50X5RX3,5-5

Bosch Rexroth

R150259063

BALL NUT FEM-E-B 50X40RX6,5-3

Bosch Rexroth

R15025A083

BALL NUT FEM-E-B 50X30RX6,5-4

Bosch Rexroth

R150258084

BALL NUT FEM-E-B 50X25RX6,5–4

Compare Ball screw assembly nuts

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal size [mm]	Dynamic load capacity C [N]	Weight [kg]	Static load capacity C0 [N]	Dimension L [mm]
R151221013	25 x 5R x 3 - 4	19100.0	0.43	27200.0	45
R155221013	25 x 5L x 3 - 4	19100.0	0.4	27200.0	45
R151228013	25 x 25R x 3,5 - 2	12100.0	1.26	15100.0	70
R151224013	25 x 10R x 3 - 4	18800.0	0.54	27000.0	64
R151211013	20 x 5R x 3 - 4	17200.0	0.37	21500.0	40
R155211013	20 x 5L x 3 - 4	17200.0	0.38	21500.0	40
R151217013	20 x 20R x 3,5 - 2	10900.0	0.71	12100.0	57
R151214013	20 x 10R x 3 - 4	16900.0	0.46	21300.0	60
R151201023	16 x 5R x 3 - 4	14800.0	0.32	16100.0	38
R155201003	16 x 5L x 3 - 4	14800.0	0.32	16100.0	38
R151206013	16 x 16R x 3 - 2	7560.0	0.49	7600.0	45
R151204013	16 x 10R x 3 - 3	11500.0	0.34	12300.0	45
R153246023	12 x 5R x 2 - 3	4560.0	0.18	5800.0	28
R153249013	12 x 10R x 2 - 2	3000.0	0.2	3600.0	33
R153226006	8 x 5R x 1,588 - 3	2500.0	0.09	2650.0	23.5
R153223006	8 x 2,5R x 1,588 - 3	2640.0	0.08	2800.0	16
R150274084	80 x 10R x 6,5 - 6	130100.0	3.4	291700.0	95
R150269063	63 x 40R x 6,5 - 3	64100.0	5.04	114100.0	149
R150267084	63 x 20R x 6,5 - 5	100700.0	4.85	190300.0	132
R150264084	63 x 10R x 6 - 6	106600.0	3.01	214300.0	90
R150251084	50 x 5R x 3,5 - 5	38400.0	1.39	81300.0	54
R150259063	50 x 40R x 6,5 - 3	55800.0	3.04	85900.0	149
R15025A083	50 x 30R x 6,5 - 4	71300.0	3.54	118800.0	151
R150258084	50 x 25R x 6,5 - 4	71800.0	2.78	149700.0	132

Common to all listed parts

Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Screw drive seal	With seal
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
