Bosch Rexroth R151217013

BALL NUT FEM-E-S 20X20RX3,5-2

MPN: R151217013
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R151217013?

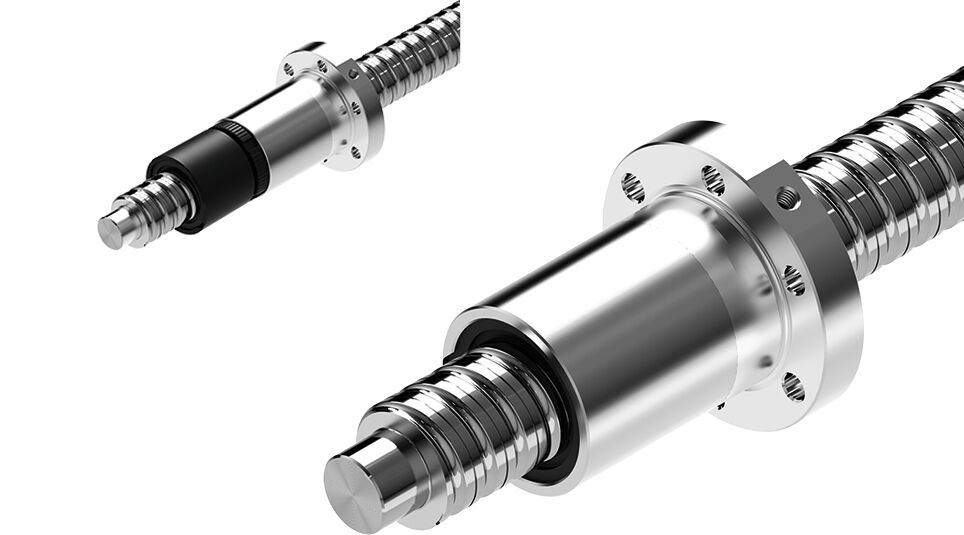

Single nut with flange FEM-E-S with standard seal and standard axial clearance

Nominal diameter d0 = 20

Lead P = 20 (right)

Ball diameter Dw = 3.5

Number of ball track turns i = 2

Rexroth mounting dimensions

With seals

Rexroth connection dimensions

With seals

With left-hand version in some cases

Preload class: C0, C00, C1, C2, C3

Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9

Specifications

Nominal size [mm]	20 x 20R x 3,5 - 2
Series	Standard series
Dynamic load capacity C [N]	10900.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	120.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (section Technical notes) and "Critical speed n<sub>cr</sub>" (section Calculation and examples)
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-S single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB4
Screw drive seal	With seal
Weight [kg]	0.71
Static load capacity C0 [N]	12100.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	19
Dimension D1 g6 [mm]	38
Dimension d2 [mm]	16.7
Dimension D5 [mm]	63
Dimension D6 [mm]	50
Dimension D7 [mm]	6.6
Dimension L [mm]	57
Dimension L3 [mm]	20
Dimension L4 [mm]	18.5
Dimension L5 [mm]	18.5
Dimension Sx [mm]	4
Angle φ [°]	30
