Ball screw assembly nuts Parts

Bosch Rexroth

R150211083

BALL NUT FEM-E-B 20X5RX3-4

Bosch Rexroth

R155211083

BALL NUT FEM-E-B 20X5LX3-4

Bosch Rexroth

R150217063

BALL NUT FEM-E-B 20X20RX3,5-3

Bosch Rexroth

R150214063

BALL NUT FEM-E-B 20X10RX3-4

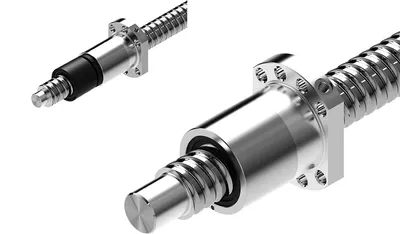

Bosch Rexroth

R150201063

BALL NUT FEM-E-B 16X5RX3-4

Bosch Rexroth

R155201063

BALL NUT FEM-E-B 16X5LX3-4

Bosch Rexroth

R150206063

BALL NUT FEM-E-B 16X16RX3-3

Bosch Rexroth

R150204083

BALL NUT FEM-E-B 16X10RX3-3

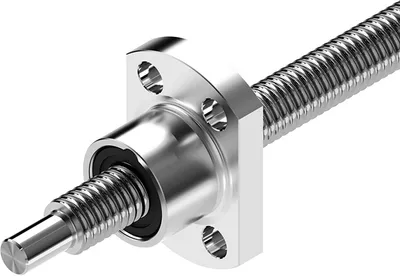

Bosch Rexroth

R153246006

BALL NUT FEM-E-B 12X5RX2-3

Bosch Rexroth

R153249006

BALL NUT FEM-E-B 12X10RX2-2

Bosch Rexroth

R151269032

BALL NUT FED-E-B 63X40RX6,5-3X2

Bosch Rexroth

R151267032

BALL NUT FED-E-B 63X20RX6,5-4X2

Bosch Rexroth

R151259032

BALL NUT FED-E-B 50X40RX6,5-3X2

Bosch Rexroth

R15125A032

BALL NUT FED-E-B 50X30RX6,5-4X2

Bosch Rexroth

R151258032

BALL NUT FED-E-B 50X25RX6,5-3X2

Bosch Rexroth

R151257032

BALL NUT FED-E-B 50X20RX6,5-4X2

Bosch Rexroth

R151249032

BALL NUT FED-E-B 40X40RX6-3X2

Bosch Rexroth

R15124A032

BALL NUT FED-E-B 40X30RX6-4X2

Bosch Rexroth

R151248032

BALL NUT FED-E-B 40X25RX6-4X2

Bosch Rexroth

R151247032

BALL NUT FED-E-B 40X20RX6-4X2

Bosch Rexroth

R151239032

BALL NUT FED-E-B 32X32RX3,969-3X2

Bosch Rexroth

R151237032

BALL NUT FED-E-B 32X20RX3,969-3X2

Bosch Rexroth

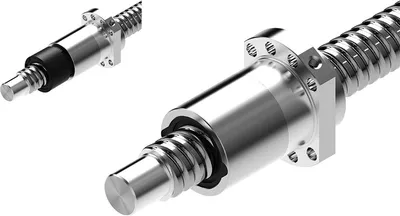

R151228032

BALL NUT FED-E-B 25X25RX3,5-3X2

Bosch Rexroth

R151217032

BALL NUT FED-E-B 20X20RX3,5-3X2

Compare Ball screw assembly nuts

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal size [mm]	Dynamic load capacity C [N]	Weight [kg]	Static load capacity C0 [N]	Dimension L10 [mm]
R150211083	20 x 5R x 3 - 4	17200.0	0.38	21500.0	28
R155211083	20 x 5L x 3 - 4	17200.0	0.38	21500.0	28
R150217063	20 x 20R x 3,5 - 3	16000.0	0.57	18800.0	65
R150214063	20 x 10R x 3 - 4	16900.0	0.48	21300.0	48
R150201063	16 x 5R x 3 - 4	14800.0	0.26	16100.0	26
R155201063	16 x 5L x 3 - 4	14800.0	0.19	16100.0	26
R150206063	16 x 16R x 3 - 3	11200.0	0.26	12000.0	49
R150204083	16 x 10R x 3 - 3	11500.0	0.3	12300.0	33
R153246006	12 x 5R x 2 - 3	4560.0	0.13	5800.0	—
R153249006	12 x 10R x 2 - 2	3000.0	0.14	3600.0	—
R151269032	63 x 40 R x 6,5 - 6	100000.0	5.05	230600.0	115
R151267032	63 x 20 R x 6,5 - 8	130800.0	3.9	292000.0	79
R151259032	50 x 40 R x 6,5 - 6	89300.0	3.46	171500.0	116
R15125A032	50 x 30 R x 6,5 - 8	114500.0	3.05	237700.0	118
R151258032	50 x 25 R x 6,5 - 6	92600.0	2.45	175100.0	75.5
R151257032	50 x 20 R x 6,5 - 8	116500.0	2.79	240000.0	81
R151249032	40 x 40 R x 6 - 6	71500.0	2.46	124500.0	115.5
R15124A032	40 x 30 R x 6 - 8	90400.0	2.15	170300.0	118.5
R151248032	40 x 25 R x 6 - 8	91400.0	2.23	171700.0	100.5
R151247032	40 x 20 R x 6 - 8	95500.0	1.9	171100.0	80
R151239032	32 x 32 R x 3,969 - 6	37900.0	1.41	68000.0	95
R151237032	32 x 20 R x 3,969 - 6	38300.0	1.01	67300.0	60
R151228032	25 x 25 R x 3,5 - 6	28500.0	0.8	47100.0	74
R151217032	20 x 20 R x 3,5 - 6	25700.0	0.84	38100.0	57

Common to all listed parts

Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Screw drive seal	With seal
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
