Ball screw assembly nuts Parts
Compare Ball screw assembly nuts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Dynamic load capacity C [N] | Maximum permissible linear speed vmax (m/min) [m/min] | Weight [kg] | Static load capacity C0 [N] |
|---|---|---|---|---|---|
| R151206055 | 16 x 16R x 3 - 3 | 11200.0 | 96.0 | 0.4 | 12000.0 |

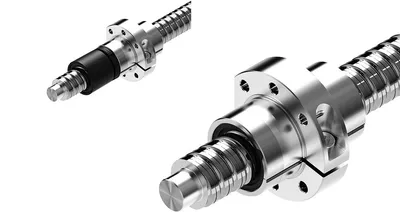

| R151204075 | 16 x 10R x 3 - 3 | 11500.0 | 60.0 | 0.33 | 12300.0 |
| R153223003 | 8 x 2,5R x 1,588 - 3 | 2640.0 | 15.0 | 0.09 | 2800.0 |
| R151274013 | 80 x 10R x 6,5 - 6 | 130100.0 | 19.0 | 4.34 | 291700.0 |
| R151269013 | 63 x 40R x 6,5 - 2 | 44300.0 | 95.0 | 4.83 | 74300.0 |
| R151267013 | 63 x 20R x 6,5 - 3 | 63800.0 | 48.0 | 4.3 | 112100.0 |
| R151264013 | 63 x 10R x 6 - 6 | 106600.0 | 24.0 | 3.07 | 214300.0 |
| R151251013 | 50 x 5R x 3,5 - 5 | 38400.0 | 15.0 | 1.27 | 81300.0 |
| R151259013 | 50 x 40R x 6,5 - 2 | 38500.0 | 120.0 | 4.35 | 55800.0 |
| R151257013 | 50 x 20R x 6,5 - 3 | 57500.0 | 60.0 | 3.96 | 87900.0 |
| R151256013 | 50 x 16R x 6 - 6 | 95300.0 | 48.0 | 2.95 | 166000.0 |

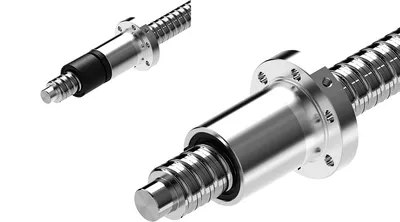

| R151254013 | 50 x 10R x 6 - 6 | 95600.0 | 30.0 | 2.41 | 166500.0 |
| R151241013 | 40 x 5R x 3,5 - 5 | 34900.0 | 19.0 | 0.82 | 64100.0 |
| R155241003 | 40 x 5L x 3,5 - 5 | 34900.0 | 19.0 | 0.1 | 64100.0 |
| R151249013 | 40 x 40R x 6 - 2 | 30600.0 | 150.0 | 3.56 | 40300.0 |
| R151247013 | 40 x 20R x 6 - 3 | 45500.0 | 75.0 | 1.74 | 62800.0 |
| R151244023 | 40 x 10R x 6 - 6 | 86500.0 | 38.0 | 1.8 | 132200.0 |
| R151244013 | 40 x 10R x 6 - 4 | 60000.0 | 38.0 | 1.52 | 86400.0 |
| R155244003 | 40 x 10L x 6 - 4 | 60000.0 | 38.0 | 1.56 | 86400.0 |
| R151231013 | 32 x 5R x 3,5 - 4 | 25900.0 | 23.0 | 0.64 | 40000.0 |
| R155231003 | 32 x 5L x 3,5 - 4 | 25900.0 | 23.0 | 0.67 | 40000.0 |
| R151239013 | 32 x 32R x 3,969 - 2 | 16100.0 | 150.0 | 1.66 | 22000.0 |
| R151237013 | 32 x 20R x 3,969 - 2 | 16200.0 | 94.0 | 1.14 | 21800.0 |
| R151234013 | 32 x 10R x 3,969 - 5 | 38000.0 | 47.0 | 0.84 | 58300.0 |
Common to all listed parts
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Screw drive seal | With seal |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
