Ball screw assembly nuts Parts

Bosch Rexroth

R151274075

BALL NUT SEM-E-C 80X10RX6,5-6

Bosch Rexroth

R151269055

BALL NUT SEM-E-C 63X40RX6,5-3

Bosch Rexroth

R151267076

BALL NUT SEM-E-C 63X20RX6,5-5

Bosch Rexroth

R151264075

BALL NUT SEM-E-C 63X10RX6-6

Bosch Rexroth

R151251075

BALL NUT SEM-E-C 50X5RX3,5-5

Bosch Rexroth

R151259055

BALL NUT SEM-E-C 50X40RX6,5-3

Bosch Rexroth

R151257076

BALL NUT SEM-E-C 50X20RX6,5-5

Bosch Rexroth

R151255055

BALL NUT SEM-E-C 50X12RX6-6

Bosch Rexroth

R151254075

BALL NUT SEM-E-C 50X10RX6-6

Bosch Rexroth

R151241075

BALL NUT SEM-E-C 40X5RX3,5-5

Bosch Rexroth

R151249055

BALL NUT SEM-E-C 40X40RX6-3

Bosch Rexroth

R151247075

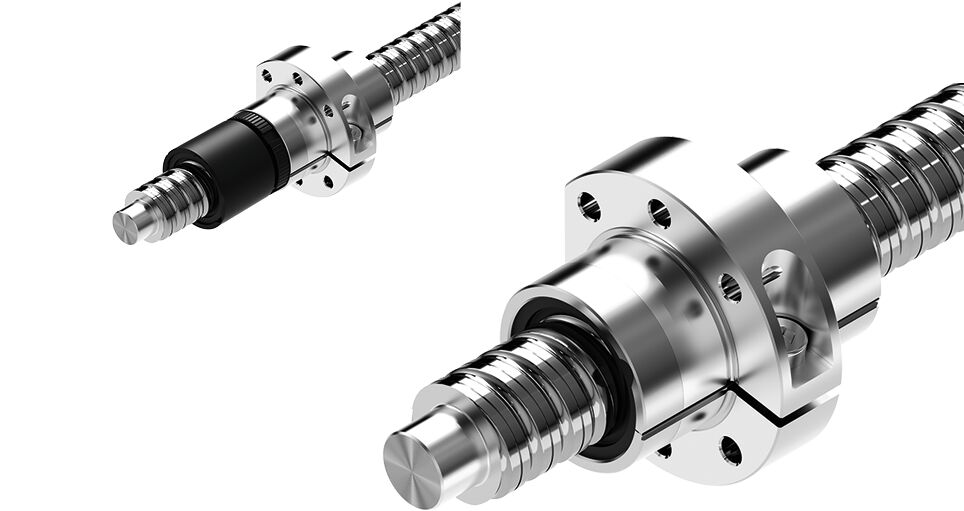

BALL NUT SEM-E-C 40X20RX6-3

Bosch Rexroth

R151245055

BALL NUT SEM-E-C 40X12RX6-4

Bosch Rexroth

R151244075

BALL NUT SEM-E-C 40X10RX6-4

Bosch Rexroth

R151231075

BALL NUT SEM-E-C 32X5RX3,5-4

Bosch Rexroth

R151239055

BALL NUT SEM-E-C 32X32RX3,969-3

Bosch Rexroth

R151237055

BALL NUT SEM-E-C 32X20RX3,969-3

Bosch Rexroth

R151234075

BALL NUT SEM-E-C 32X10RX3,969-5

Bosch Rexroth

R151221075

BALL NUT SEM-E-C 25X5RX3-4

Bosch Rexroth

R151228055

BALL NUT SEM-E-C 25X25RX3,5-3

Bosch Rexroth

R151224075

BALL NUT SEM-E-C 25X10RX3-4

Bosch Rexroth

R151211075

BALL NUT SEM-E-C 20X5RX3-4

Bosch Rexroth

R151217055

BALL NUT SEM-E-C 20X20RX3,5-3

Bosch Rexroth

R151201055

BALL NUT SEM-E-C 16X5RX3-4

Compare Ball screw assembly nuts

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal size [mm]	Dynamic load capacity C [N]	Weight [kg]	Static load capacity C0 [N]	Dimension L [mm]
R151274075	80 x 10R x 6,5 - 6	130100.0	3.75	291700.0	95
R151269055	63 x 40R x 6,5 - 3	64100.0	5.8	114100.0	149
R151267076	63 x 20R x 6,5 - 5	100700.0	5.32	190300.0	132
R151264075	63 x 10R x 6 - 6	106600.0	3.4	214300.0	90
R151251075	50 x 5R x 3,5 - 5	38400.0	1.67	81300.0	54
R151259055	50 x 40R x 6,5 - 3	55800.0	3.83	85900.0	149
R151257076	50 x 20R x 6,5 - 5	90800.0	3.34	149700.0	132
R151255055	50 x 12R x 6 - 6	95500.0	2.8	166400.0	105
R151254075	50 x 10R x 6 - 6	95600.0	2.71	166500.0	90
R151241075	40 x 5R x 3,5 - 5	34900.0	1.39	64100.0	54
R151249055	40 x 40R x 6 - 3	44400.0	2.94	62300.0	142
R151247075	40 x 20R x 6 - 3	45500.0	1.77	62800.0	88
R151245055	40 x 12R x 6 - 4	59900.0	0.88	86200.0	75
R151244075	40 x 10R x 6 - 4	60000.0	1.58	86400.0	70
R151231075	32 x 5R x 3,5 - 4	25900.0	0.85	40000.0	48
R151239055	32 x 32R x 3,969 - 3	23400.0	1.5	34000.0	120
R151237055	32 x 20R x 3,969 - 3	23600.0	1.14	33700.0	84
R151234075	32 x 10R x 3,969 - 5	38000.0	1.08	58300.0	77
R151221075	25 x 5R x 3 - 4	19100.0	0.51	27200.0	45
R151228055	25 x 25R x 3,5 - 3	17600.0	0.9	23300.0	95
R151224075	25 x 10R x 3 - 4	18800.0	0.63	27000.0	64
R151211075	20 x 5R x 3 - 4	17200.0	0.4	21500.0	40
R151217055	20 x 20R x 3,5 - 3	16000.0	0.67	18800.0	77
R151201055	16 x 5R x 3 - 4	14800.0	0.29	16100.0	38

Common to all listed parts

Series	Standard series
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	SEM-E-C zero-clearance adjustable single nut
Screw drive seal	With seal
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
