Bosch Rexroth R150274084

BALL NUT FEM-E-B 80X10RX6,5-6

MPN: R150274084
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R150274084?

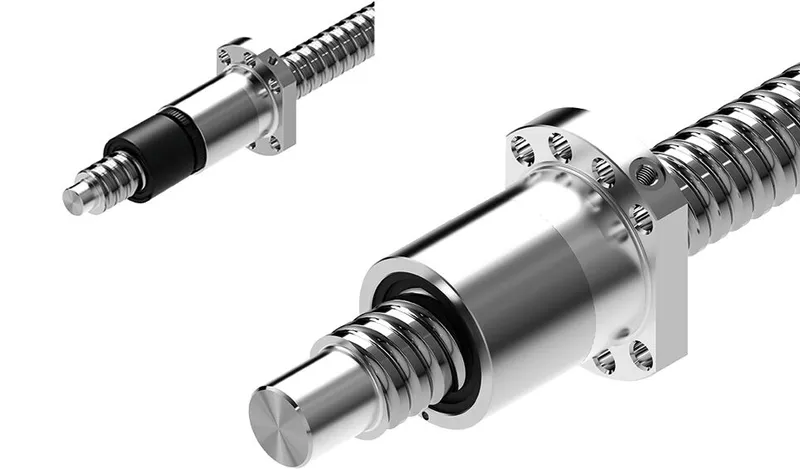

Single nut with flange FEM-E-B with standard seal and standard axial clearance

Nominal diameter d0 = 80

Lead P = 10 (right)

Ball diameter Dw = 6.5

Number of ball track turns i = 6

Mounting dimensions similar to DIN 69051, Part 5 flange type B.

With seals

With left-hand version in some cases

Preload class: C0, C00, C1, C2, C3

Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9

Specifications

Nominal size [mm]	80 x 10R x 6,5 - 6
Series	Standard series
Dynamic load capacity C [N]	130100.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	19.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (section Technical notes) and "Critical speed n<sub>cr</sub>" (section Calculation and examples)
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-B single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB1
Screw drive seal	With seal
Weight [kg]	3.4
Static load capacity C0 [N]	291700.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	78
Dimension D1 g6 [mm]	105
Dimension d2 [mm]	73.3
Dimension D5 [mm]	145
Dimension D6 [mm]	125
Dimension D7 [mm]	13.5
Dimension L [mm]	95
Dimension L10 [mm]	73
Dimension L14 [mm]	100
Dimension L3 [mm]	22
Dimension L4 [mm]	16
Dimension Sx [mm]	5
Diameter d0 [mm]	80
