Home / Linear Motion Technology / Screw drives / Ball screw assemblies / Ball screw assembly nuts

Ball screw assembly nuts Parts

Bosch Rexroth

R151241014

BALL NUT SEM-E-S 40X5RX3,5-5

Bosch Rexroth

R155241004

BALL NUT SEM-E-S 40X5LX3,5-5

Bosch Rexroth

R151249014

BALL NUT SEM-E-S 40X40RX6-2

Bosch Rexroth

R151247014

BALL NUT SEM-E-S 40X20RX6-3

Bosch Rexroth

R151244014

BALL NUT SEM-E-S 40X10RX6-4

Bosch Rexroth

R155244004

BALL NUT SEM-E-S 40X10LX6-4

Bosch Rexroth

R151231014

BALL NUT SEM-E-S 32X5RX3,5-4

Bosch Rexroth

R155231004

BALL NUT SEM-E-S 32X5LX3,5-4

Bosch Rexroth

R151239014

BALL NUT SEM-E-S 32X32RX3,969-2

Bosch Rexroth

R151237014

BALL NUT SEM-E-S 32X20RX3,969-2

Bosch Rexroth

R151234014

BALL NUT SEM-E-S 32X10RX3,969-5

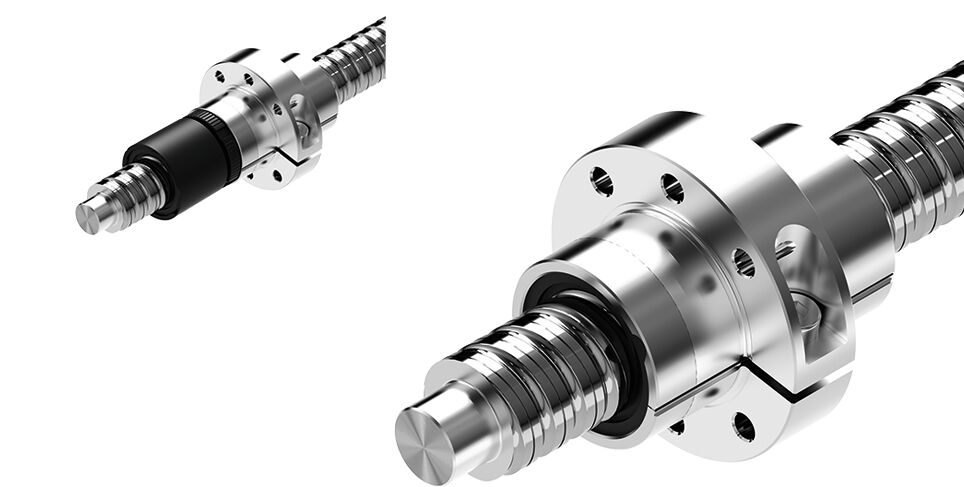

Bosch Rexroth

R151221014

BALL NUT SEM-E-S 25X5RX3-4

Bosch Rexroth

R155221014

BALL NUT SEM-E-S 25X5LX3-4

Bosch Rexroth

R151228014

BALL NUT SEM-E-S 25X25RX3,5-2

Bosch Rexroth

R151224014

BALL NUT SEM-E-S 25X10RX3-4

Bosch Rexroth

R151211014

BALL NUT SEM-E-S 20X5RX3-4

Bosch Rexroth

R155211014

BALL NUT SEM-E-S 20X5LX3-4

Bosch Rexroth

R151217014

BALL NUT SEM-E-S 20X20RX3,5-2

Bosch Rexroth

R151201024

BALL NUT SEM-E-S 16X5RX3-4

Bosch Rexroth

R155201004

BALL NUT SEM-E-S 16X5LX3-4

Bosch Rexroth

R151206014

BALL NUT SEM-E-S 16X16RX3-2

Bosch Rexroth

R151204014

BALL NUT SEM-E-S 16X10RX3-3

Bosch Rexroth

R153246024

BALL NUT SEM-E-S 12X5RX2-3

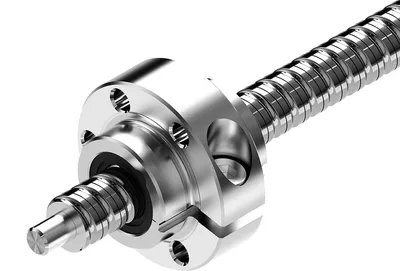

Bosch Rexroth

R153249014

BALL NUT SEM-E-S 12X10RX2-2

Compare Ball screw assembly nuts

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal size [mm]	Dynamic load capacity C [N]	Weight [kg]	Static load capacity C0 [N]	Dimension L10 [mm]
R151241014	40 x 5R x 3,5 - 5	34900.0	0.89	64100.0	17
R155241004	40 x 5L x 3,5 - 5	34900.0	0.95	64100.0	17
R151249014	40 x 40R x 6 - 2	30600.0	3.85	40300.0	31
R151247014	40 x 20R x 6 - 3	45500.0	2	62800.0	31.5
R151244014	40 x 10R x 6 - 4	60000.0	1.8	86400.0	22.5
R155244004	40 x 10L x 6 - 4	60000.0	1.79	86400.0	22.5
R151231014	32 x 5R x 3,5 - 4	25900.0	0.74	40000.0	14
R155231004	32 x 5L x 3,5 - 4	25900.0	0.76	40000.0	14
R151239014	32 x 32R x 3,969 - 2	16100.0	1.62	22000.0	34
R151237014	32 x 20R x 3,969 - 2	16200.0	1.22	21800.0	22
R151234014	32 x 10R x 3,969 - 5	38000.0	0.96	58300.0	28.5
R151221014	25 x 5R x 3 - 4	19100.0	0.55	27200.0	12.5
R155221014	25 x 5L x 3 - 4	19100.0	0.53	27200.0	12.5
R151228014	25 x 25R x 3,5 - 2	12100.0	1.22	15100.0	22.5
R151224014	25 x 10R x 3 - 4	18800.0	0.63	27000.0	22
R151211014	20 x 5R x 3 - 4	17200.0	0.4	21500.0	12.5
R155211014	20 x 5L x 3 - 4	17200.0	0.4	21500.0	12.5
R151217014	20 x 20R x 3,5 - 2	10900.0	0.68	12100.0	18.5
R151201024	16 x 5R x 3 - 4	14800.0	0.34	16100.0	11.5
R155201004	16 x 5L x 3 - 4	14800.0	0.1	16100.0	11.5
R151206014	16 x 16R x 3 - 2	7560.0	0.49	7600.0	15
R151204014	16 x 10R x 3 - 3	11500.0	0.34	12300.0	15
R153246024	12 x 5R x 2 - 3	4560.0	0.18	5800.0	8
R153249014	12 x 10R x 2 - 2	3000.0	0.2	3600.0	10.5

Common to all listed parts

Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Nut type	SEM-E-S zero-clearance adjustable single nut
Screw drive seal	With seal
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
