Bosch Rexroth R151237055

BALL NUT SEM-E-C 32X20RX3,969-3

MPN: R151237055
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R151237055?

Adjustable-preload single nut SEM-E-C with standard seal and standard axial clearance

Nominal diameter d0 = 32

Lead P = 20 (right)

Ball diameter Dw = 3.969

Number of ball track turns i = 3

Mounting dimensions similar to DIN 69051, Part 5 flange type C

With seals

Adjustable preload

Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Specifications

Nominal size [mm]	32 x 20R x 3,969 - 3
Series	Standard series
Dynamic load capacity C [N]	23600.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	94.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes")
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	SEM-E-C zero-clearance adjustable single nut
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB2
Screw drive seal	With seal
Weight [kg]	1.14
Static load capacity C0 [N]	33700.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

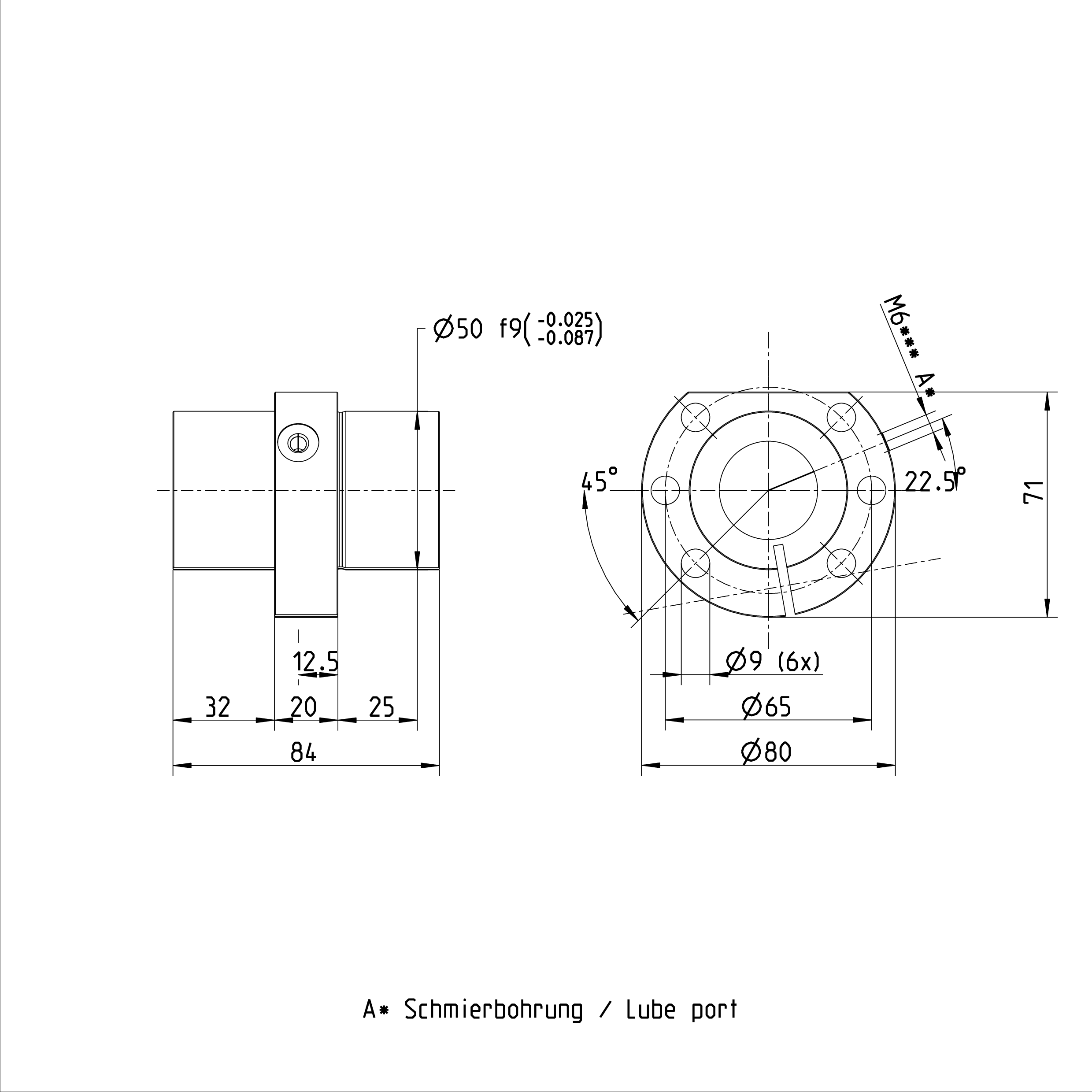

Dimension d1 [mm]	31
Dimension D1 f9 [mm]	50
Dimension D1 max [mm]	49.973
Dimension D1 min [mm]	49.945
Dimension d2 [mm]	27.9
Dimension D5 [mm]	80
Dimension D6 [mm]	65
Dimension D7 [mm]	9
Dimension L [mm]	84
Dimension L10 [mm]	32
Dimension L3 [mm]	20
Dimension L4 [mm]	25
Dimension L5 [mm]	32
Dimension L8 [mm]	12.5
Dimension L9 [mm]	71
Dimension Sx [mm]	4
